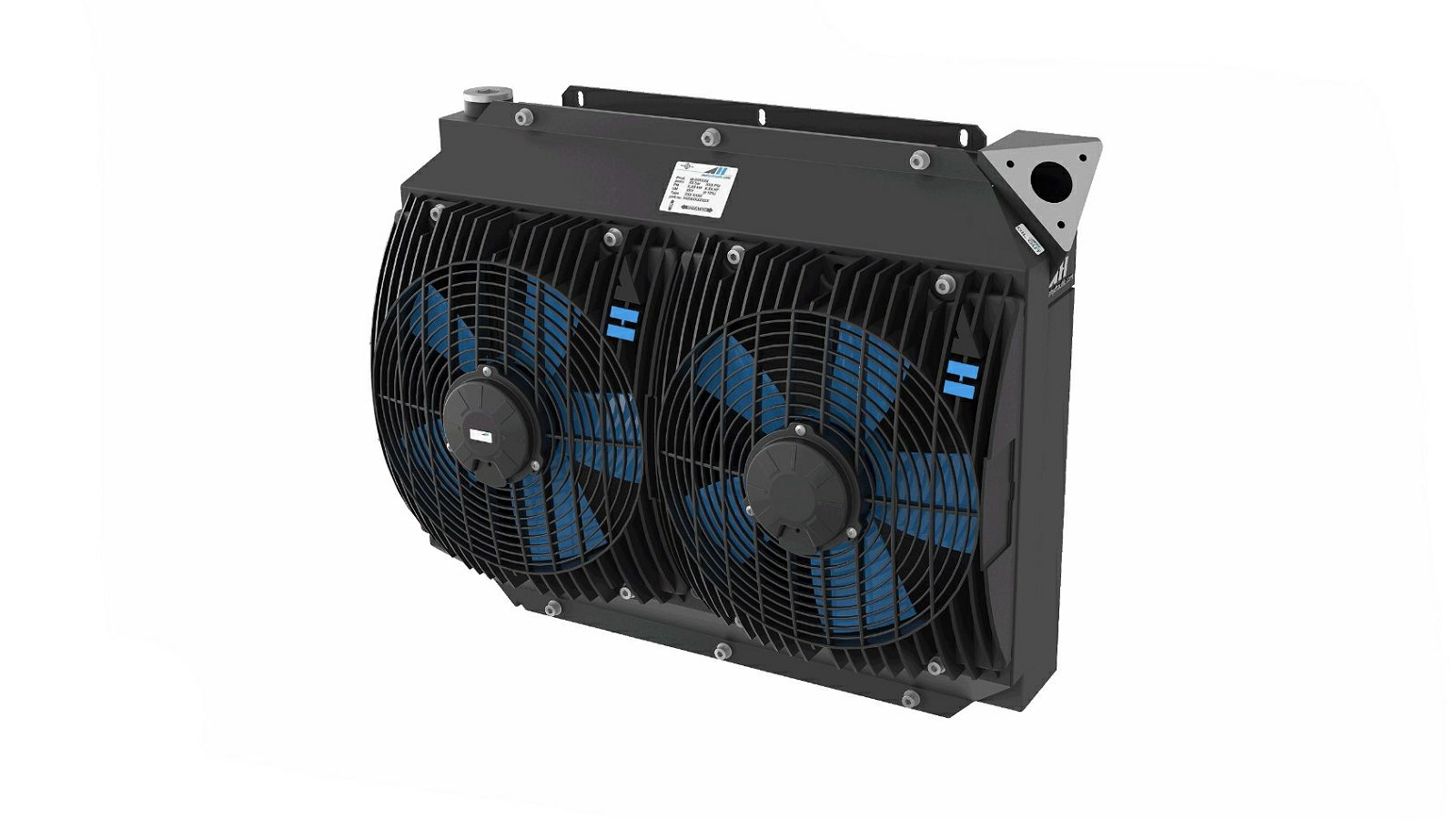

HLADNJAK ULJA 0257BP, 25-300l/min, 24V - ASA

ASA0257AD02BP
ASA0257AD04
61100172600

-----------

The integration of a bypass system in the cooling element avoids overstressing the cooler during cold starts (high back pressure due to extremely viscous oil).
This design is also used to divert larger amounts of oil in the case of large return quantities such as those that occur when retracting differential hydraulic cylinders. spring-loaded valve in ball design opening pressure: 2 bar

Brand
asahydraulik

Connection input
flange

Connection output
flange

Connection sensor (inches)
1/2 internal thread

Depth (mm)
264

Flow quantity (l/min)
25-300

Height (mm)
555

Material cooler element
aluminum

Specific cooling capacity (kW/°C)
0,53-0,67

Type
0257BP

Voltage fan motor (V)
24

Weight (kg)
30

Width (mm)
690
