HLADNJAK ULJA 0176, 25-250l/min, 24V, GT - ASA

ASA0176AD02GT
ASA0176AD02
61100097200

------------

The GT cooler is a pre-assembled cooler package consisting of a vibration damped oil air cooler with DC fan drive, protective housing, mounted rail connectors and pre-wired fan control.
The fan control varies the fan speed according to the oil temperature to minimize noise and maximize fan life.
The protective housing is a rugged steel construction designed specifically for mobile applications.scope of delivery: oil cooler with protective housing, temperature switch, fan control and connections

Brand
asahydraulik

Connection input
flange

Connection output
flange

Connection sensor (inches)
1/2 internal thread

Flow quantity (l/min)
25-250

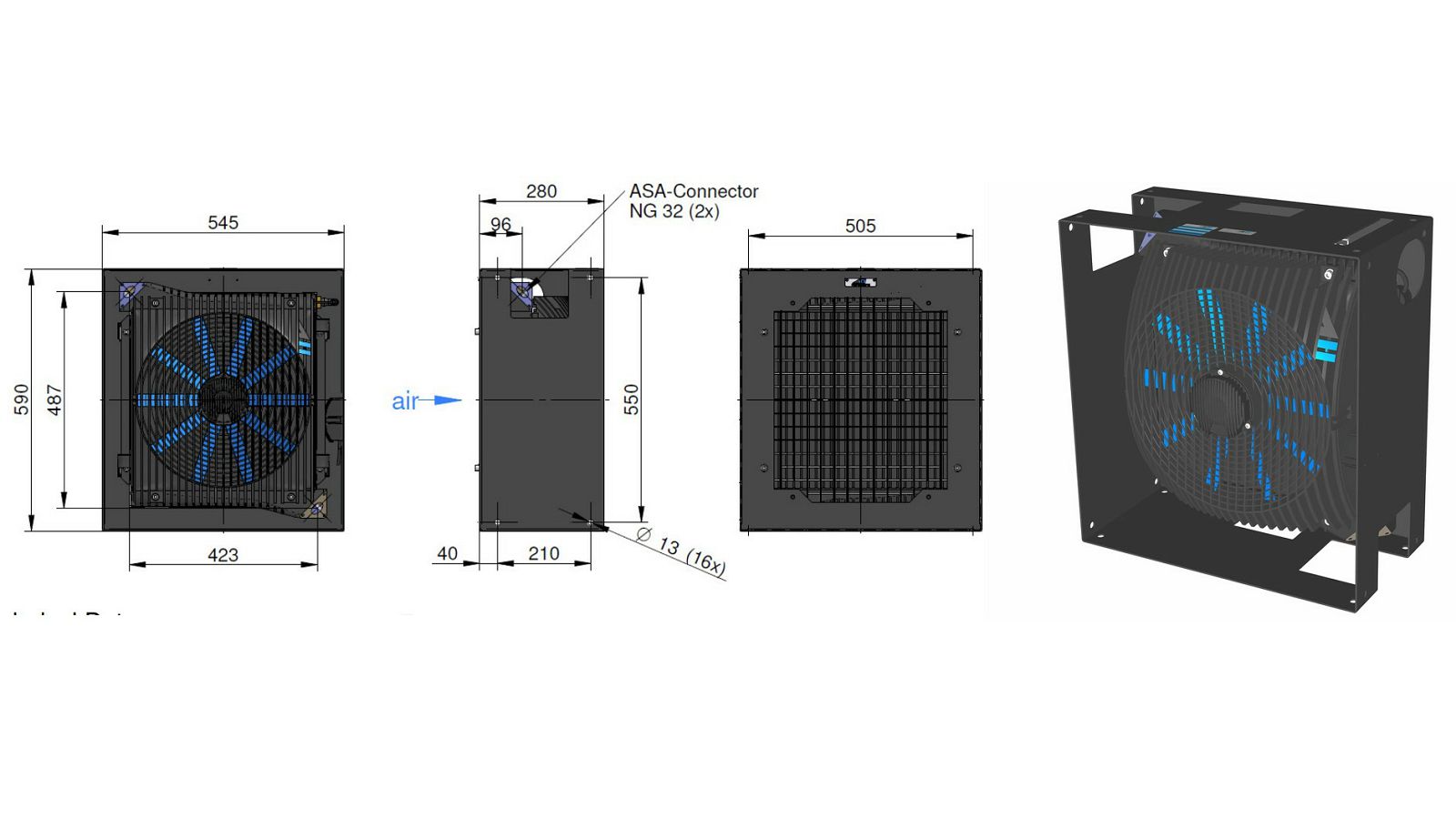

Depth (mm)
280

Height (mm)
590

Width (mm)
545

Material cooler element
aluminum

Specific cooling capacity (kW/°C)
0,20-0,40

Type
0176

Voltage fan motor (V)
24

Weight (kg)
34,2
