ASA0176AD02
61100103200
------------

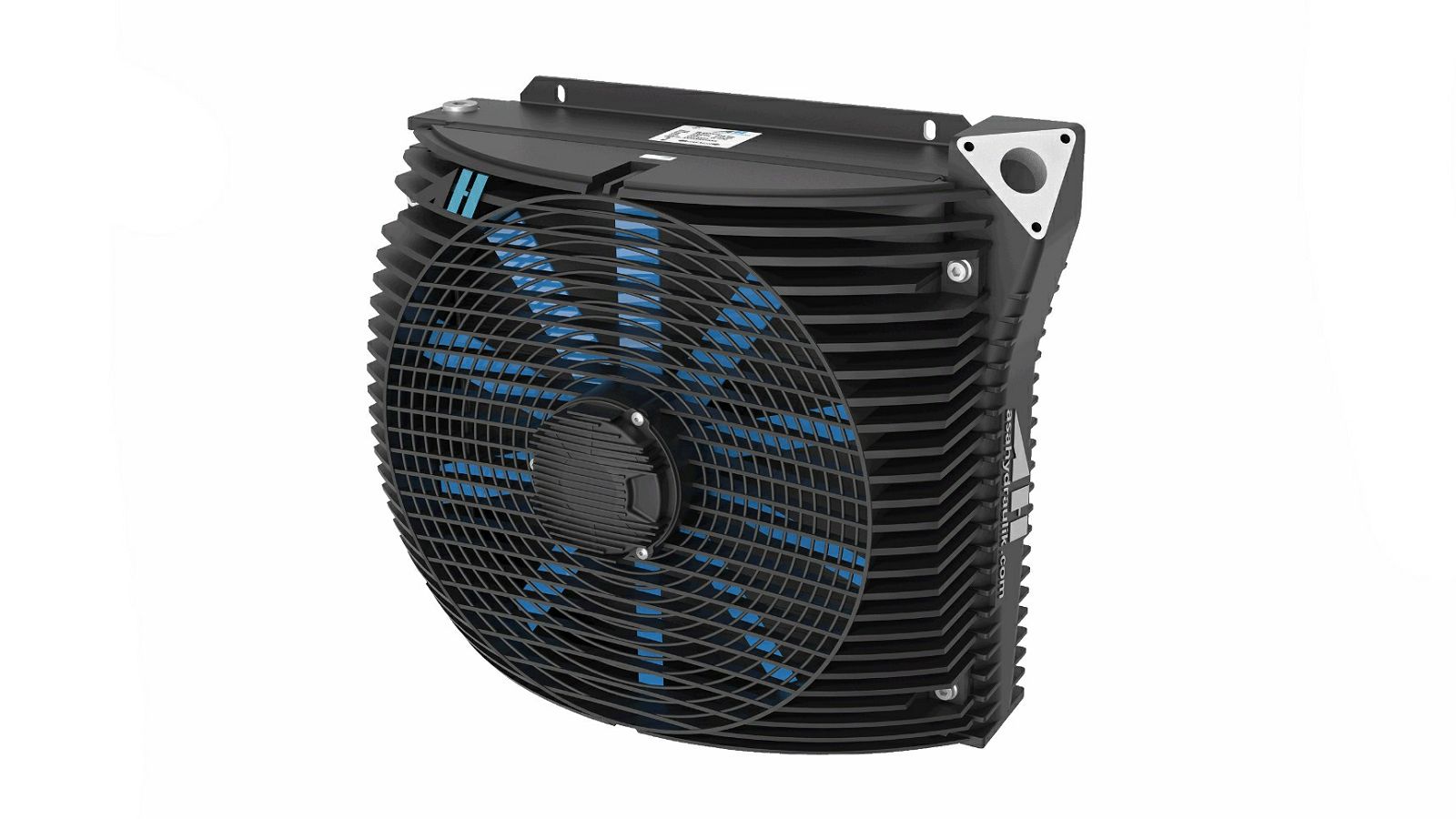

cooling for the hydraulic system Modern control and regulation via temperature sensors ensures an optimum oil temperature.
This protects the system and allows longer and more efficient use of the machines e.g. tractors, loader cranes, wheel loaders, harvesters etc.
Brand
asahydraulik
Connection input
flange
Connection output
flange
Connection sensor (inches)
1/2 internal thread
Depth (mm)
222
Height (mm)
467
Width (mm)
530
Material cooler element
aluminum
Flow quantity (l/min)
25-250
Specific cooling capacity (kW/°C)
0,20-0,40
Type
0176
Voltage fan motor (V)
24
Weight (kg)
19,1
