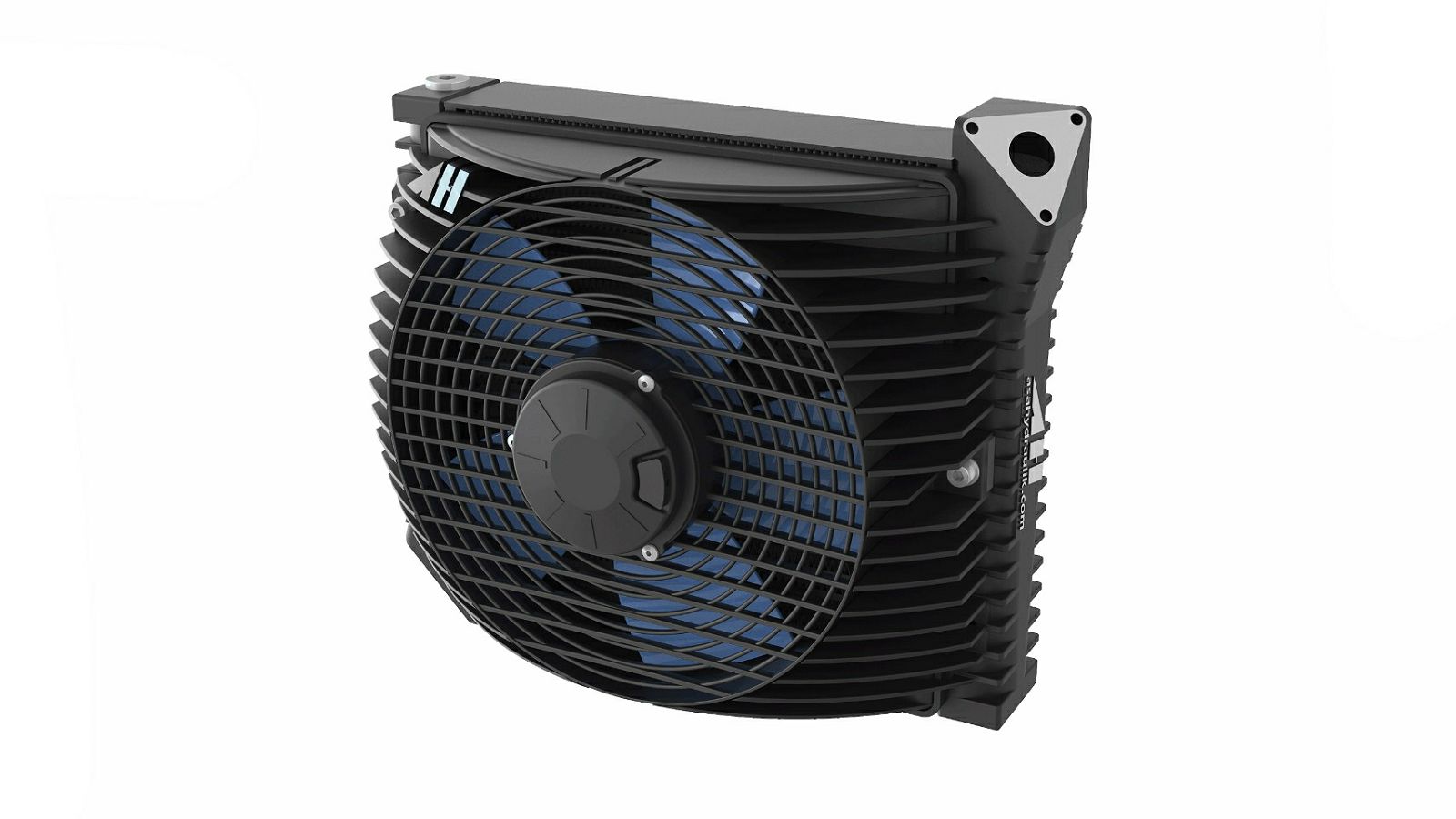

HLADNJAK ULJA 0115BP, 20-200l/min, 24V, PALFINGER, HIAB - ASA

ASA0115AD02BP
Palfinger BKA54
Hiab 9866094
61100172200

-----------

The integration of a bypass system in the cooling element avoids overstressing the cooler during cold starts (high back pressure due to extremely viscous oil).
This design is also used to divert larger amounts of oil in the case of large return quantities such as those that occur when retracting differential hydraulic cylinders. spring-loaded valve in ball design opening pressure: 2 bar

Brand
asahydraulik

Connection input
flange

Connection output
flange

Connection sensor (inches)
1/2 internal thread

Depth (mm)
182

Width (mm)
430

Height (mm)
380

Flow quantity (l/min)
20-200

Material cooler element
aluminum

Specific cooling capacity (kW/°C)
0,15-0,25

Type
0115BP

Voltage fan motor (V)
24

Weight (kg)
12,3
