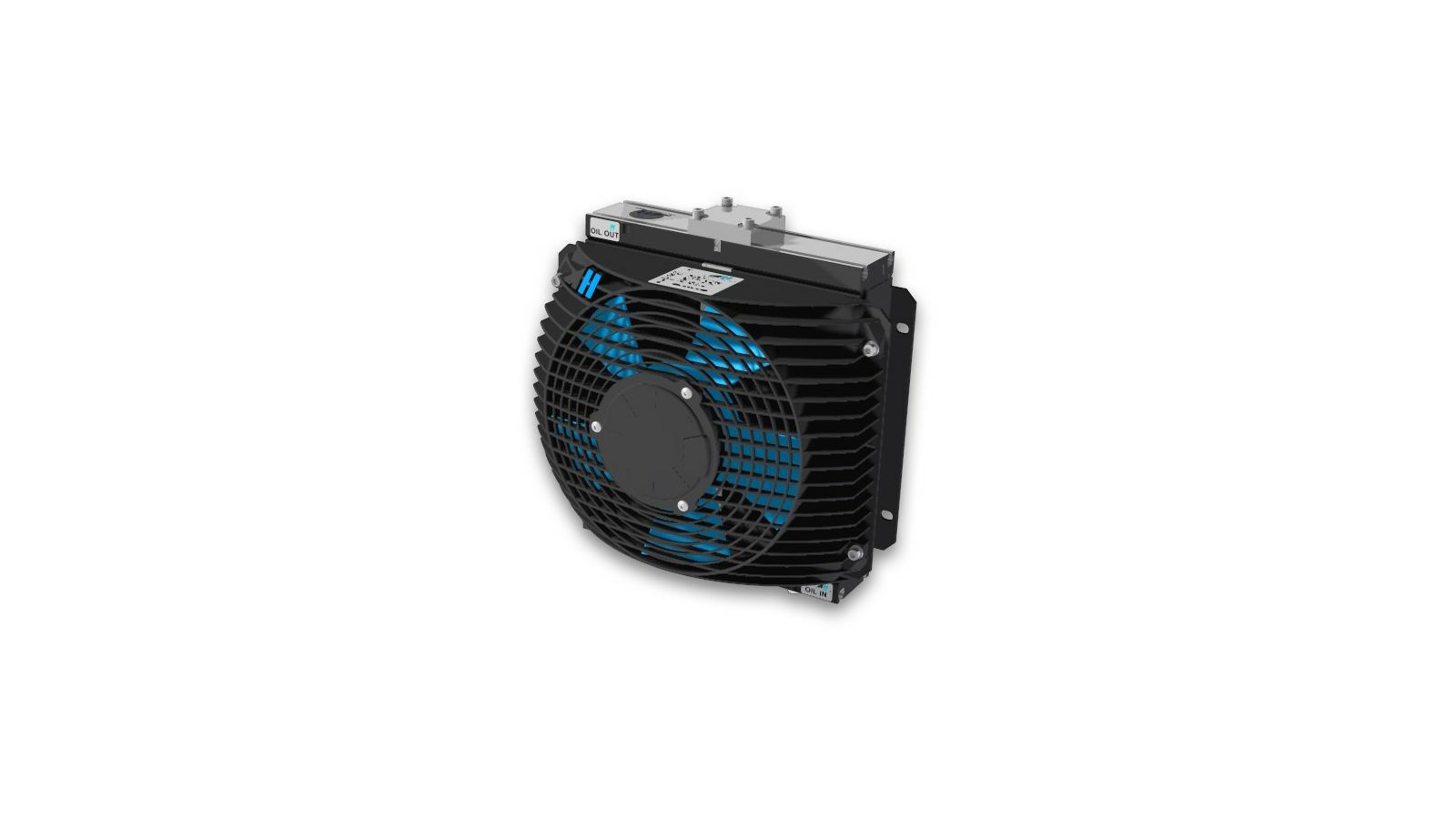

HLADNJAK TT11 Rail, 20-180l/min, 24V, ULJA 240X465X410 - ASA

ASATT11RD02BP
61100378300

-------------

The integration of a bypass system in the cooling element avoids overstressing the cooler during cold starts (high back pressure due to extremely viscous oil).
This design is also used to divert larger amounts of oil in the case of large return quantities such as those that occur when retracting differential hydraulic cylinders. spring-loaded valve in ball design opening pressure: 2 bar

Brand
asahydraulik

Connection input
flange

Connection output
flange

Flow quantity (l/min)
20-180

Depth (mm)
240

Height (mm)
465

Width (mm)
410

Info 1
with bypass

Material cooler element
aluminum

Specific cooling capacity (kW/°C)
0,15-0,25

Type
TT11 Rail

Voltage fan motor (V)
24

Weight (kg)
22,817
