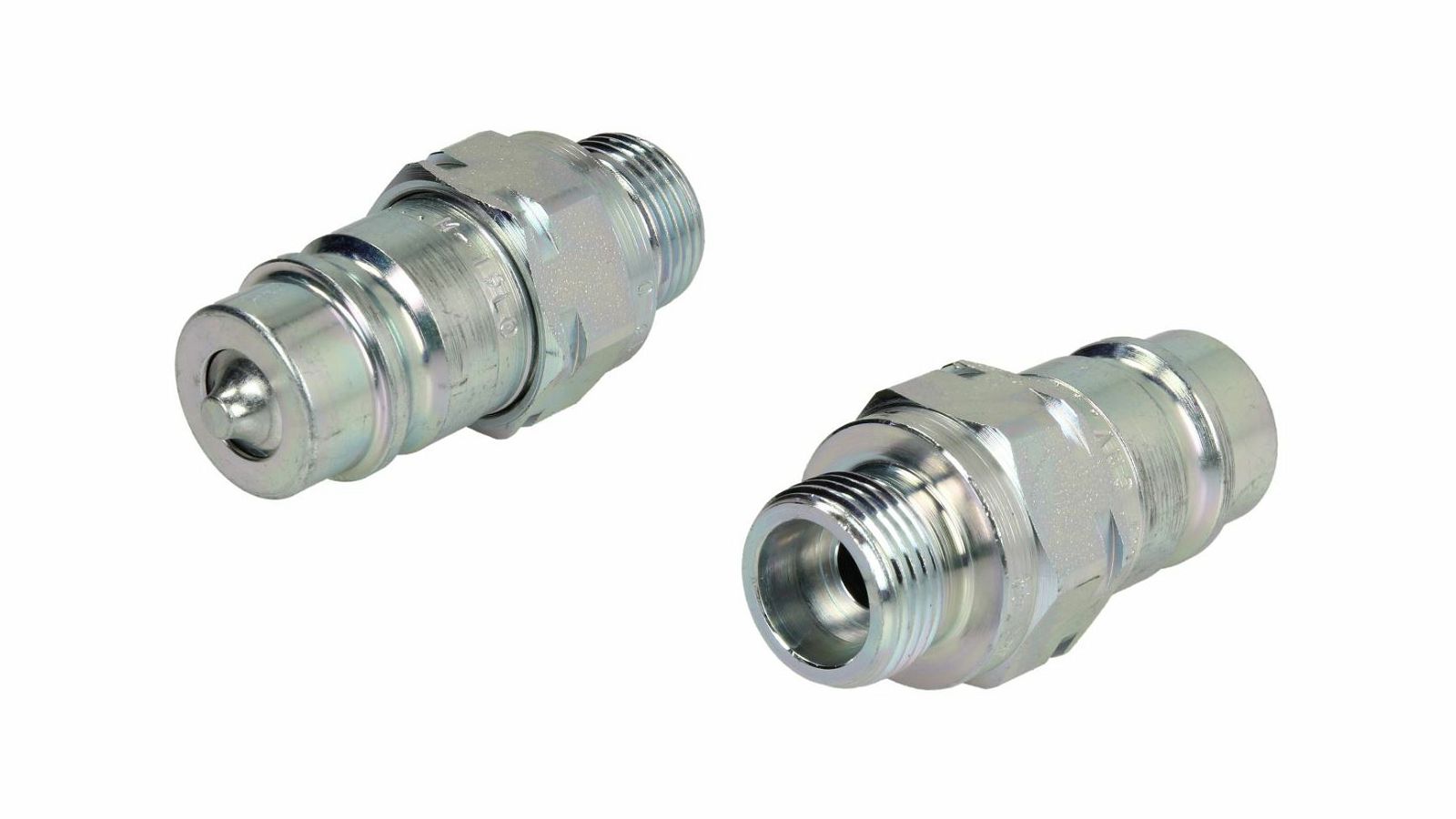

HIDRULIČKA SPOJKA, PUSH IN KONEKTOR, 1/2cola, dimenzija navoja M20/1,5mm iSO norma: 7241-A - FASTER

CNV0832015M
CNV083/2015M
62300195900

------------

Total length (mm)
58

Thread external B metric
M 20x1,5

Width across flats body (mm)
27

FI external plug (mm)
20,5

System compatibility
ISO 7241-1-A

Coupling situation
cannot be coupled under pressure

Type
CNV

Production series
heavy

Weight (kg)
0,108

Surface
Cr6-free galvanized

Operating pressure (bar)
250

Coupling type
taper sealing

Connection type
tube connection

For FI tube B (mm)
12

Tube AD series
12 S

Material
steel

Brand
Faster

Manufactured size
3

Sealing
24° inner cone

Nominal diameter (mm)
12,5
