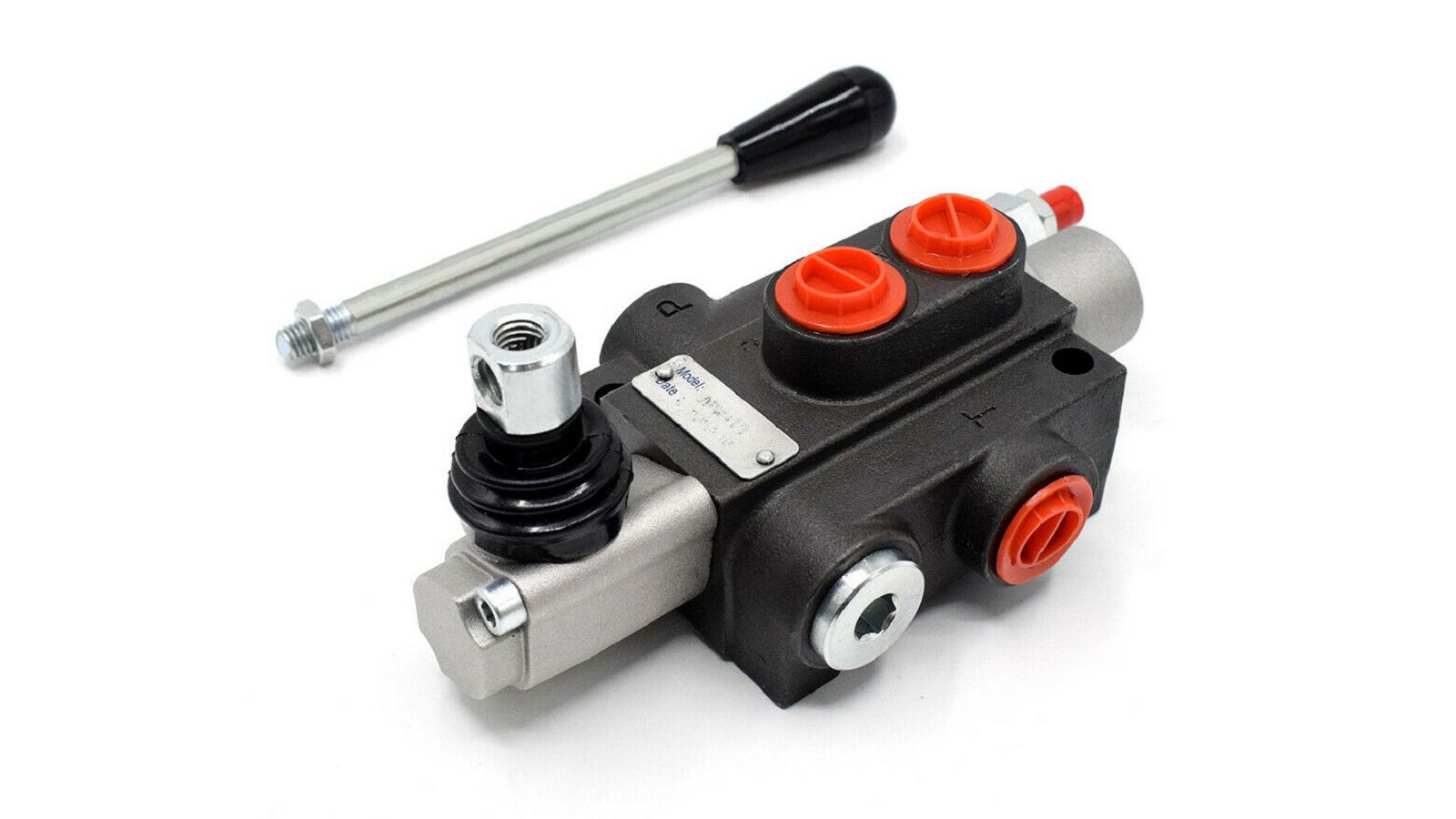

HIDRAULIČNI RAZDJELNIK S 1 FUNKCIJOM, MONOBLOCK, 40L/min, 250Bar

ML/1-GK(250)D4
DM041BXO
62000005600

-----------

Brand
other

Connection pressure input (inches)
G 3/8 internal thread

Connection pressure output A (inches)
G 3/8 internal thread

Connection pressure output B (inches)
G 3/8 internal thread

Connection return flow (inches)
G 3/8 internal thread

Function 1
single action

Max. flow rate (l/min)
40

Max. operating pressure (bar)
250

Number of functional elements
1

Pressure limiting valve (bar)
180 standard

Pressure oil pipe
without

Status zero position
P open at T A closed

Switch position 1
detent at A

Weight (kg)
2,44
