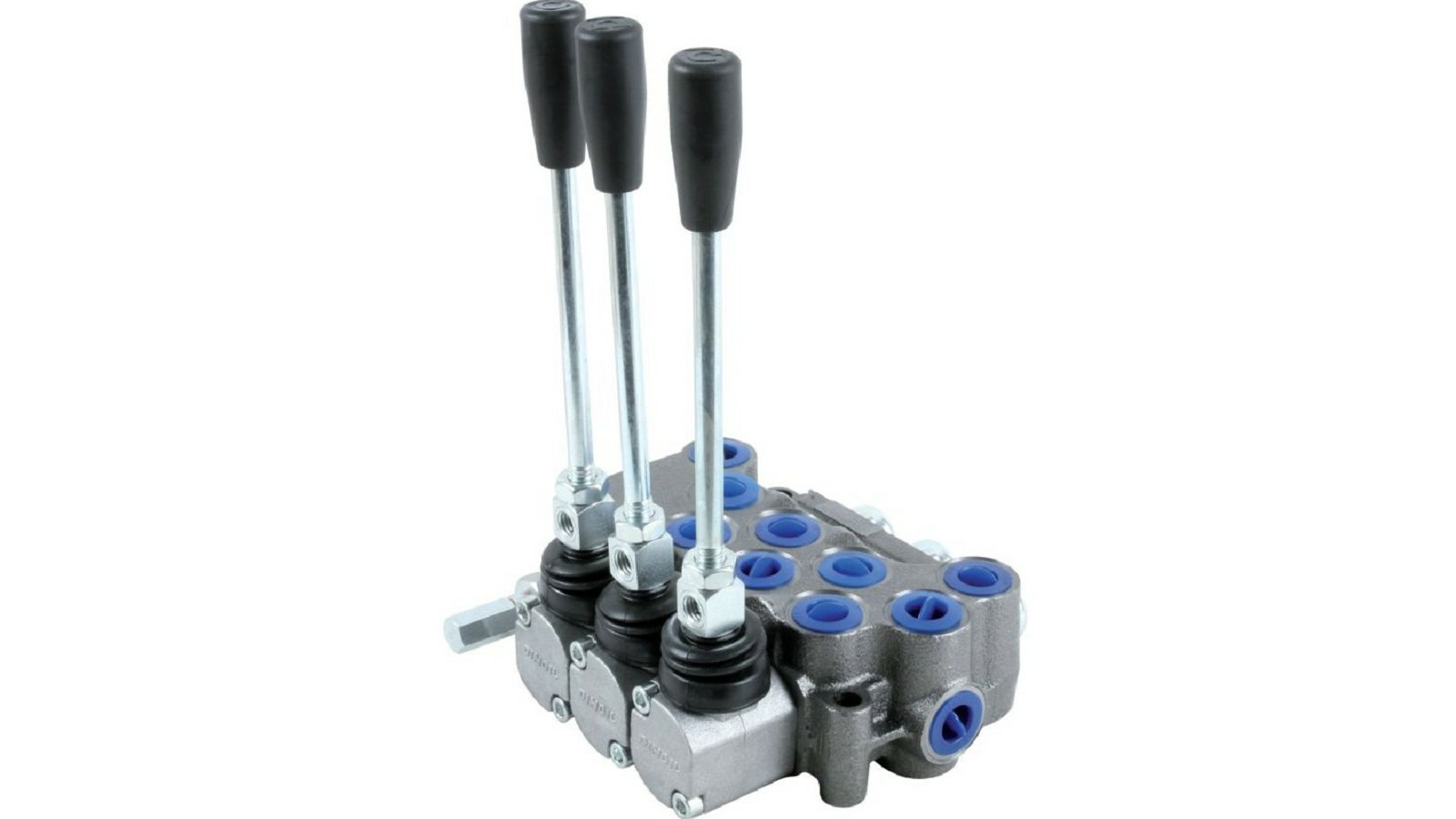

HIDRAULIČNI RAZDJELNIK, MONOBLOCK VENTIL 40L/min, 3 FUNKCIJE

Name: HIDRAULIČNI RAZDJELNIK, MONOBLOCK VENTIL 40L/min, 3 FUNKCIJE
Brand: BONDIOLI & PAVESI
SKU: 149681
Availability: InStock

BONDIOLI & PAVESI

Šifra: 149681

Kataloški: ML3.GZ.A1.A1.A1

BONDIOLI & PAVESI

Jedinica mjere: Kom

Proizvođač: BONDIOLI & PAVESI

Dostupnost artikla: 0 Kom / dobavljiv po narudžbi (5-10 radnih dana)

ML3.GZ.A1.A1.A1
ML/3 GZ A1A1A1
ML3-GZ-A1A1A1
ML/3GZA1A1A1
62000027700

-----------

Connection pressure input (inches)
G 3/8 internal thread

Connection pressure output A (inches)
G 3/8 internal thread

Connection pressure output B (inches)
G 3/8 internal thread

Connection return flow (inches)
G 3/8 internal thread

Function 1
dual action

Function 2
dual action

Function 3
dual action

Max. flow rate (l/min)
40

Max. operating pressure (bar)
250

Nominal flow (l/min)
40

Number of functional elements
3

Pressure limiting valve (bar)
180 standard

Pressure oil pipe
upgradable

Status zero position
P open at T A and B closed

Switch position 1
spring centered

Switch position 2
spring centered

Switch position 3
spring centered

Weight (kg)
5,3
