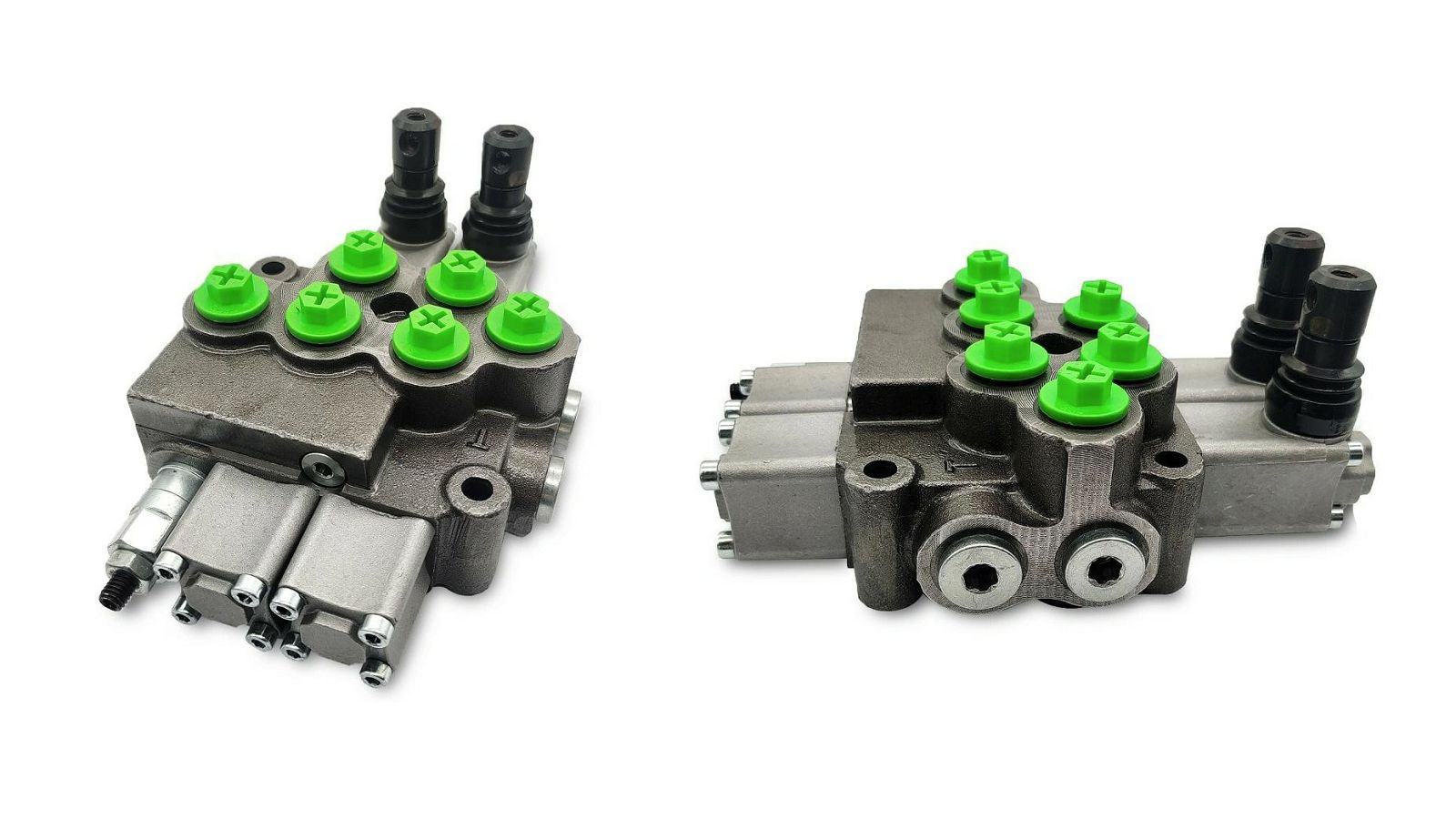

HIDRAULIČNI RAZDJELNIK, MONOBLOCK, 45L/min, 350Bar, 2 FUNKCIJE

61100471600

-----------

The control piston is equipped with a fine control groove.
This enables precise control even with a small slider valve opening.

Brand
HYDROCONTROL

Connection pressure input (inches)
G 3/8 internal thread

Connection pressure output A (inches)
G 3/8 internal thread

Connection pressure output B (inches)
G 3/8 internal thread

Connection return flow (inches)
G 3/8 internal thread

Function 1
single action

Function 2
dual action
floater position

Max. flow rate (l/min)
45

Max. operating pressure (bar)
350

Number of functional elements
2

Pressure limiting valve (bar)
180 standard

Pressure oil pipe
upgradable

Status zero position
P open at T A and B closed

Switch position 1
spring centered

Switch position 2
detent in floating position

Weight (kg)
4,5
