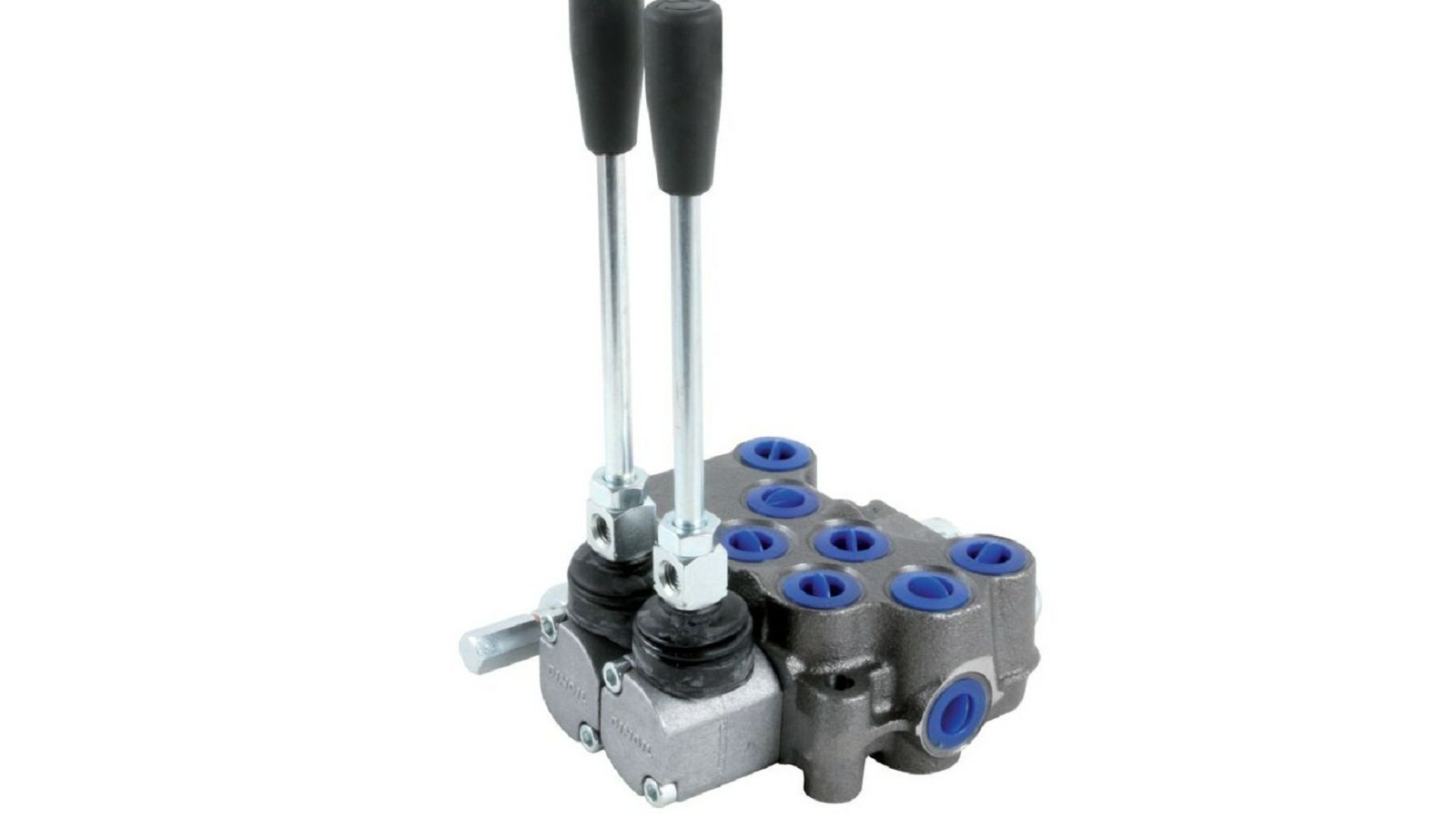

HIDRAULIČNI RAZDJELNIK, MONOBLOCK, 40L/min, 250Bar, 2 FUNKCIJE

ML/2GZA1A1
ML/2 GZ A1A1
ML2-GZ-A1A1
ML2GZA1A1
ML/2 2xA1
62000027400

------------

Connection pressure input (inches)
G 3/8 internal thread

Connection pressure output A (inches)
G 3/8 internal thread

Connection pressure output B (inches)
G 3/8 internal thread

Connection return flow (inches)
G 3/8 internal thread

Function 1
dual action

Function 2
dual action

Max. flow rate (l/min)
40

Max. operating pressure (bar)
250

Number of functional elements
2

Pressure limiting valve (bar)
180 standard

Pressure oil pipe
upgradable

Status zero position
P open at T A and B closed

Switch position 1
spring centered

Switch position 2
spring centered

Weight (kg)
4,326
