62000049600
-----------

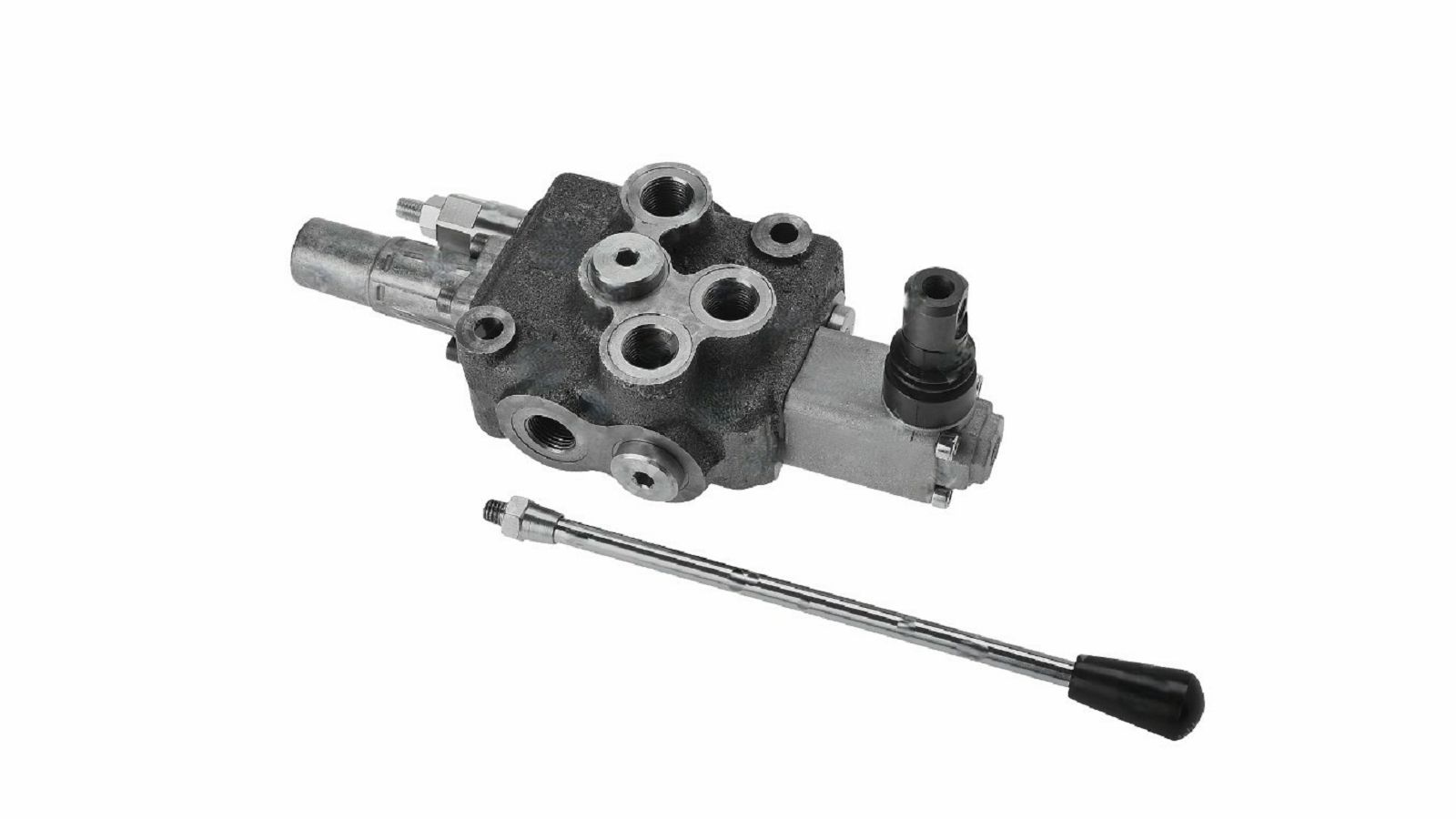

The control piston is equipped with a fine control groove.
This enables precise control even with a small slider valve opening.
The hand lever is not included in the scope of delivery and must be order separately.
Brand
HYDROCONTROL
Connection pressure input (inches)
G 3/8 internal thread
Connection pressure output A (inches)
G 3/8 internal thread
Connection pressure output B (inches)
G 3/8 internal thread
Connection return flow (inches)
G 3/8 internal thread
Function 1
dual action
Max. flow rate (l/min)
45
Max. operating pressure (bar)
350
Number of functional elements
1
Pressure limiting valve (bar)
180 standard
Pressure oil pipe
upgradable
Status zero position
P open at T A and B closed
Switch position 1
detent at A+B
Weight (kg)
2,757
