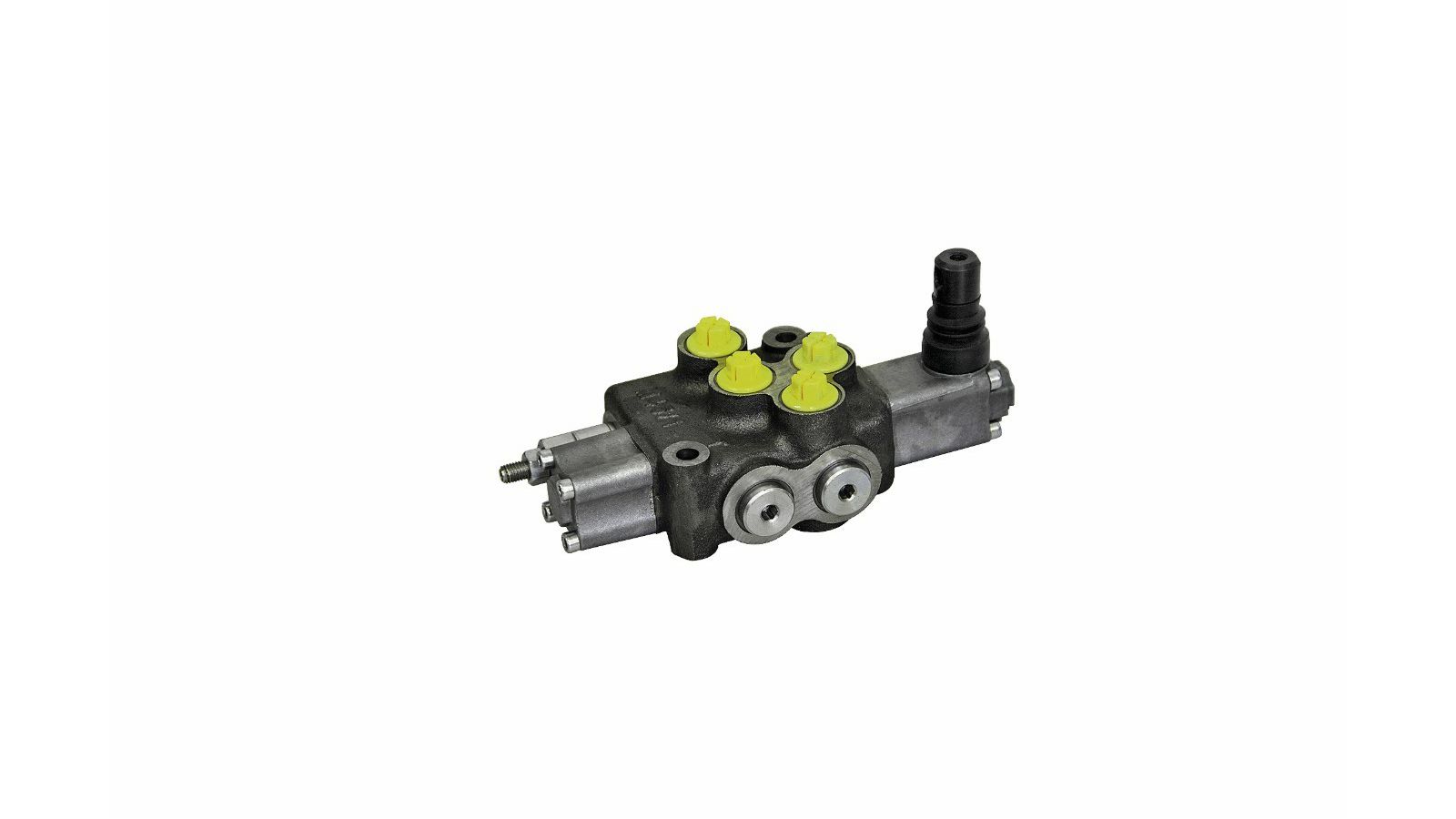

HIDRAULIČNI RAZDJELNIK, MONOBLOCK, 1 FUNKCIJA, 45L/min, 350Bar

62000046700

-----------

The control piston is equipped with a fine control groove.
This enables precise control even with a small slider valve opening.


Connection pressure input (inches)
G 3/8 internal thread

Connection pressure output A (inches)
G 3/8 internal thread

Connection pressure output B (inches)
G 3/8 internal thread

Connection return flow (inches)
G 3/8 internal thread

Function 1
single action

Max. flow rate (l/min)
45

Max. operating pressure (bar)
350

Number of functional elements
1

Pressure limiting valve (bar)
180 standard

Pressure oil pipe
upgradable

Status zero position
P open at T A closed

Switch position 1
spring centered

Weight (kg)
2,734
