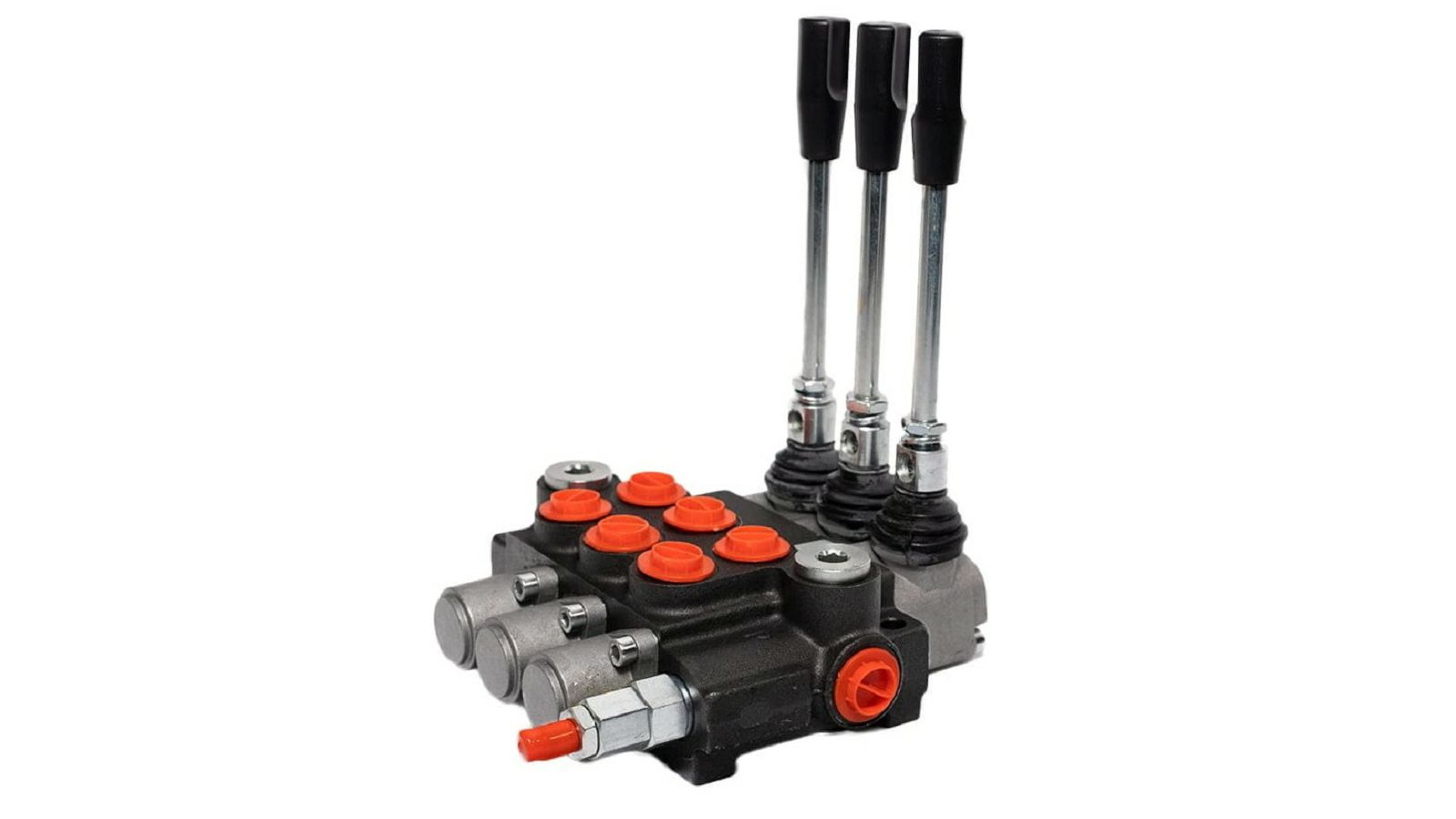

DM041A2BM
03P40
62000047600
----------
Connection pressure input (inches)
G 1/2 internal thread
Connection pressure output A (inches)
G 1/2 internal thread
Connection pressure output B (inches)
G 1/2 internal thread
Connection return flow (inches)
G 1/2 internal thread
Function 1
dual action
Function 2
dual action
Function 3
single action
Max. flow rate (l/min)
40
Max. operating pressure (bar)
250
Number of functional elements
3
Pressure limiting valve (bar)
180 standard
Pressure oil pipe
yes
Status zero position
P open at T A and B closed
Switch position 1
spring centered
Switch position 2
spring centered
Switch position 3
spring centered
Weight (kg)
5,876
