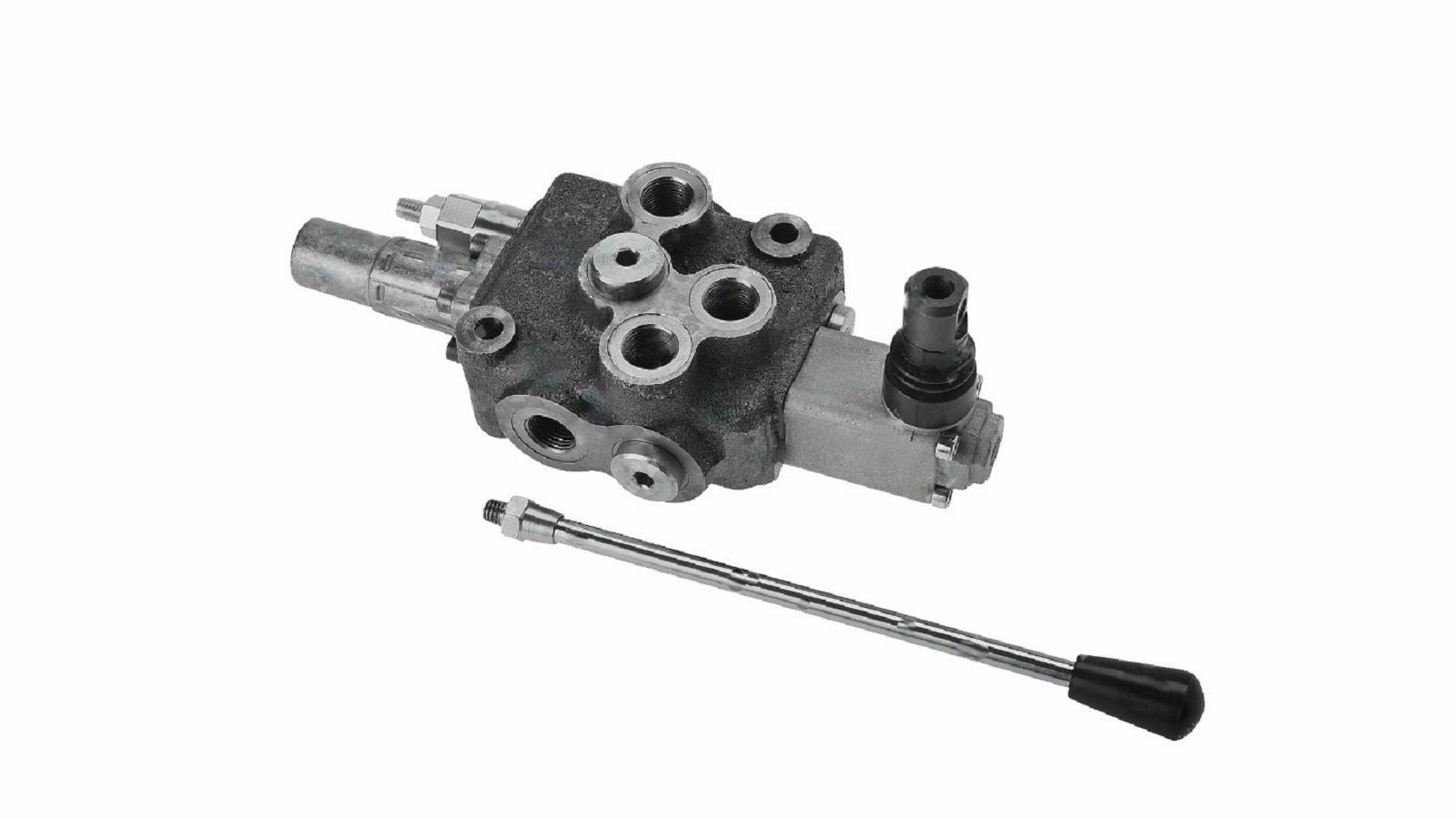

HIDRAULIČNI RAZDJELNIK, 1 FUNKCIJA, MONOBLOCK 45L/min, 350BAR

62000046800

-----------

The control piston is equipped with a fine control groove. This enables precise control even with a small slider valve opening.

Brand
other

Connection pressure input (inches)
G 3/8 internal thread

Connection pressure output A (inches)
G 3/8 internal thread

Connection pressure output B (inches)
G 3/8 internal thread

Connection return flow (inches)
G 3/8 internal thread

Function 1
single action

Max. flow rate (l/min)
45

Max. operating pressure (bar)
350

Number of functional elements
1

Pressure limiting valve (bar)
180 standard

Pressure oil pipe
upgradable

Status zero position
P open at T A closed

Switch position 1
detent at A

Weight (kg)
2,897
