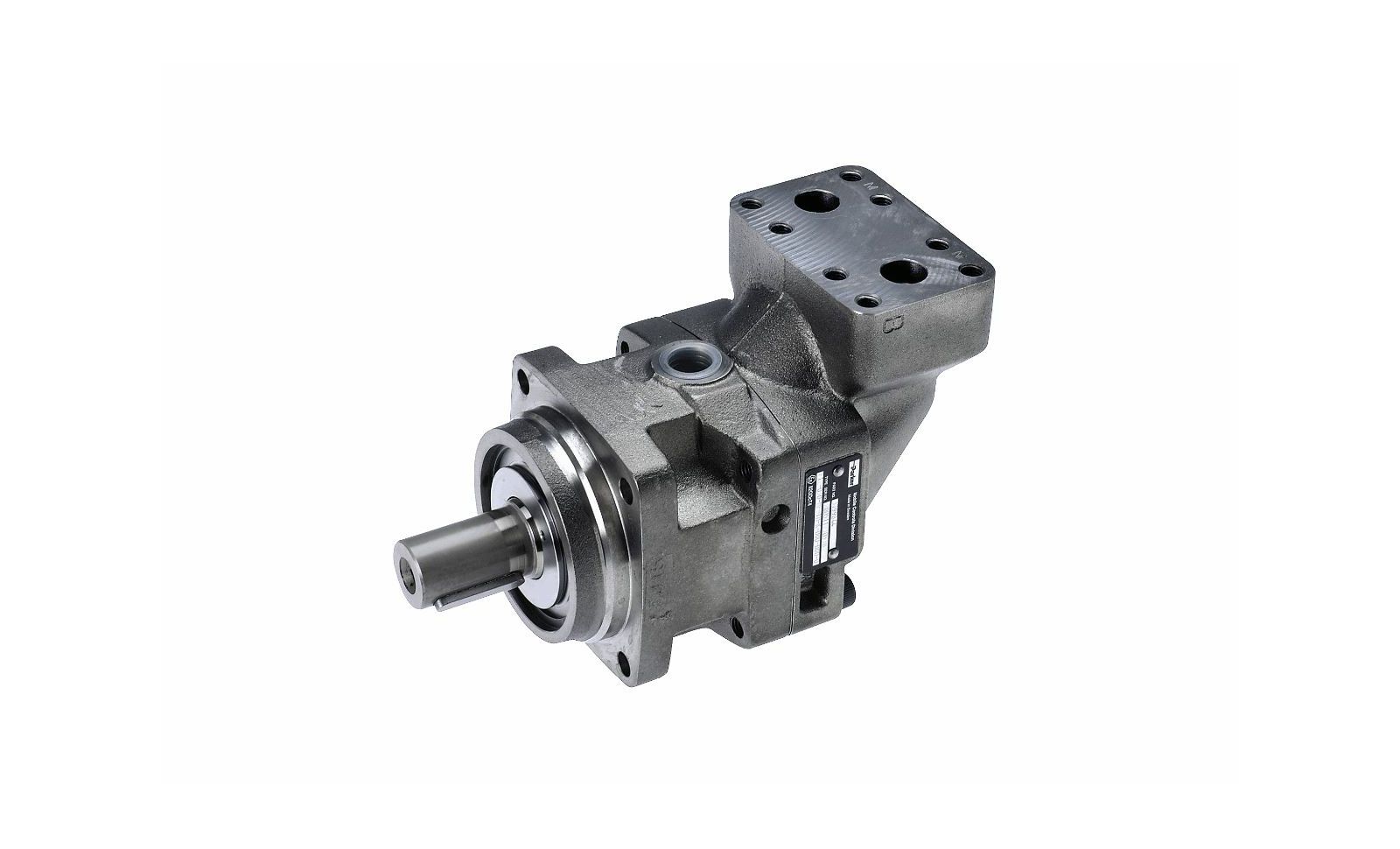

HIDRAULIČNI MOTOR, F12-110, 110,1cm3/r - PARKER

Name: HIDRAULIČNI MOTOR, F12-110, 110,1cm3/r - PARKER
Brand: PARKER
SKU: 130890
Availability: InStock

Šifra: 130890

Kataloški: 3786277

Jedinica mjere: Kom

Proizvođač: PARKER

Dostupnost artikla: 0 Kom / dobavljiv po narudžbi (5-10 radnih dana)

3786277
61100440400
F12-110

Max. torque (Nm)
174,8

Max. revolution (rpm)
4400

Displacement (cm3/r)
110,1

Oil connection A
1 1/4 inch SAE 6000

Oil connection B
1 1/4 inch SAE 6000

Max. oil flow (l/min)
484

Type
F12-110

Weight (kg)
36

Operating pressure (bar)
420

Brand
Parker

o shaft/hub (mm)
45

Max. pressure (bar)
480

Material housing
cast steel

Leakage oil connection
M 22x1.5 internal thread

Specification drive
shaft cylindrical (metric) with feather key

Assembly flange drive
4-hole 141x141 mm
