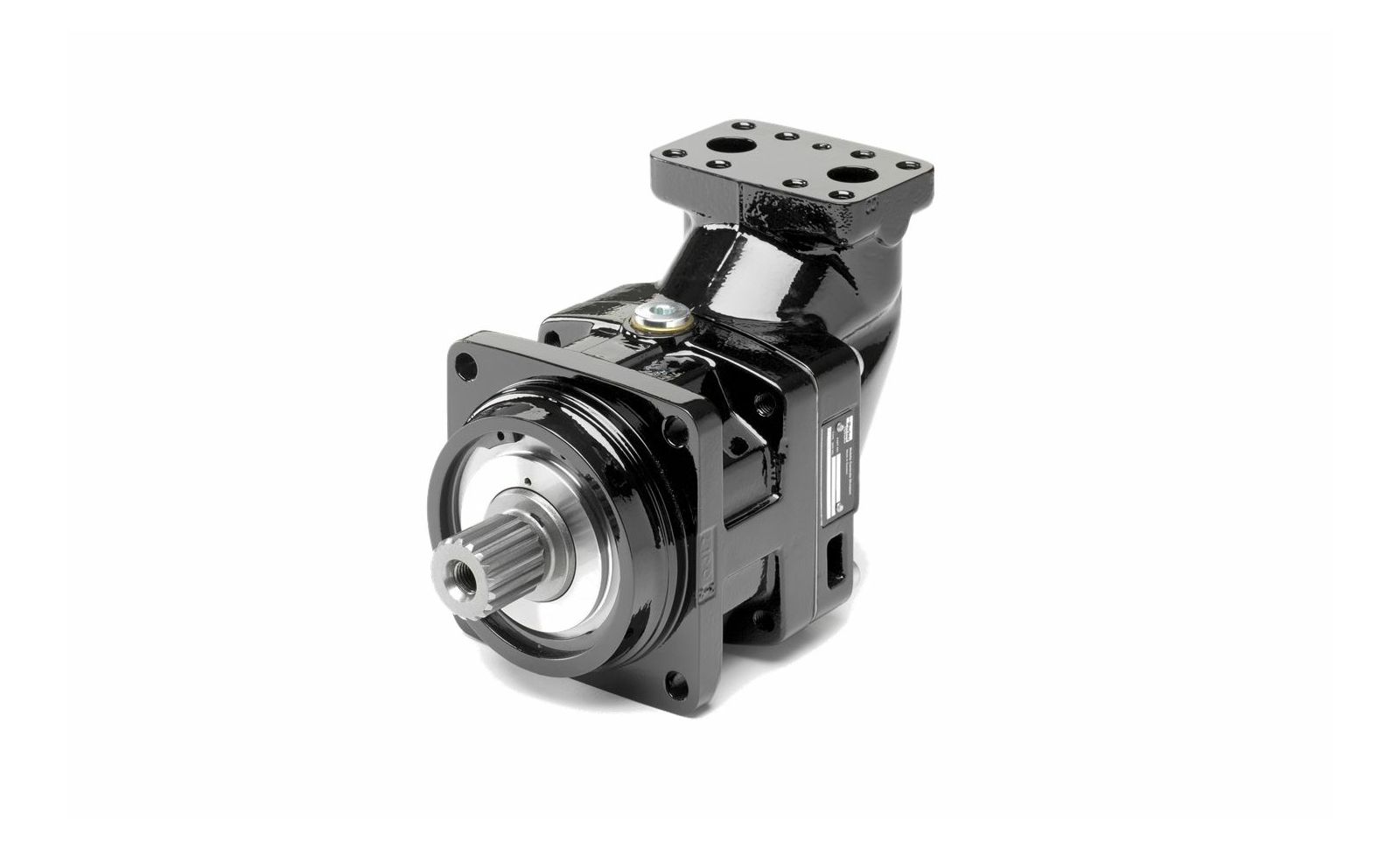

HIDRAULIČNI MOTOR F12-030, 30cm3/r - PARKER

3780448
F12-030
F12-030-MS-TH-P-000-000-0


Max. torque (Nm)
47,6

Max. revolution (rpm)
7300

Displacement (cm3/r)
30

Oil connection A
3/4 inch internal thread

Oil connection B
3/4 inch internal thread

Max. oil flow (l/min)
219

Type
F12-030

Assembly flange drive
2-hole 146 mm

Operating pressure (bar)
420

Brand
Parker

Power (kW)
70

o shaft/hub (mm)
25

Max. pressure (bar)
480

Material housing
cast steel

Leakage oil connection
M 18x1.5 internal thread

Specification drive
feather key shaft
