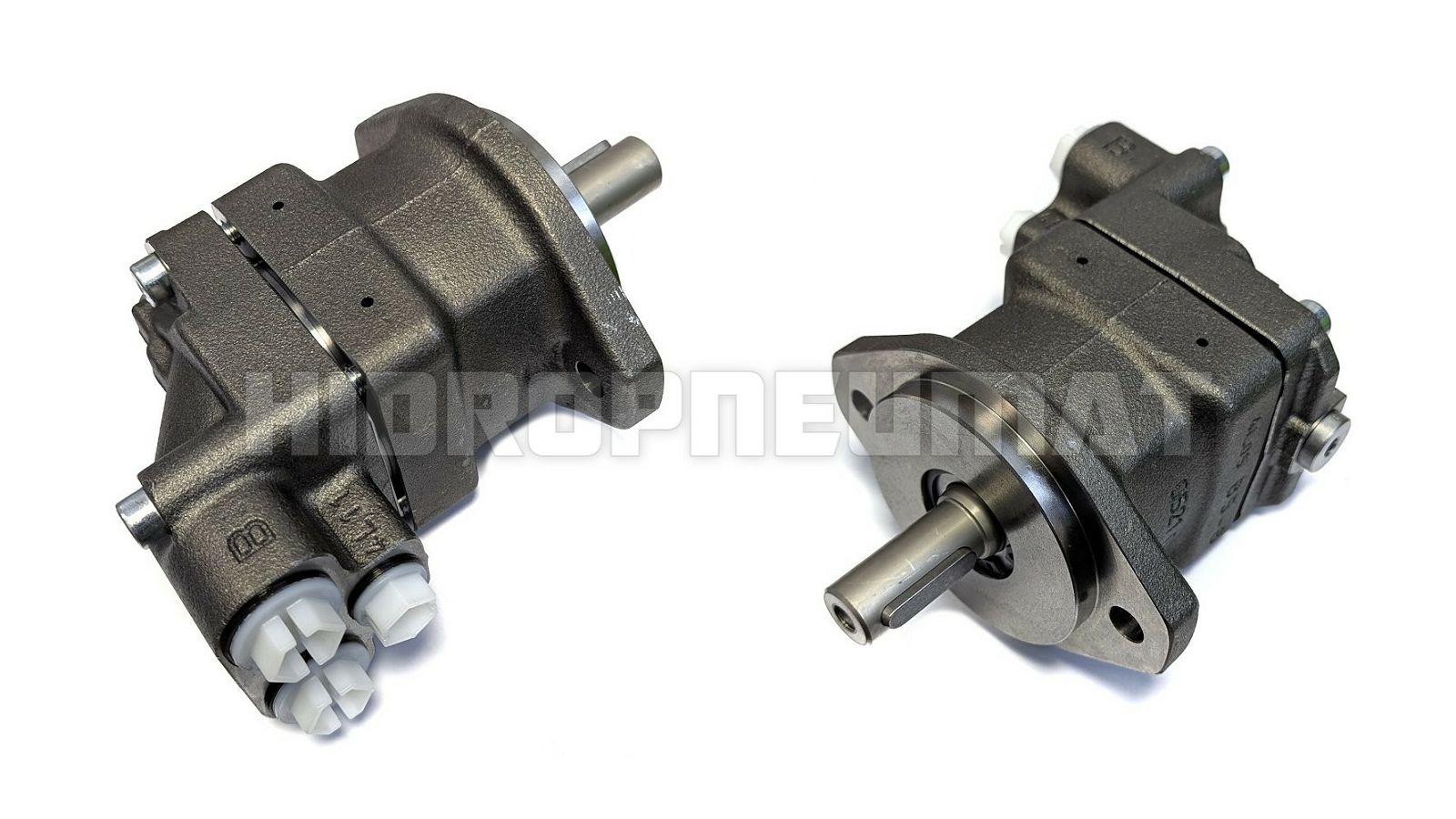

HIDRAULIČNI MOTOR F11-005, 4,9cm3/r, 13kW, MAX 420Bar, VOAC VOLVO - PARKER

3707249
3703665 ZAMJENJEN 3707249
3782009
F11-005-MB-CV-K-000-0000-00
F11-005-MB-CN-K-000
61100444400

------------

with Viton sealing

Assembly flange drive
2-hole 100 mm

Brand
Parker

Displacement (cm3/r)
4,9

Leakage oil connection
1/4 inch internal thread

Material housing
cast steel

Max. pressure (bar)
420

Max. revolution (rpm)
12800

Max. torque (Nm)
25

Oil connection A
1/2 inch internal thread

Oil connection B
1/2 inch internal thread

Operating pressure (bar)
350

Power (kW)
13

Specification drive
shaft cylindrical (metric) with feather key

Type
F11-005

Weight (kg)
4,8

o shaft/hub (mm)
18
