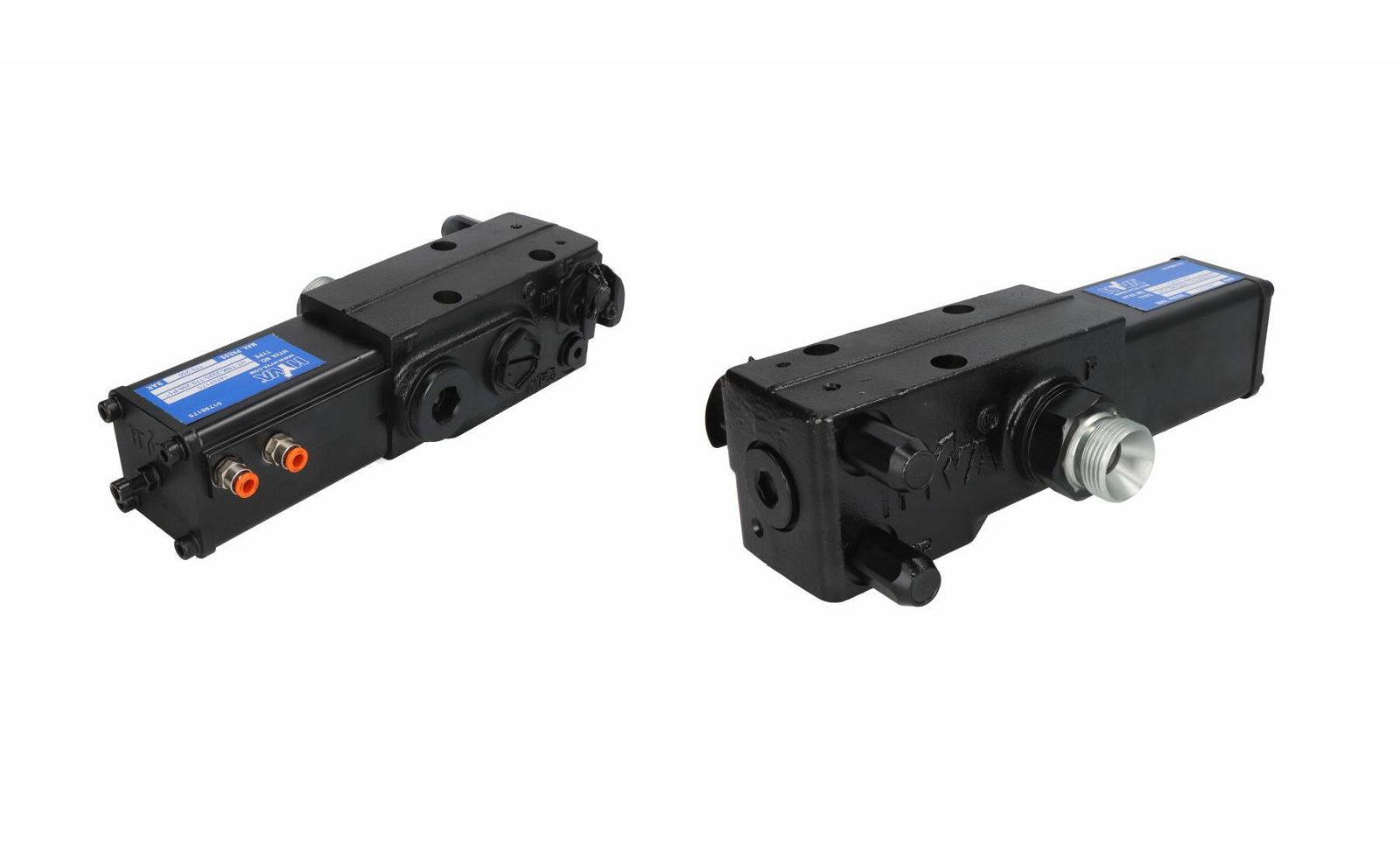

HIDRAULIČNI KIPER CILINDAR, UTOVAR - HYVA

14767175
ht-tnk-220-170-250-p1
UTOVARNA STIJENA

-------------

Weight (kg)
6

Brand
Hyva

Max. operating pressure (bar)
350

Surface
painted

Type
PT-2220-170-250

Material
cast steel

Flow rate tilting operation (l/min)
220

Flow lowering operation (l/min)
220

Set pressure (bar)
170/250

Connection pressure input
G 1 inch internal thread

Connection consumer
G 1 inch internal thread

Connection control line
1/8 inch internal thread

Test connection
1/4 inch internal thread

Actuation
pneumatic
