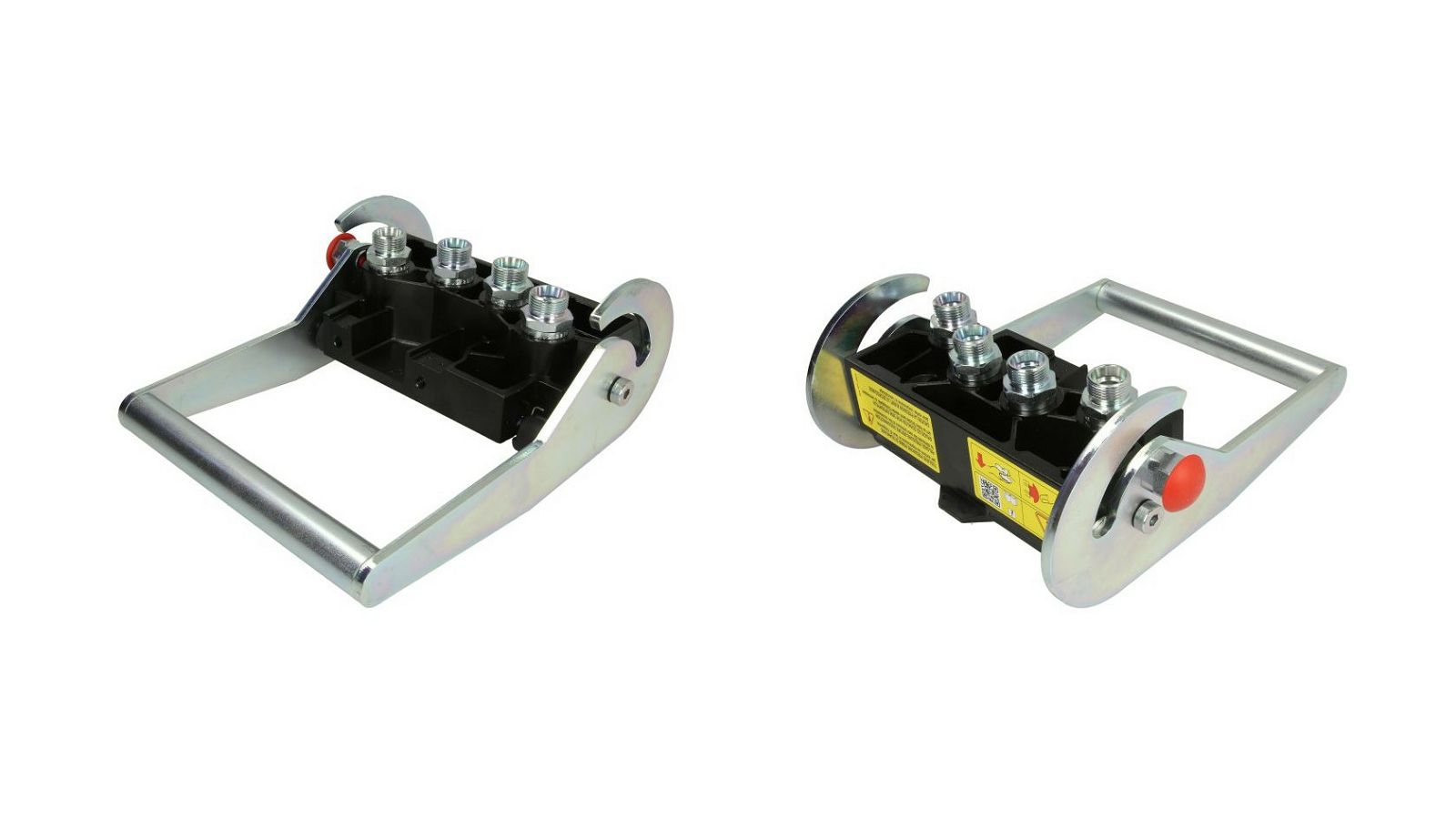

HIDRAULIČNA SPOJNICA 3/8cola, dimenzija navoja M22/1,5mm 40l/min iSO norma: 8434-1-L - FASTER

2PS0642/22FC
2PS064222FC
2PS06-4-2/22FC
62300049400

----------

Brand
Faster

Certified according to ISO
yes

Connection type
tube connection

Coupling type
flat sealing

Electrical connections
without

For o pipe (mm)
15

Material housing
steel

Max. flow rate (l/min)
40

Nominal diameter (mm)
10

Operating pressure (bar)
250

Production series
light

System
Faster

Thread external metric
M 22x1,5

Tube AD series
15 L

Version multi-coupling
4-fold

Weight (kg)
3,9
