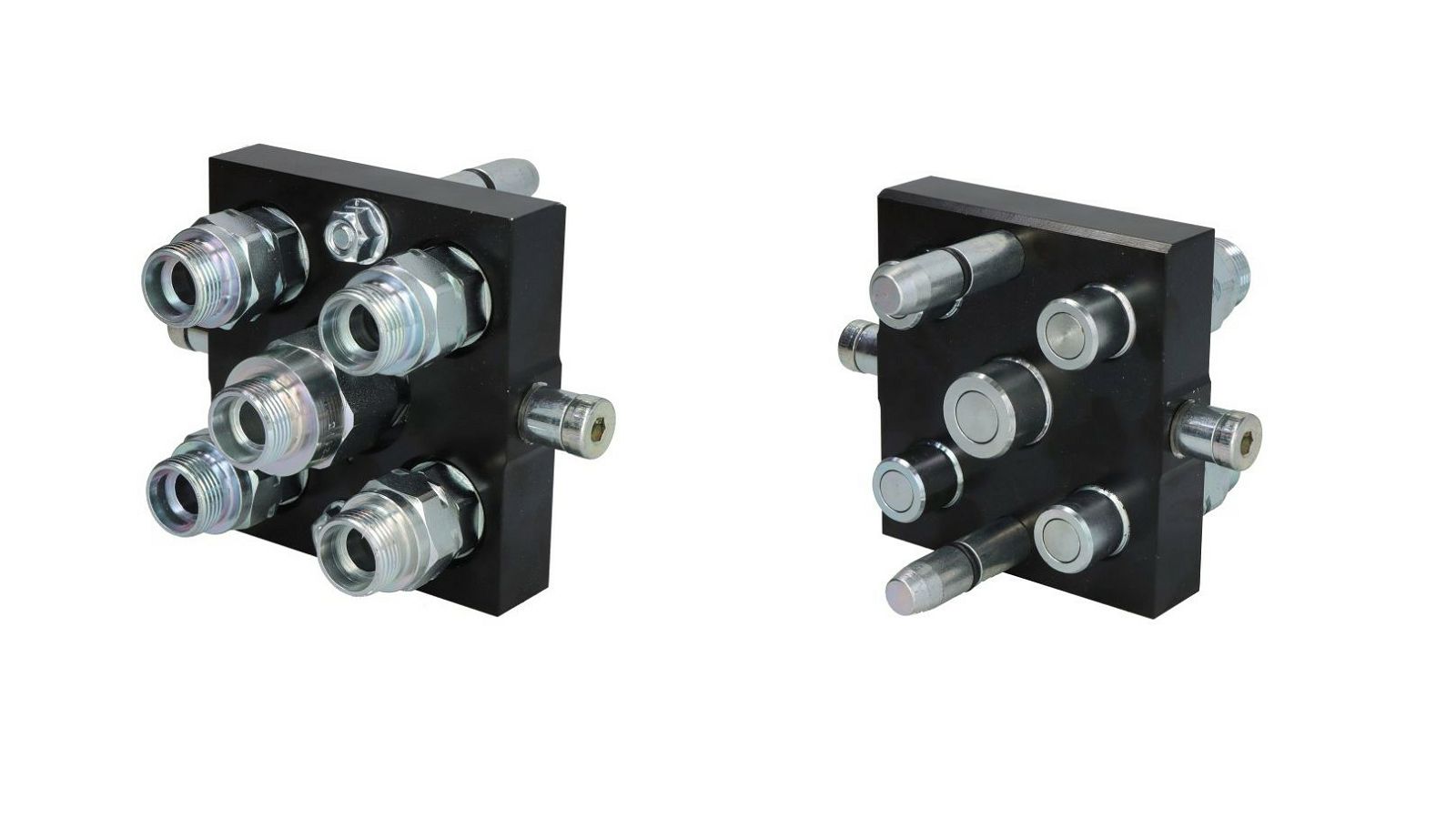

HIDRAULIČNA SPOJKA, MUŠKA, TIP506 - FASTER

2P506-0-5-S4 MC
2P506-0-5-S4MC
2P50605S4MC
G524893580021
62300048900


ŽENSKI DIO:
2P506-0-5-S4 FC
2P506-0-5-S4FC
2P50605S4FC

--------------

4 x Couplings 3/8":
M22x1,5 MALE 15L - ISO 8434-1-L

Flow Rate:
40 (l/min) at 0.2 MPa

1 x Coupling 1/2":
M22x1,5 MALE 15L - ISO 8434-1-L

Flow Rate:
70 (l/min) at 0.2 MPa

Temperature:
-25 °C to 100 °C

Seals:
NBR & PUR

Weight:
1644.8 g

Brand
Faster

Can be coupled under residual pressure
no

Connection type
tube connection

Coupling situation
cannot be coupled under residual pressure

Coupling type
flat sealing

Electrical connections
without

For o tube (mm)
15

Material housing
aluminum/steel

Max. flow rate (l/min)
40

Nominal diameter (mm)
10
12

Operating pressure (bar)
250

Production series
light

Sealing
24° inner cone

Thread external metric
M 22x1,5

Tube AD series
15 L

Type
P506

Version multi-coupling
5-fold
