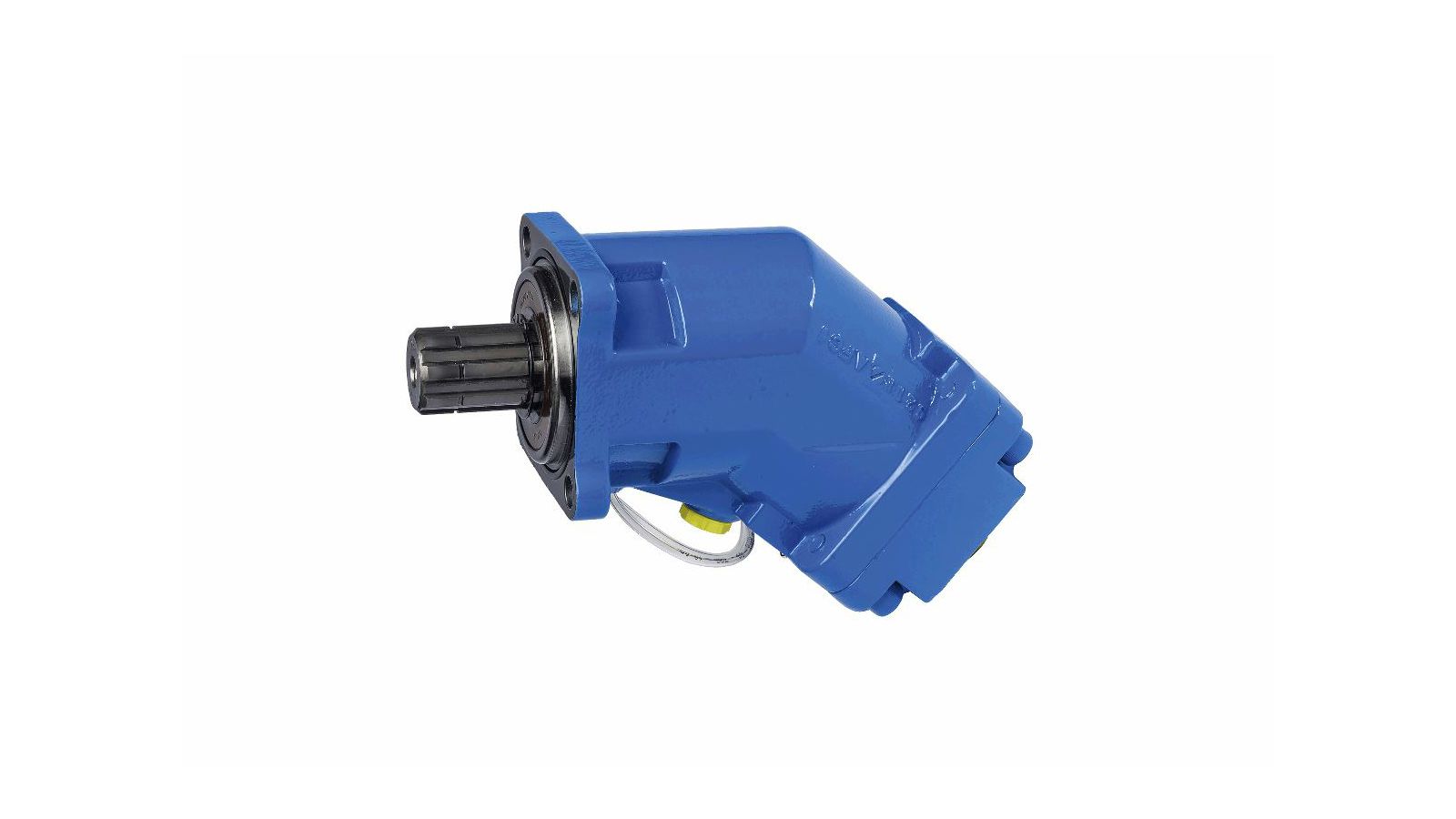

HIDRAULIČNA PUMPA MXP63, 63cm3/r, 5500rpm, RUPE 80x80 - HYDRO LEDUC

MXP63
61100411800

fi shaft/hub (mm): 36
Weight (kg): 11.588
Brand: Leduc
Operating pressure (bar): 400
Max. torque (Nm): 350
Max. revolution (rpm): 5500
Max. pressure (bar): 450
Displacement (cm3/r): 63
Material housing: cast steel
Type: MXP 63
Specification drive: shaft 8x32x36
Assembly flange drive: 4-hole 80x80 mm
Oil connection A: 3/4 inch internal thread
Oil connection B: 3/4 inch internal thread
Leakage oil connection: 3/8 inch internal thread
Max. oil flow (l/min): 315


hydraulic motor with axial taper piston in 40° inclined axis design between shaft and piston housing.
These offer high performance with low installation dimensions. ideally suited for applications in vehicle construction or construction machinery.
