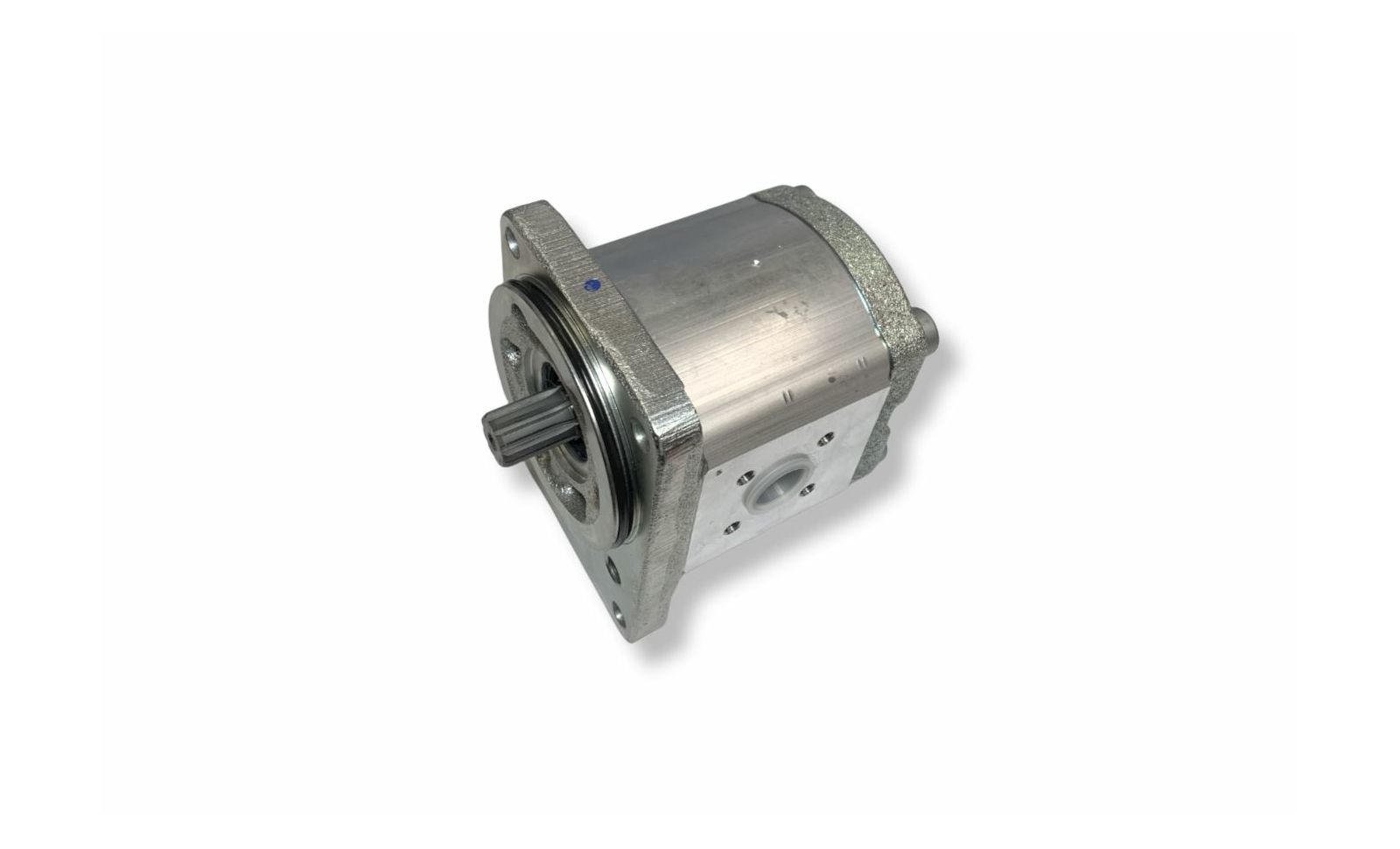

HIDRAULIČNA PUMPA IVECO, 16cm3/r, LIJEVA - BOSCH REXROTH

R918C01609
0510625371
500389905 IVECO
AZPF-12-016LFB20PB-S0019
5006000578
42539587
500389905
5001857973
5006000578
61100344300

----------------


Max. revolution (rpm): 3000
Direction of rotation: left
Delivery volume (cm3/r): 16
FI suction connection (mm): 20
Mounting suction connection: hole circle 40 mm M 6
FI pressure connection (mm): 15
Mounting pressure connection: hole circle 35 mm M 6
Usage: fan drive system
Assembly flange drive: 4-hole 72x100 mm M 8
Weight (kg) 3,734
Operating pressure (bar): 250
Brand Bosch-Rexroth
Center o flange (mm): 80
FI shaft/hub (mm): 16,5
Manufactured size: F
Optional equipment valve: without valve
Max. pressure (bar): 280
Specification drive: splined shaft DIN 5482 B17x14
Version: single pump
