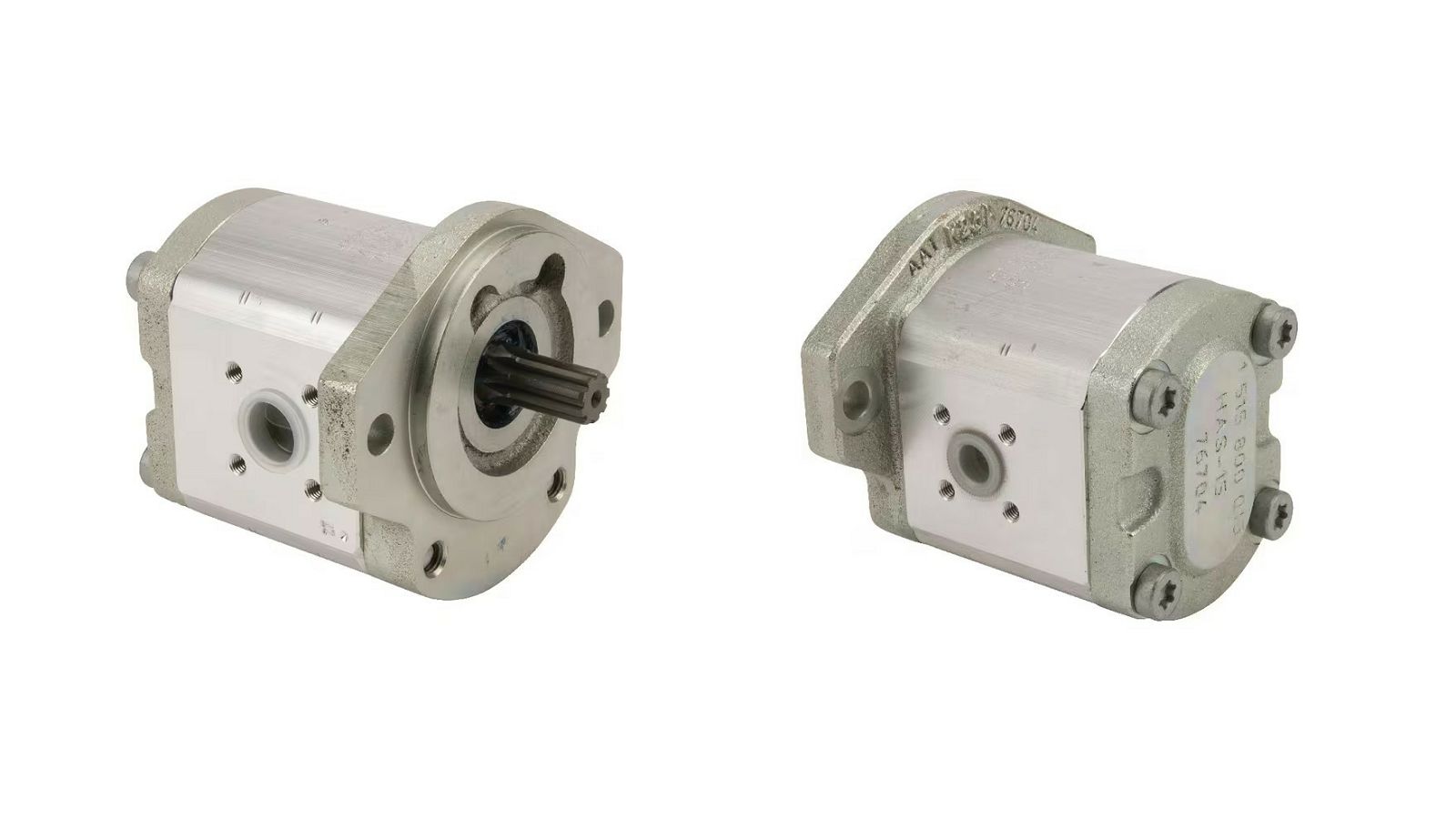

HIDRAULIČNA PUMPA 19l/min - REXROTH

0510625029
76704
15158000013
AZPF-12-019-R


--------


Part number
0510625029

Flange type norm
SAE-A

Flange code
R

Number of mounting holes
2

Shaft type
Splined 9T

Shaft diameter
15,45 mm

Shaft number of teeth
9

Displacement
19 cm3/rev

Sealing type
Standard

Max. continous working pressure
210 BAR

Max intermittend working pressure
230 BAR

Max pressure peak
250 BAR

Max rotation speed
3000 r/min

Min rotation speed
500 r/min

Prefered rotation direction
Clockwise (CW)

Port position
Side

Flange and back cover material
Cast iron

Mounting diameter
82,55 mm

Pump group code
2
