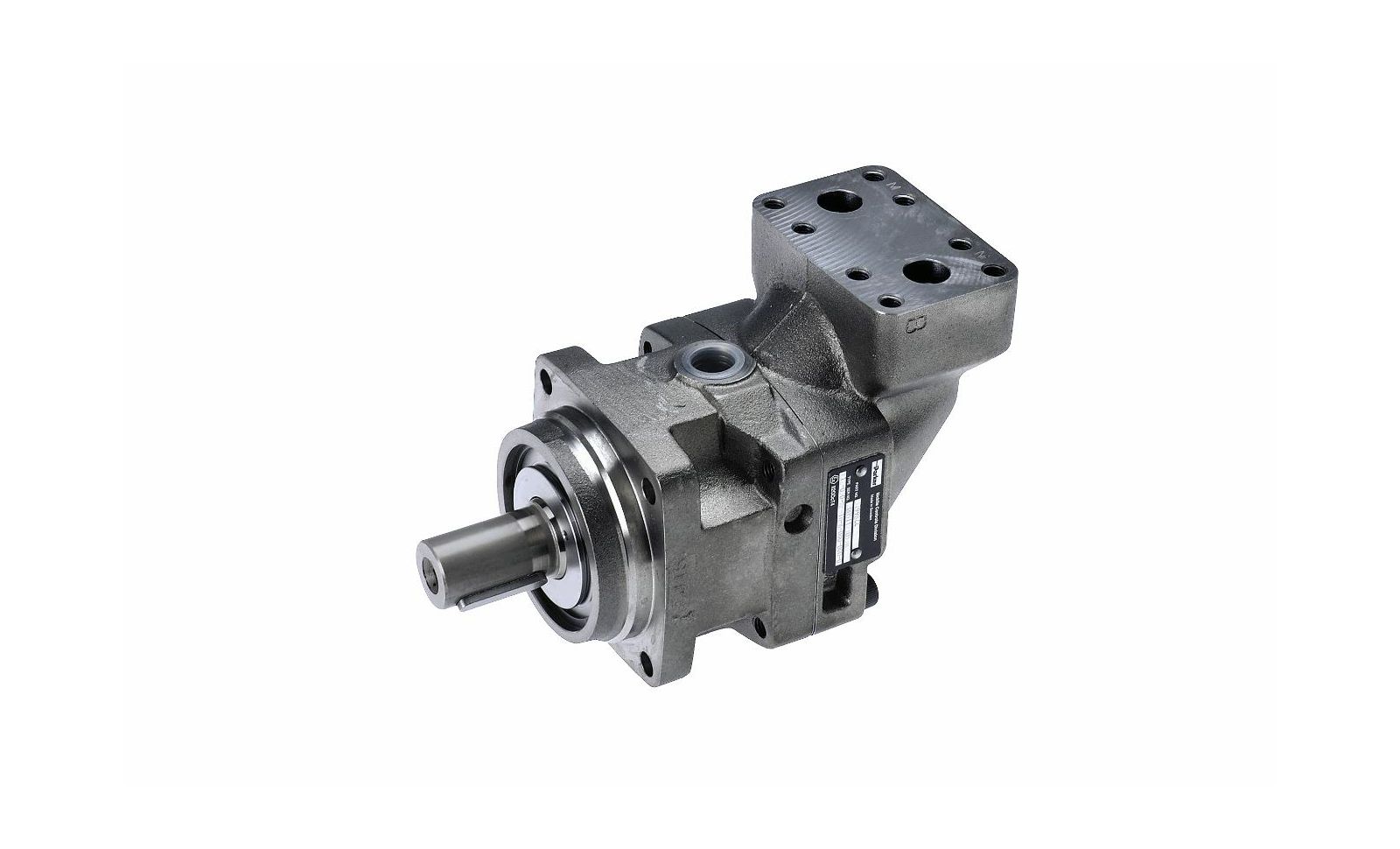

3781534
F12-110
Max. torque (Nm)
838
Max. revolution (rpm)
3600
Displacement (cm3/r)
110,1
Oil connection A
1 1/4 inch SAE 6000
Oil connection B
1 1/4 inch SAE 6000
Type
F12-110
Assembly flange drive
4-hole 141x141 mm
Weight (kg)
33,5
Operating pressure (bar)
420
Brand
Parker
Power (kW)
254
o shaft/hub (mm)
45
Max. pressure (bar)
480
Material housing
cast steel
Leakage oil connection
M 22x1.5 internal thread
Specification drive
feather key shaft
