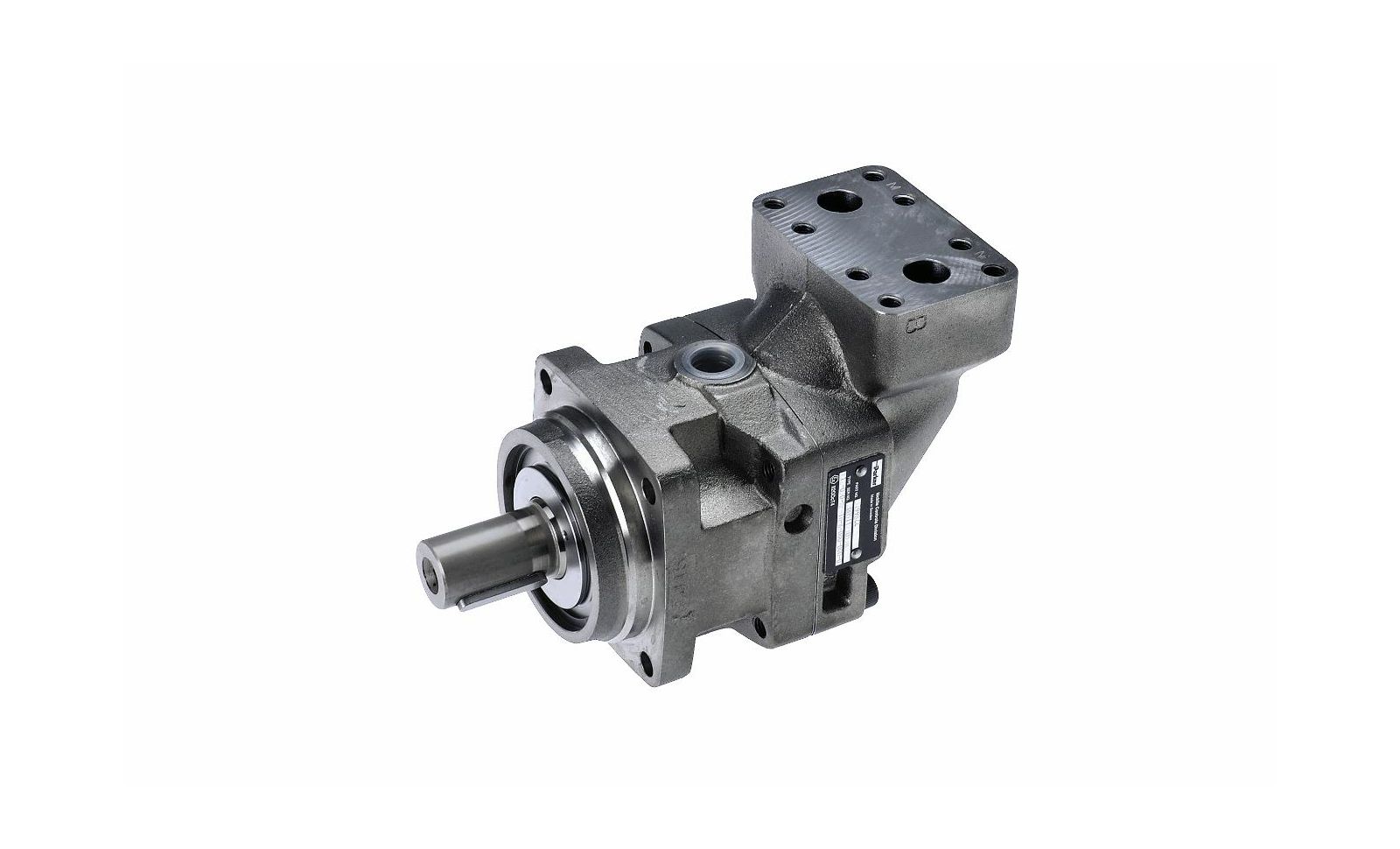

HIDRAULIČKI MOTOR F12-110, 110,1cm3/r - PARKER

3781534
F12-110


Max. torque (Nm)
838

Max. revolution (rpm)
3600

Displacement (cm3/r)
110,1

Oil connection A
1 1/4 inch SAE 6000

Oil connection B
1 1/4 inch SAE 6000

Type
F12-110

Assembly flange drive
4-hole 141x141 mm

Weight (kg)
33,5

Operating pressure (bar)
420

Brand
Parker

Power (kW)
254

o shaft/hub (mm)
45

Max. pressure (bar)
480

Material housing
cast steel

Leakage oil connection
M 22x1.5 internal thread

Specification drive
feather key shaft
