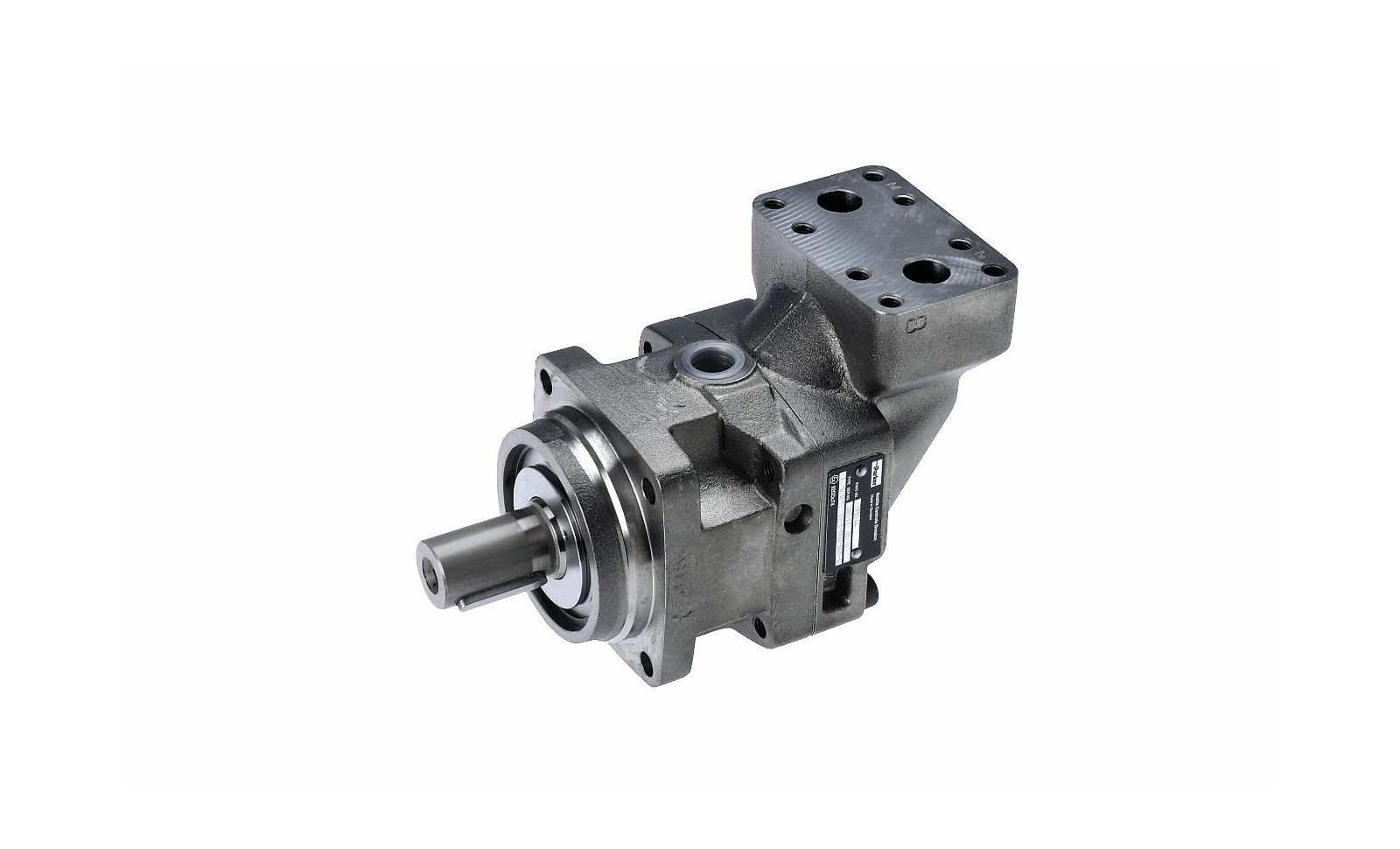

HIDRAULIČKI MOTOR F12-080, 80,4cm3/r - PARKER

3780772
F12-080


Max. torque (Nm)
127,6

Max. revolution (rpm)
4800

Displacement (cm3/r)
80,4

Oil connection A
1 inch SAE 6000

Oil connection B
1 inch SAE 6000

Max. oil flow (l/min)
386

Type
F12-080

Assembly flange drive
4-hole 127x127 mm

Weight (kg)
26

Operating pressure (bar)
420

Brand
Parker

o shaft/hub (mm)
40

Max. pressure (bar)
480

Material housing
cast steel

Leakage oil connection
M 22x1.5 internal thread

Specification drive
shaft cylindrical (metric) with feather key
