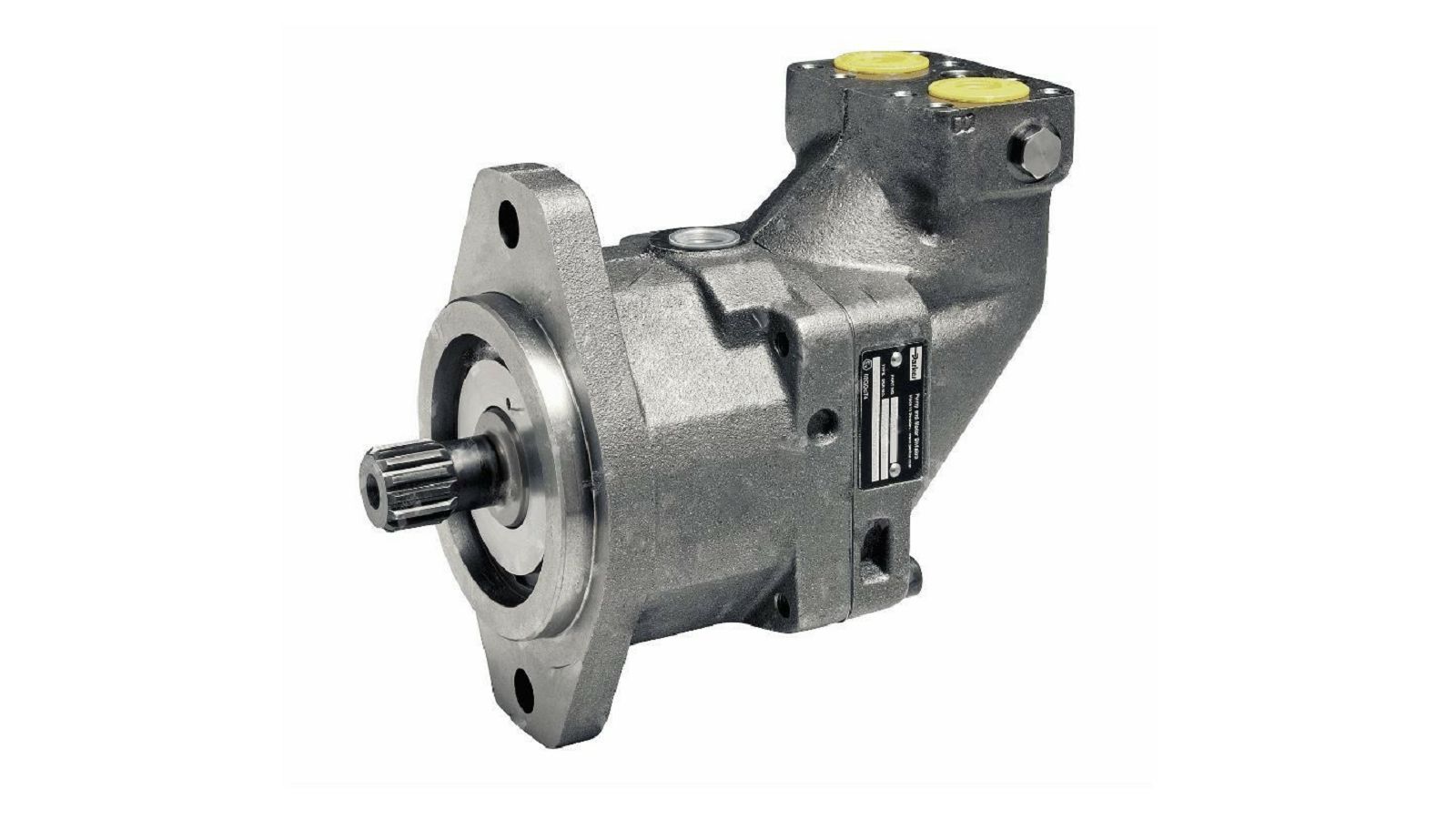

HIDRAULIČKI MOTOR F12-060, 60cm3/r - PARKER

3785486
F12-060
61100264900

---------

fi shaft/hub (mm)
SAE C 14T 12/24 DP

Weight (kg)
21,21

Power (kW)
110

Brand
Parker

Operating pressure (bar)
420

Max. torque (Nm)
94,9

Max. revolution (rpm)
4300

Max. pressure (bar)
480

Displacement (cm3/r)
60

Material housing
cast steel

Type
F12-060

Specification drive
splined shaft

Assembly flange drive
2-hole 181 mm

Oil connection A
3/4 inch SAE 6000

Oil connection B
3/4 inch SAE 6000

Leakage oil connection
7/8 inch internal thread
