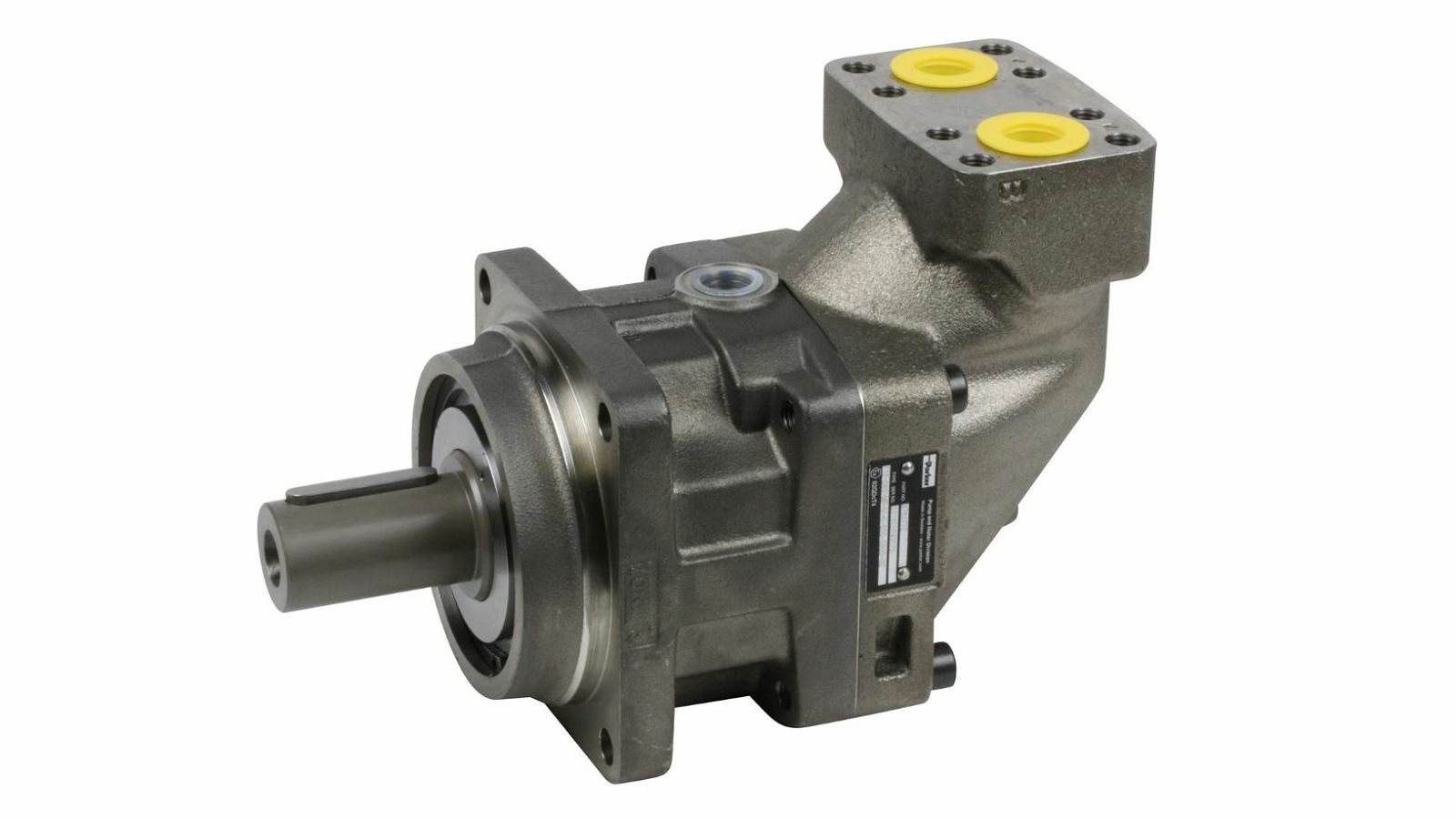

HIDRAULIČKI MOTOR F12-060, 59,8cm3/r - PARKER

3722587
3783040
F12-060-MF-IV-K-000-0000-P0
3783040 MOTOR REPLACED BY 3722587
zamjenjuje 3799989 - F12-060-MF-IV-K-000-0000-00 - bez senzora
61100462900


ALTERNATIVA: 24405013040, 24405013047, 24405013055, 24405013064 - OMFB

-----------

FI shaft/hub (mm)
35

Weight (kg)
19,7

Brand
Parker

Operating pressure (bar)
420

Max. torque (Nm)
94,9

Max. revolution (rpm)
5300

Max. pressure (bar)
480

Displacement (cm3/r)
59,8

Type
F12-060

Specification drive
shaft cylindrical (metric) with feather key

Assembly flange drive
4-hole 113x113 mm

Oil connection A
3/4 inch SAE 6000

Oil connection B
3/4 inch SAE 6000

Leakage oil connection
M 22x1.5 internal thread

Max. oil flow (l/min)
317

-----------

Primjena:

Pogoni pila, sjekači stabala, tegljači, forvarderi, dizalice, kosilice, rezači,
postolja za ispitivanje zrakoplova, palubne dizalice, vitla za konstantnu napetost,
poklopci grotla, pumpe za dušik, kamioni za fraciranje,
cijevi za zavojnice, mini upravljači, terenski kamioni, pogoni ventilatora, i sakupljači prašine.
