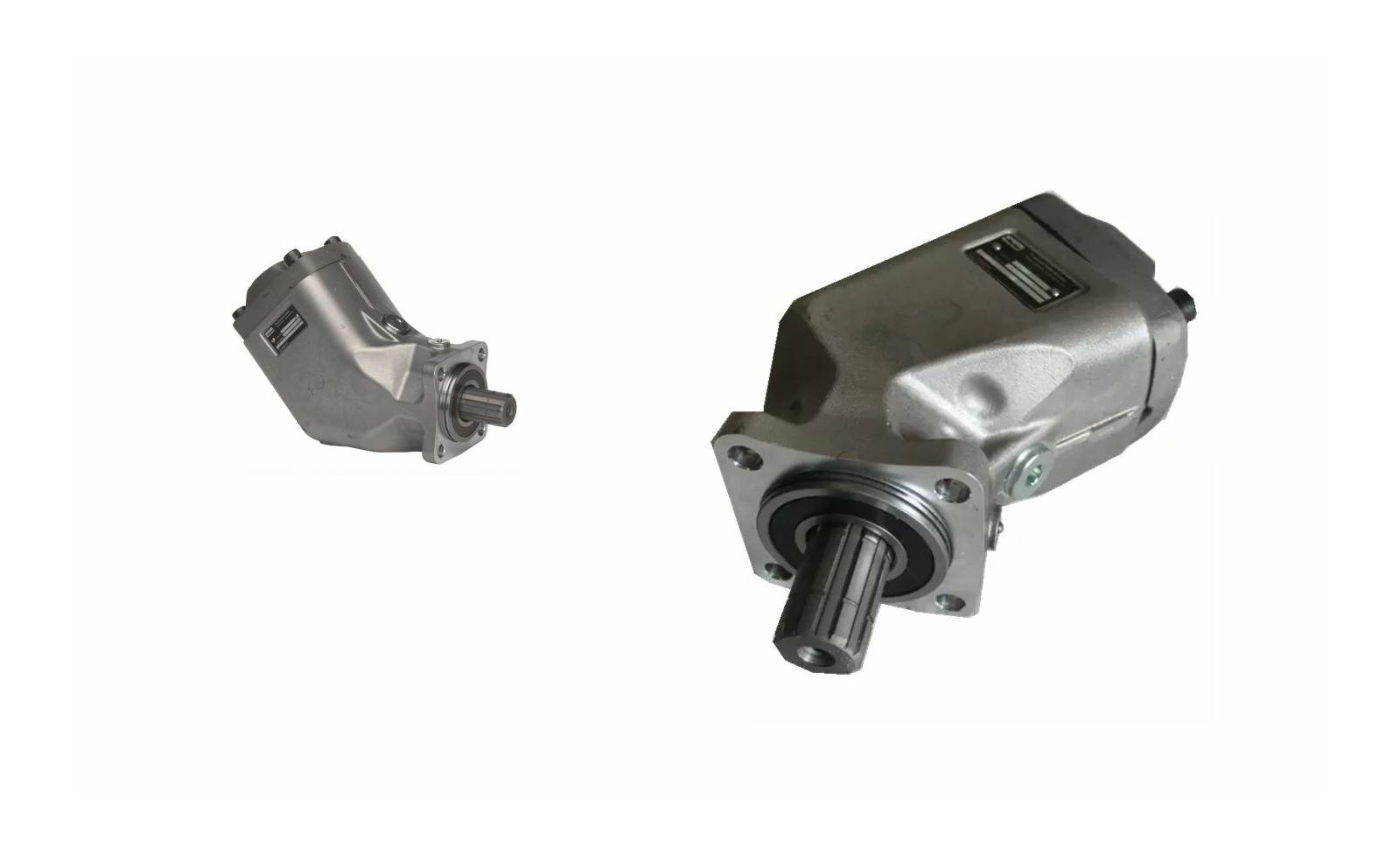

HIDRAULIČKI MOTOR F1-101, 102,9cm3/r - PARKER

3781800
F1-101
F01-101
F1-101-M
F1-101M



Max. torque (Nm)
572

Max. revolution (rpm)
1800

Displacement (cm3/r)
102,9

Oil connection A
1 inch internal thread

Oil connection B
1 inch internal thread

Type
F1-101

Assembly flange drive
4-hole 80x80 mm

Weight (kg)
12,5

Operating pressure (bar)
250

Brand
Parker

Power (kW)
48

o shaft/hub (mm)
34,9

Max. pressure (bar)
350

Material housing
aluminum

Leakage oil connection
1/2 inch internal thread

Specification drive
shaft 8x32x36
