GLAVNI ORMARIĆ S OSIGURAČIMA, 230V, 16A, 175X155X90 - DEFA

700437
DEFA700437

------------

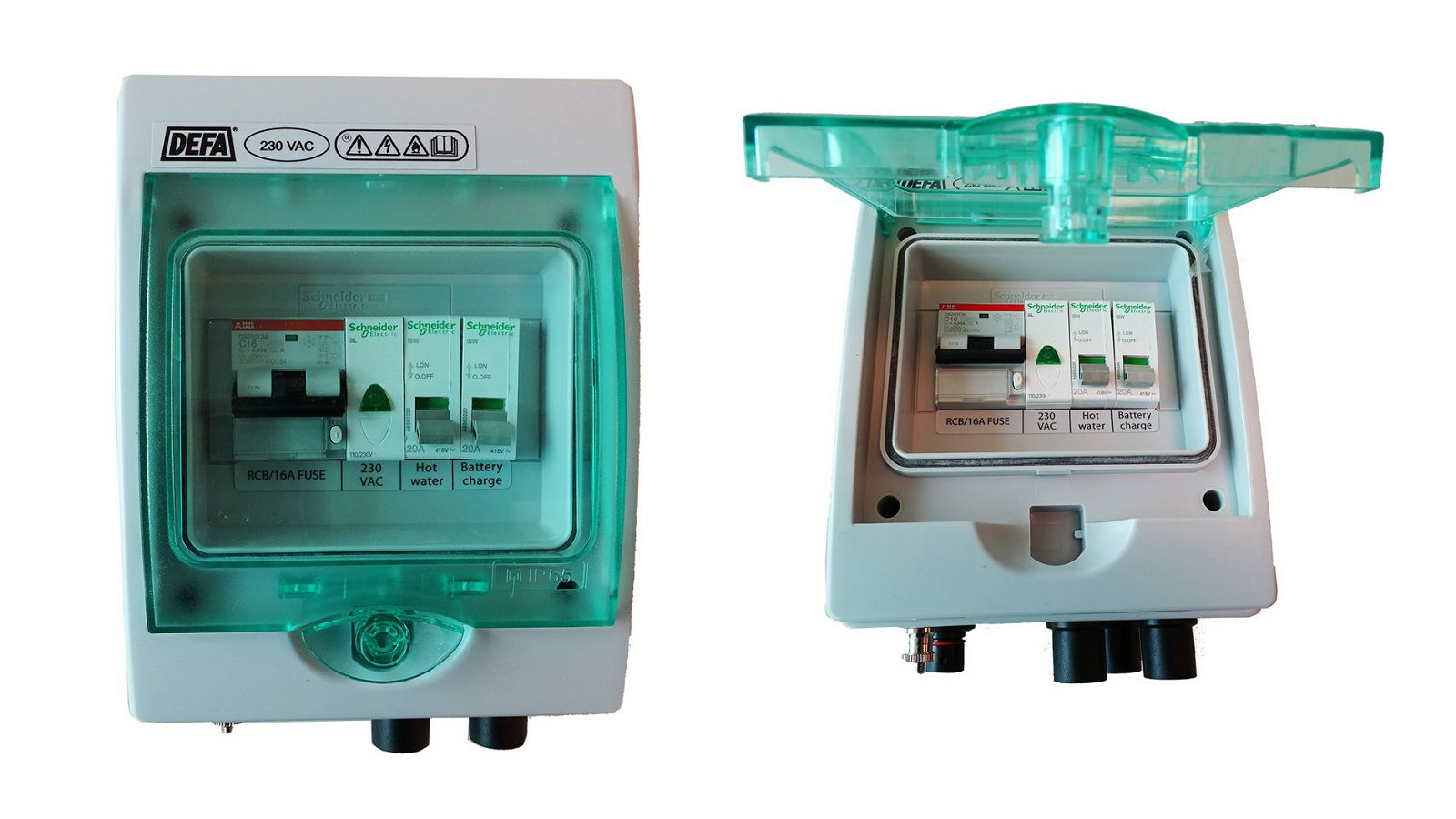

Main cabinet with fuses, including earth-leakage circuit-breaker, in addition to DEFA plugs for inlet and outlet.
The cabinet is dimensioned for 230VAC, 16A fuse circuit. It contains a “zink saver” which reduces galvanic corrosion of metals in the boat.

The cabinet has three outlets. Two of these have a switch (i.e., for turning off a water heater).

------------

The el-central has 1 or 2 DEFA PlugIn male inlet contacts and 3 PlugIn female outlets.
The inlet is connected through a 16A earth-leakage circuit-breaker switch.
One of the outlets has a constant voltage, and two outlets are connected via a switch.

All the connectors are placed on one side. The earth wire contact is connected to a “cathode protected diode bridge,” reducing corrosion when connected to shore power.

DEFA AS conforms to the requirements of both ISO 9001- 2008, ISO 14001:2004 and OHSAS 18001:2007.
In addition, our engine heaters and cables conform to the requirements of ISO/TS 16949:2002.
