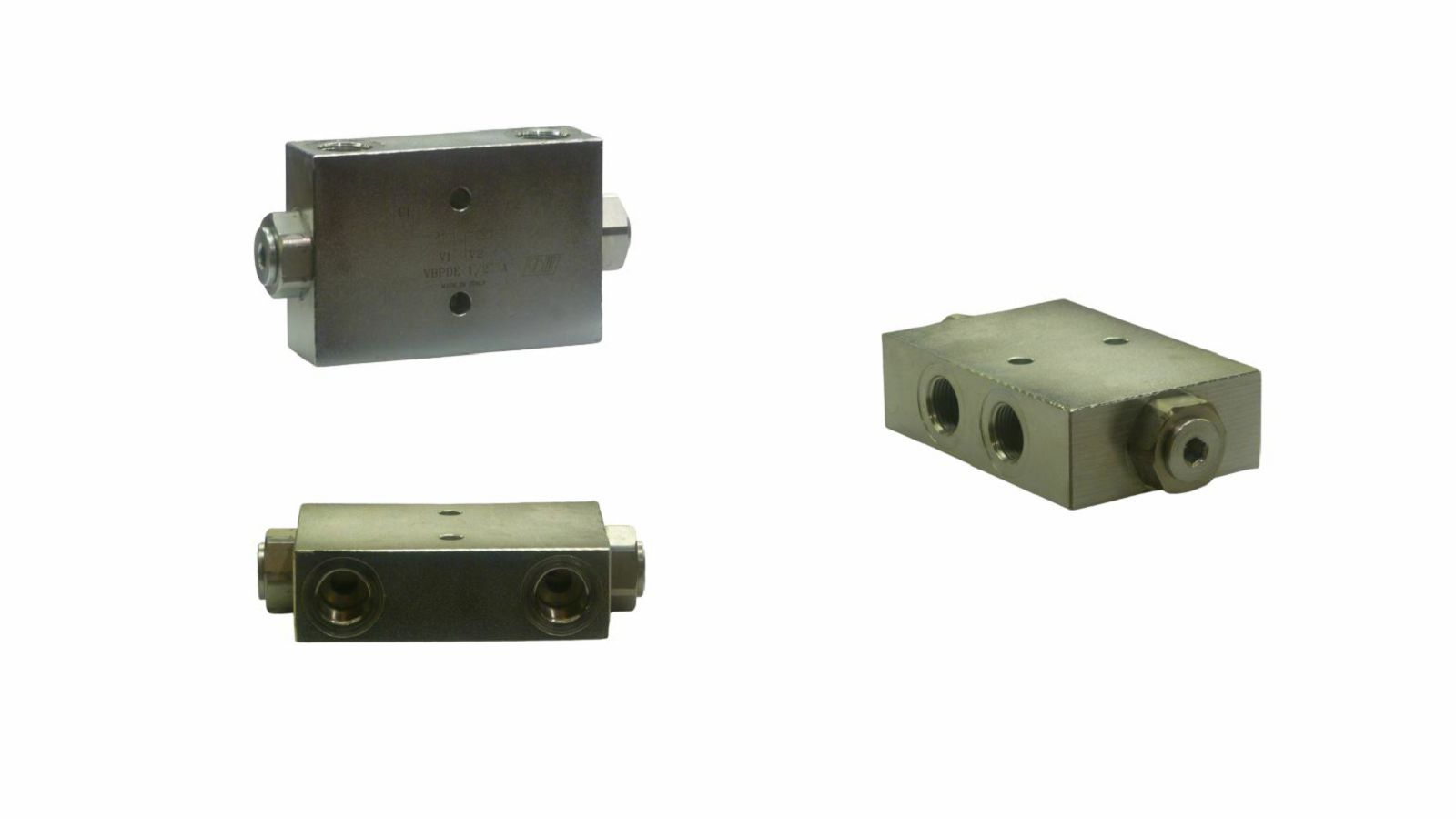

DUPLI PILOT KONTROLNI VENTIL VPDE 025 , 1/2", 50l/min

V0190
VAG352.257004
501.012.V0190
VPDE025G1/2
Bondioli & Pavesi VPDE03
61100454400

----------

inline version In contrast to the simple check valve, a pilot-operated check valve can also let the oil through in the blocking direction.
The flow in the blocking direction requires an additional control signal, usually via the pressure line in the simple version or alternately with a double non-return function.


Maximum Flow Rate LPM
55

Maximum Working Pressure (bar)
350

Reference
V0190

S (mm)
35

Spring Setting Bar
5.5

Thread size
1/2

Thread type
BSP

Type
VBPDE A

Activation ratio
4,5:1

Length (mm)
147

Material
steel

Max. flow rate (l/min)
50

Max. operating pressure (bar)
400

Surface
Cr6-free

Thread internal A1 (inches)
1/2

Thread internal A2 (inches)
1/2

Thread internal B1 (inches)
1/2

Thread internal B2 (inches)
1/2

Version
double

Weight (kg)
2,244
