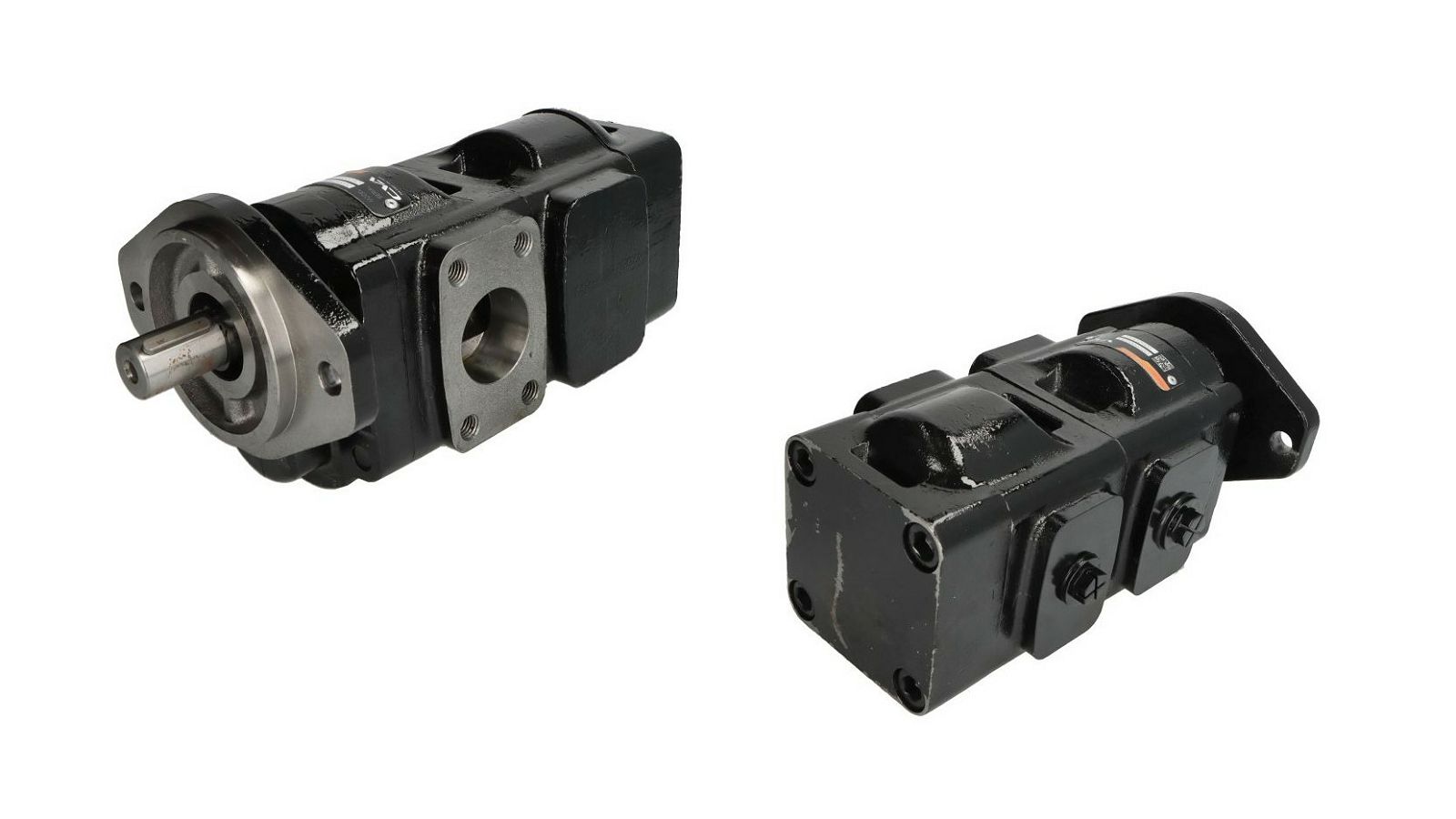

20/912800
20/902900
20/903100
20-903100
20-912800
----------
Rotation: Counter-Clockwise (looking from shaft end)
1” Diameter parallel keyed shaft
SAE B 2 hole mounting flange
Front pump displacement: 33 cc/rev (33L/Min per 1000 rpm)
Rear pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
Combined 2” SAE flange inlet
Front pump outlet: 1 1/16”-12 UNF threaded
Rear pump outlet: 7/8”-14 UNF threaded
Maximum working pressure on front pump: 275 bar
Maximum working pressure on rear pump: 275 bar
Max. Input shaft torque: 325 Nm
