95280
din95280
D2S+ Round Double Interlocked Profile
Leakage Rate: 9.0 L min-1dm-2 @0.30bar
Flexibility/Force: 60-250 N (±23mm from mid position)
Axial Extension: > = 30% (> = 90mm)
Maximum Torsion: 5° (@ compressed length of 300mm)
Max temperature 550 degrees
-------------------------------------------------------------------
EAN 5700760129854
Tariff number 8708923500
Material Stainless Steel
Net weight [kg] 4.98

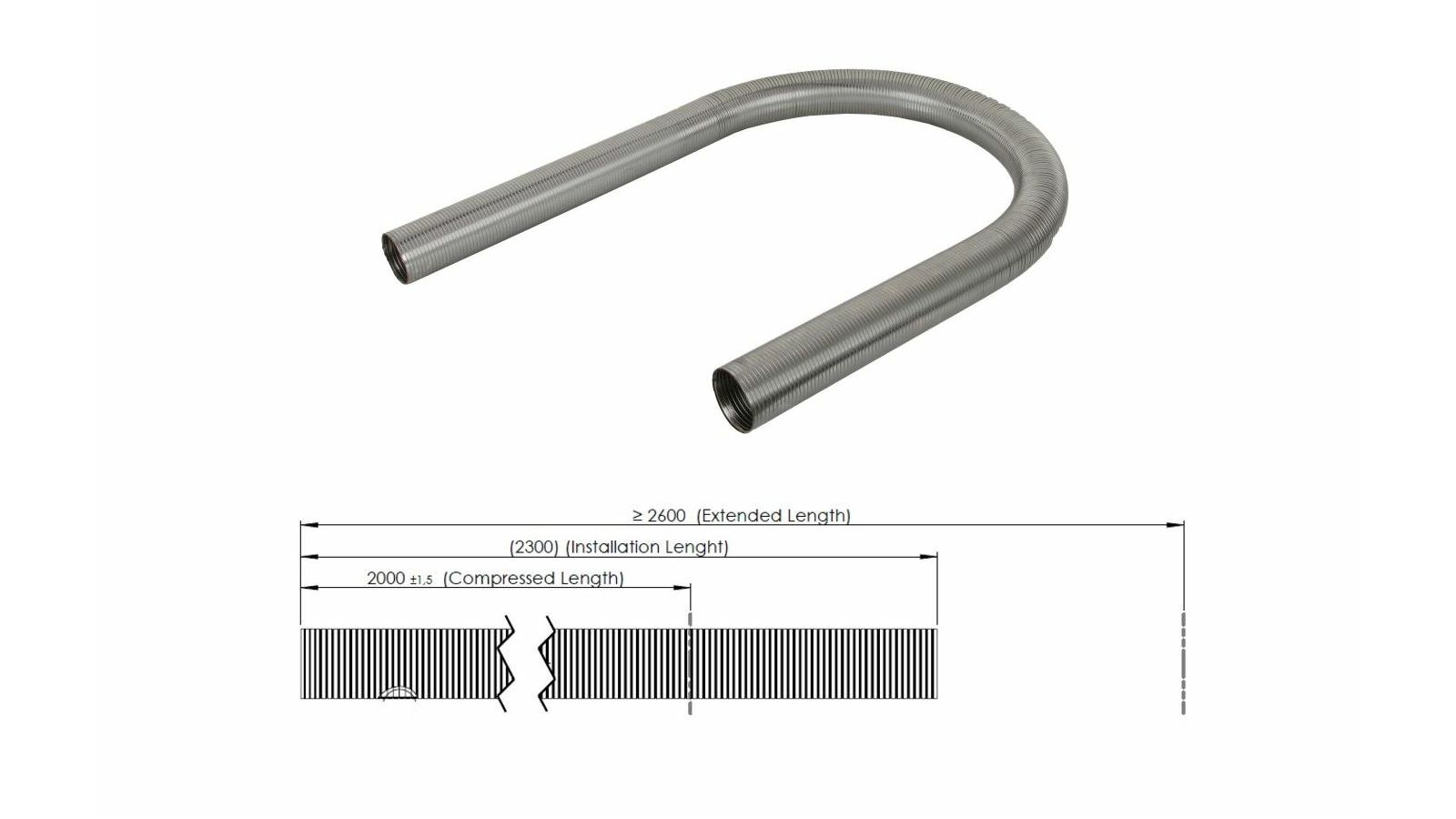

Extended Length 2600
Inner diameter [mm] 80/81.00
Installation Length 2300
Outer diameter [mm] 84.40
Inner diameter [inch] 3 1/8
Outer diameter [inch] 3 1/3
Height [mm] 90.00
Width [mm] 90.00
Length [mm] 2000.00
Weight [LBS] 10.98
Height [inch] 3.54
Width [inch] 3.54
Length [in] 78.74
