95270
din95270

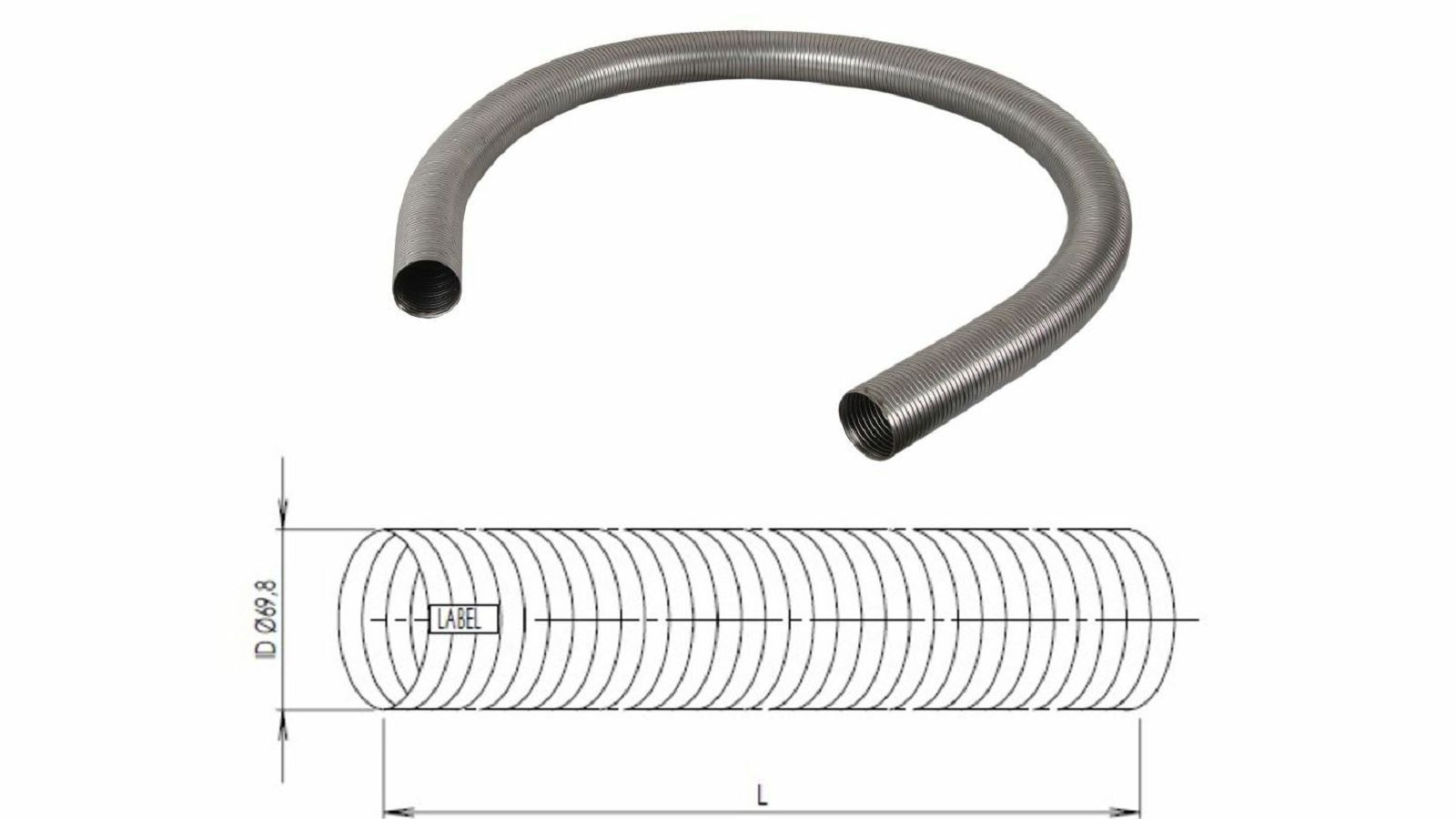

D2S Round Double Interlocked Profile
Leakage Rate: 15.0 L min-1dm-2 @0.15bar
Flexibility/Force: 60-300 N (± 15mm from mid position)
Axial Extension : > = 20% (>= 60mm)
Maximum Torsion: 2° (@ compressed length of 300mm)
Max temperature 550 degrees
-------------------------------------------------------------------
EAN 5700760129830
Tariff number 8307100090
Material Stainless Steel
Net weight [kg] 4.47
Inner diameter [mm] 70.00
Outer diameter [mm] 74.00
Extended Length 2600
Inner diameter [inch] 2 3/4
Installation Length 2300
Outer diameter [inch] 2 9/10
Height [mm] 75.00
Width [mm] 75.00
Length [mm] 2010.00
Weight [LBS] 9.85
Height [inch] 2.95
Width [inch] 2.95
Length [in] 79.13
