95210
din95210

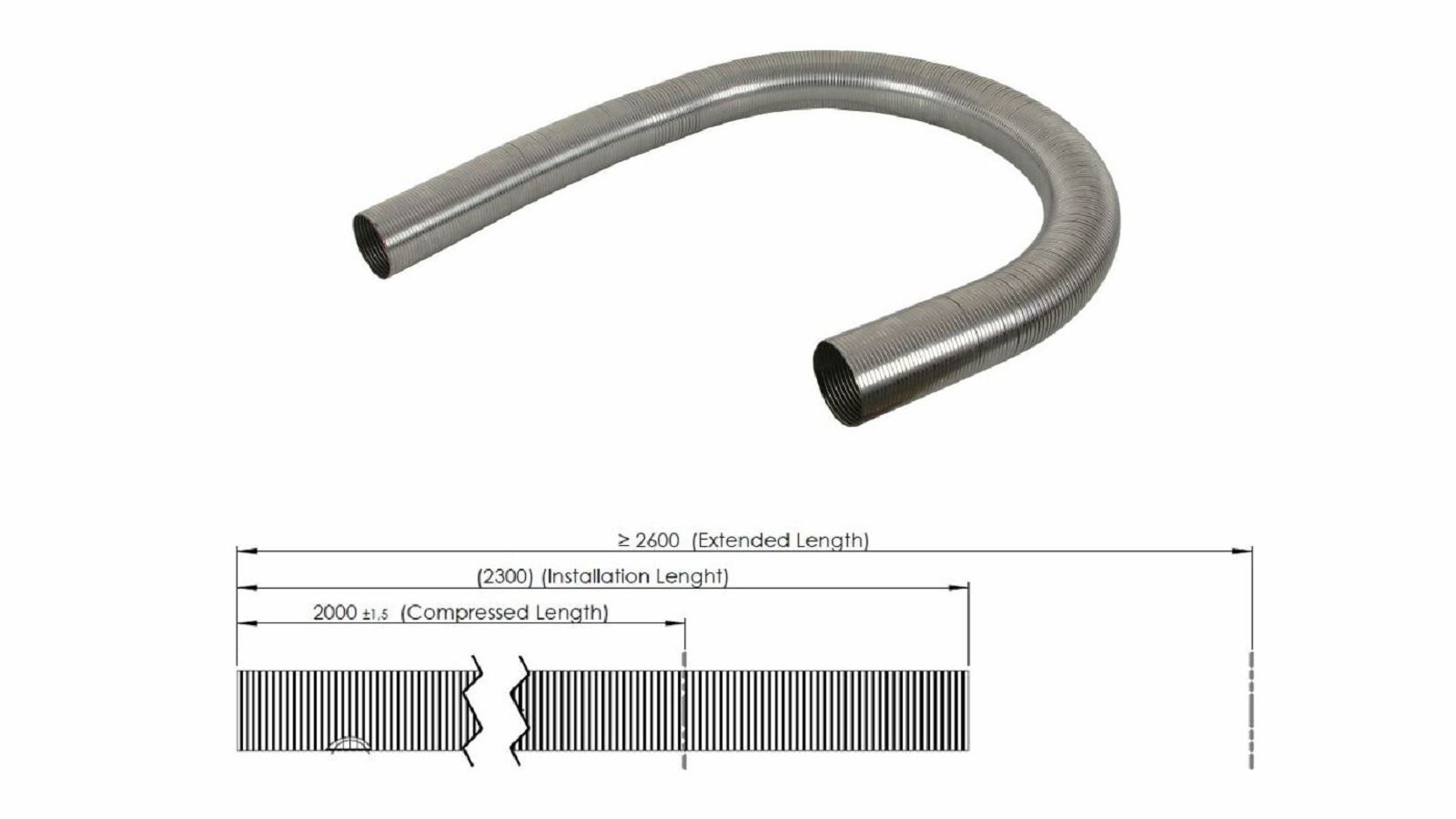

D2S+ Round Double Interlocked Profile
Leakage Rate: 9.0 L min-1dm-2 @0.30bar
Flexibility/Force: 60-250 N (±23mm from mid position)
Axial Extension: > = 30% (> = 90mm)
Maximum Torsion: 5° (@ compressed length of 300mm)
Max temperature 550 degrees
-------------------------------------------------------------------
EAN 5700760129649
Tariff number 8307100090
Material Stainless Steel
Net weight [kg] 6.98
Extended Length 2600
Inner diameter [mm] 110.00
Installation Length 2300
Outer diameter [mm] 113.40
Inner diameter [inch] 4 3/8
Outer diameter [inch] 4 1/2
Height [mm] 113.40
Width [mm] 113.40
Length [mm] 2000.00
Weight [LBS] 15.39
Height [inch] 4.46
Width [inch] 4.46
Length [in] 78.74
