CRIJEVO/CIJEV EBERSPACHER, WEBASTO, promjer:100/101mm/105mm, dužina:2000mm - DINEX

95200
din95200

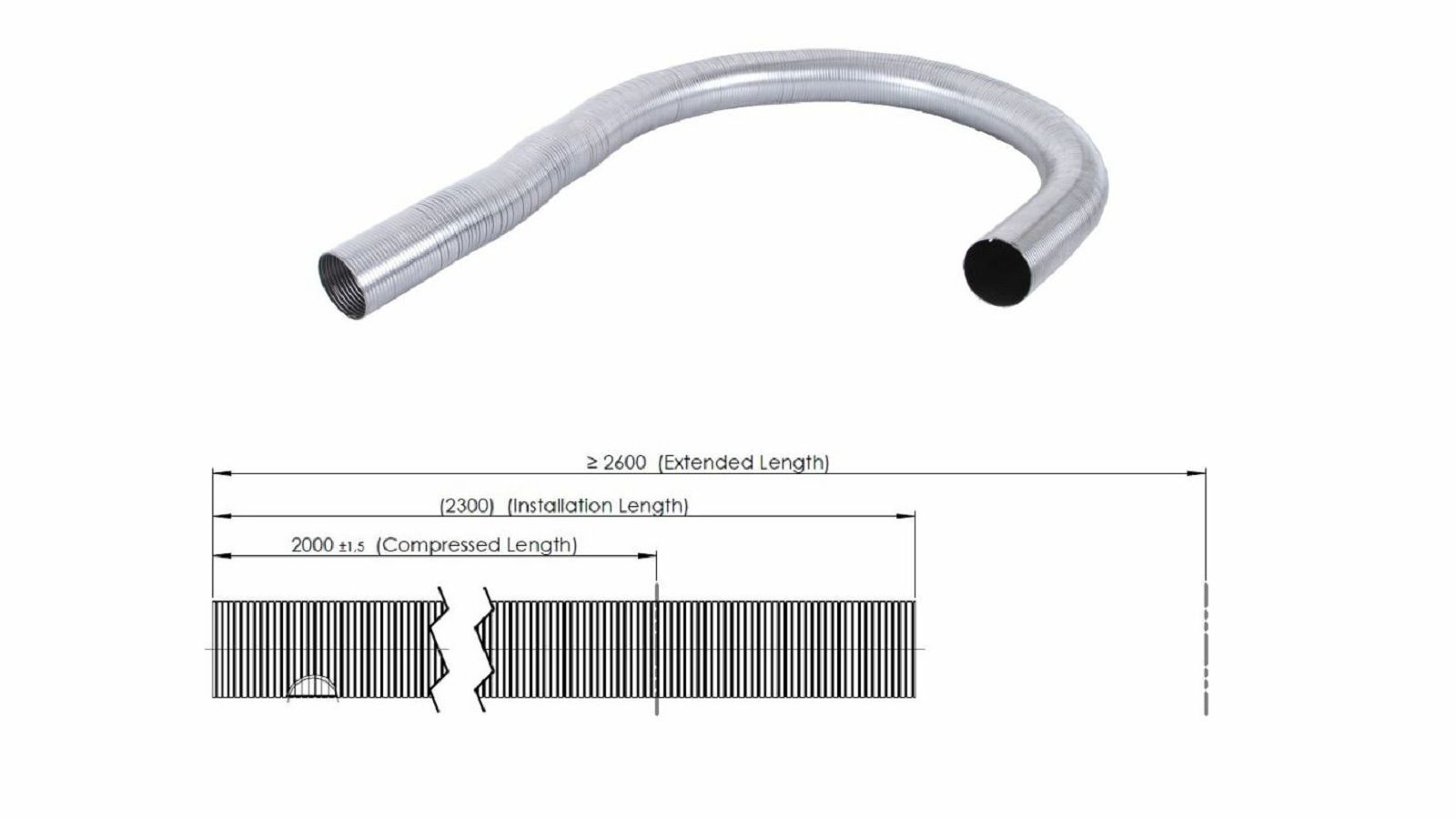

D2S+ Round Double Interlocked Profile

Leakage Rate: 9.0 L min-1dm-2 @0.30bar

Flexibility/Force: 60-250 N (±23mm from mid position)

Axial Extension: > = 30% (> = 90mm)

Maximum Torsion: 5° (@ compressed length of 300mm)

Max temperature 550 degrees

-------------------------------------------------------------------
EAN 5700760129601
Tariff number 870892350000
Material Stainless Steel
Net weight [kg] 7.74
Diameter [mm] 0.00
Extended Length 2600
Inner diameter [mm] 100/101.00
Installation Length 2300
Outer diameter [mm] 104.40
Outer diameter [inch] 4 1/8
Inner diameter [inch] 3 7/8
Height [mm] 108.00
Width [mm] 108.00
Length [mm] 2000.00
Weight [LBS] 17.06
Height [inch] 4.25
Width [inch] 4.25
Length [in] 78.74
