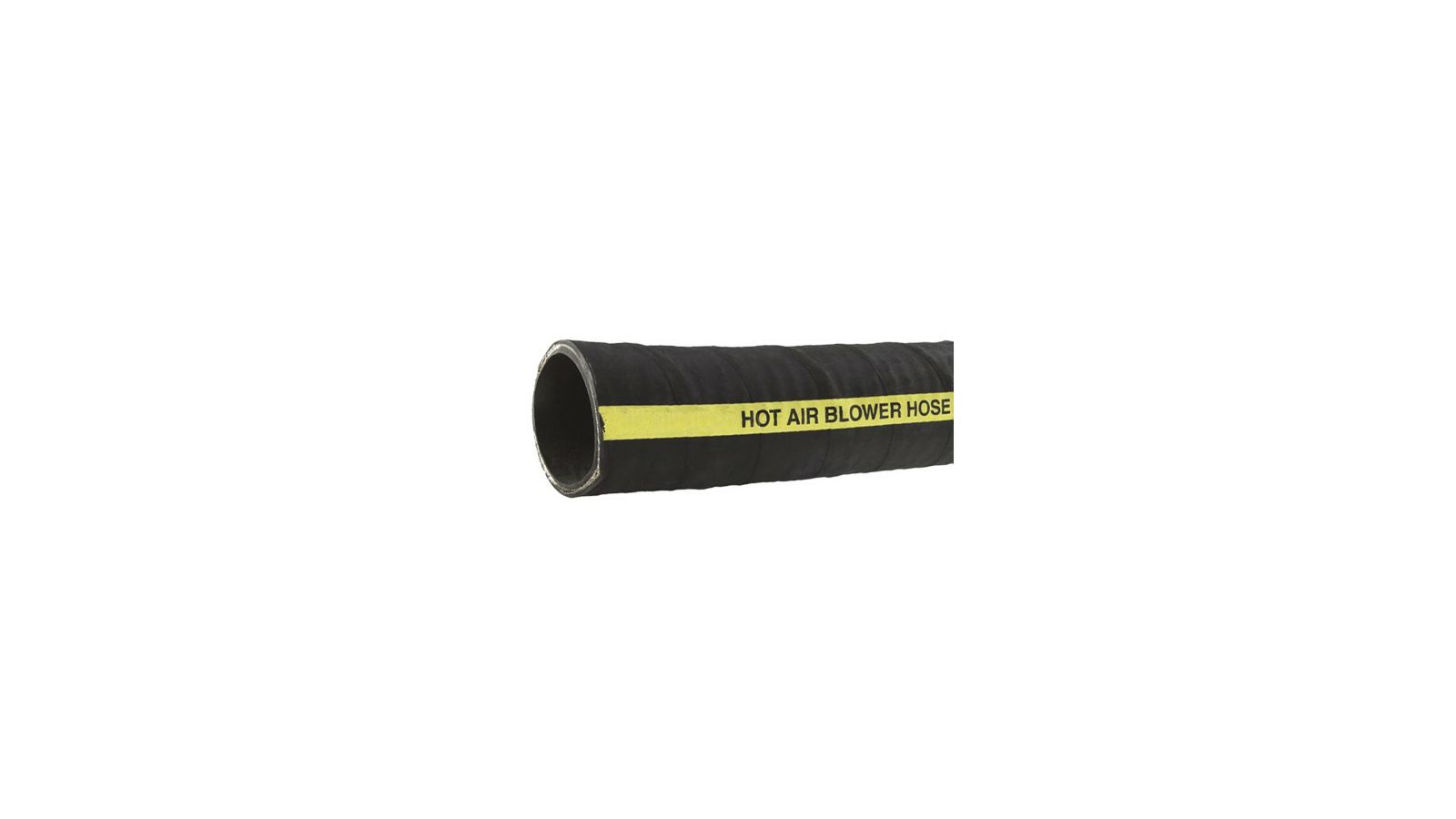

CRIJEVO ZA VRUČI ZRAK, UNUTARNJI FI- 51,2mm, VANJSKI FI-65mm - 6Bar, 180°C MAX - GOODYEAR

10LHBS050BLK827
65000033100
36040

use with compressors and compressed air systems with high temperatures, such as when unloading silo vehicles

Bending radius (mm)
305

Braiding
PVC spiral

Brand
ContiTech

Burst pressure (bar)
18

Color exterior
black

Color interior
black

Electrically conductive
no

Form surface
slightly wavy

Length per roll (m)
40

Material ceiling
EPDM

Material core
EPM®

Material pressure carrier
polyester yarn insert
steel wire spiral

Name hose
Plicord Hot Air®

Operating pressure (bar)
6

PU
by the meter

Ref. no.
ContiTech 10LHBS050BLK827

Temperature range from (°C)
-29

Temperature range to (°C)
180

Usage details medium
hot air
compressor air

Version
pressure hose

Wall thickness (mm)
6,9

Weight (kg)
1,73

o external (mm)
65

o internal (inches)
2

o internal (mm)
51,2
