3787201
100832 SCHWARZMULLER
61100031300
---------
Weight (kg)
2,52
Power (W)
17
Brand
Parker
Operating pressure (bar)
350
Pressure connection (inches)
3/4 inch internal thread
Suction connection
clamped
Leakage oil connection (inches)
1/4 internal thread
Voltage solenoid valve (V)
24
Electrical connection
Deutsch plug connection DT04-2P-V
Operating mode
normally open
Status zero position
open
For type pump
F1
For type pump
T1
For type pump
WHP

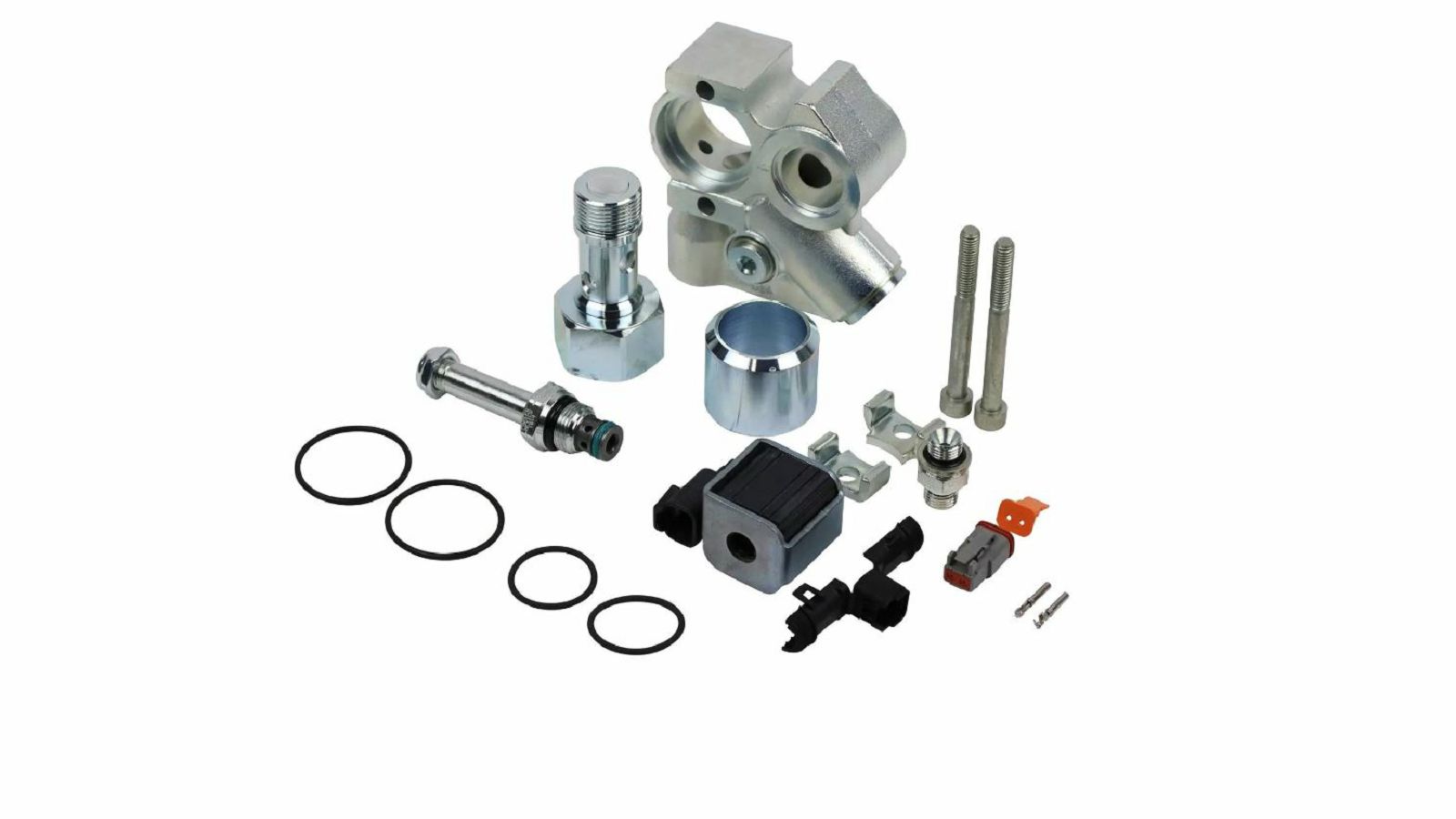

bypass valve for direct montage on the connection cover of the pump use in hydraulic applications that are operated while driving
(e.g. roll-off tippers, road and municipal vehicles)
The bypass valve connects the suction and pressure connection of the pump.
only a small amount of oil flows through the system to the tank
The solenoid valve can only be activated and deactivated when the system is unloaded (working pressure below 20 bar)
