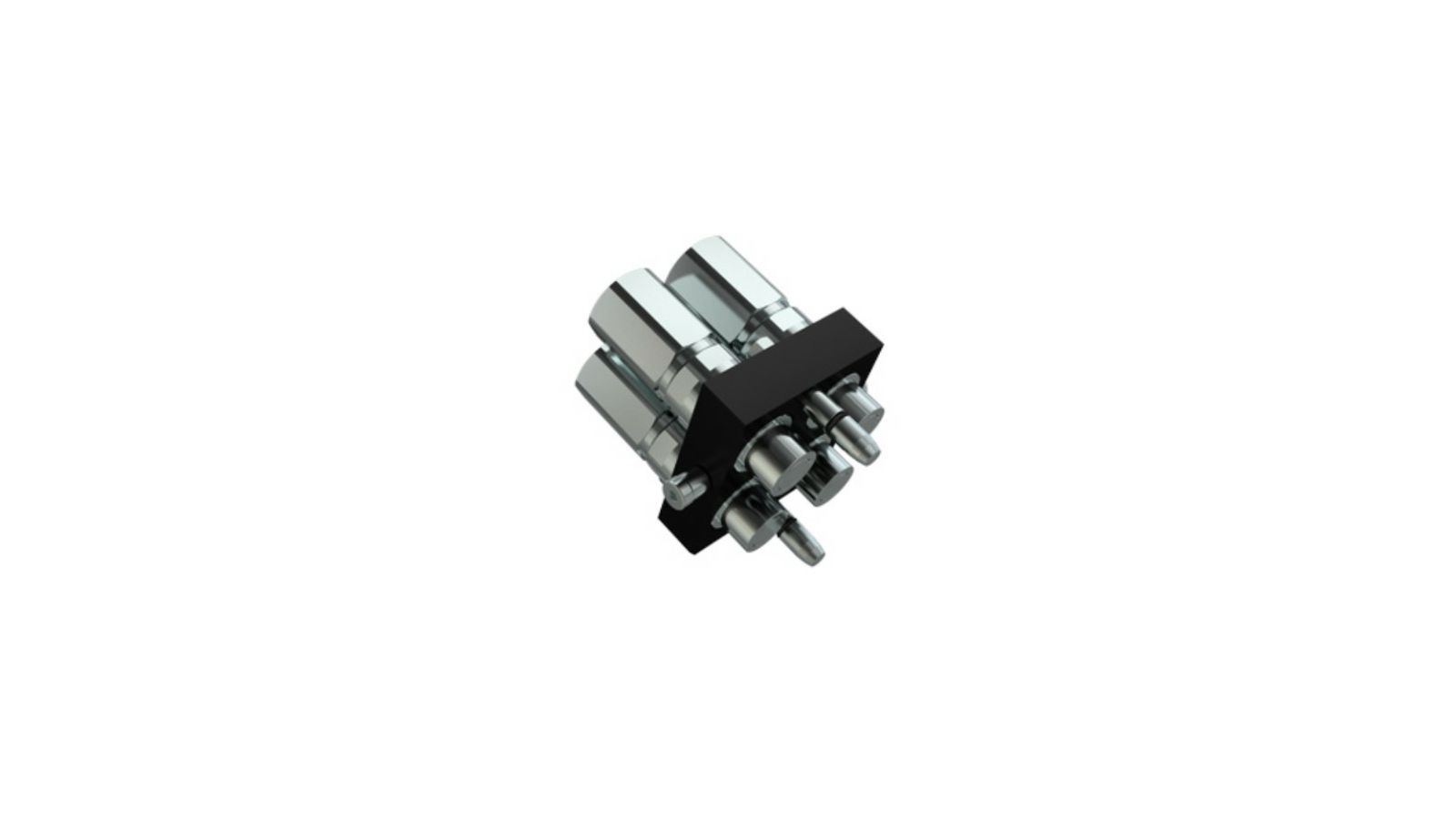

BRZA HIDRAULIČNA SPOJNICA TIP P412, MUŠKA, 4 X 3/4" - FASTER (GORNJI DIO)

3P412-4-34G M C
3P412-4-34GMC
3P412434GMC

ŽENSKI DIO:
3P412-4-34G F C
3P412-4-34GFC
3P412434GFC
62300579500

------------

Brand
Faster

Can be coupled under residual pressure
yes

Certified according to ISO
yes

Connection type
internal thread

Coupling situation
can be coupled under residual pressure

Coupling type
flat sealing

Electrical connections
without

Material housing
aluminum/steel

Max. flow rate (l/min)
105

Nominal diameter (mm)
20

Operating pressure (bar)
250

Sealing
60° inner cone

System
Faster

Thread internal (inches)
G 3/4

Type
P412

Version multi-coupling
4-fold

Weight (kg)
4,45
