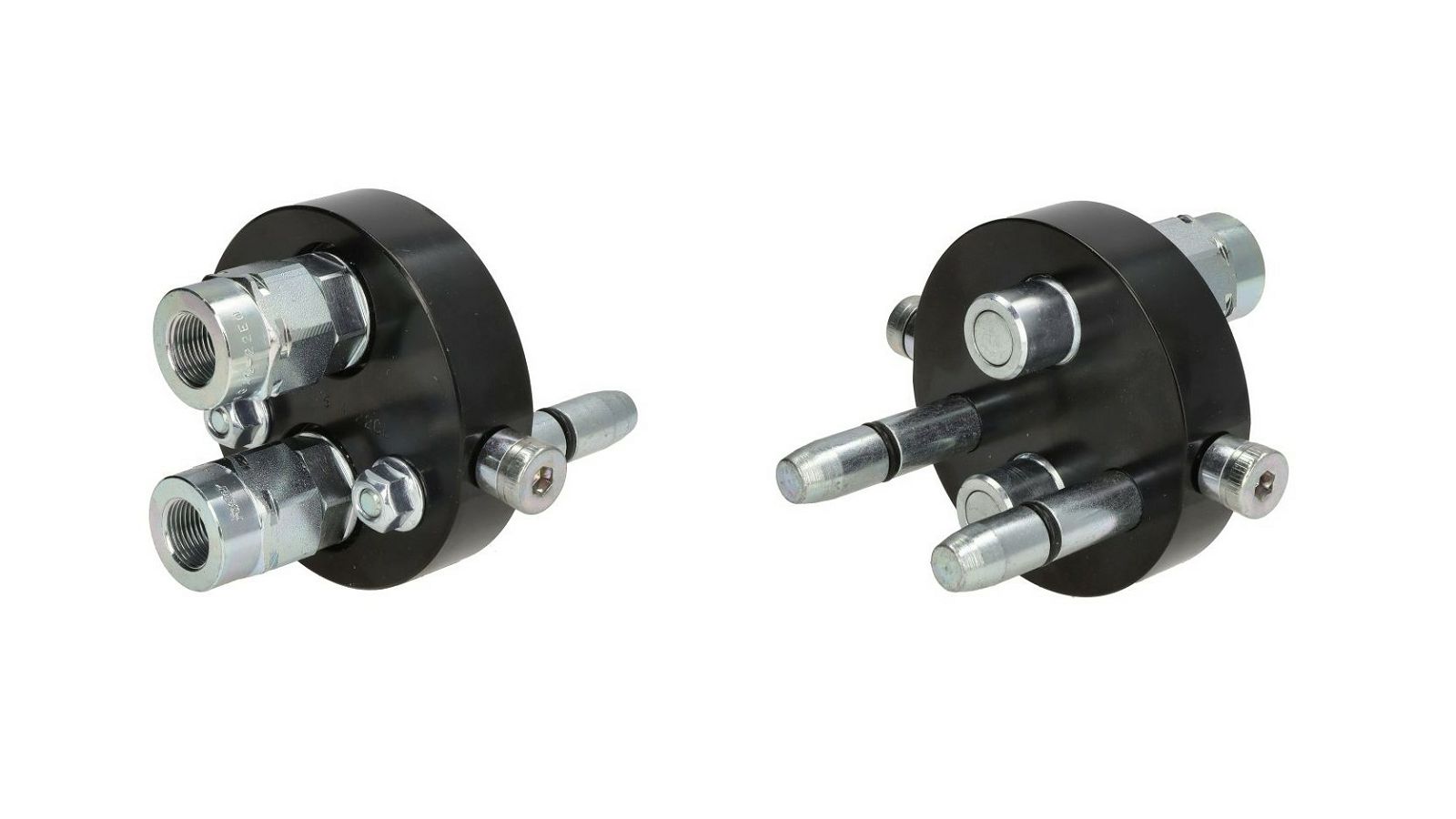

BRZA HIDRAULIČNA SPOJNICA TIP P206, MUŠKA, 2 X 3/8inch 40l/min. - FASTER

2P206-2-38G M C
2P206-2-38GMC
2P206238GMC
62300077200


ŽENSKI DIO:
2P206-2-38G F C
2P206-2-38GFC
2P206238GFC

----------------

2 x Couplings 3/8":
BSPP 3/8" FEMALE - ISO 1179-1

Flow Rate:
40 (l/min) at 0.2 MPa

Temperature:
-25 °C to 100 °C

Seals:
NBR & PUR

Weight:
896 g

Brand
Faster

Can be coupled under residual pressure
no

Certified according to ISO
yes

Connection type
internal thread

Coupling situation
cannot be coupled under residual pressure

Coupling type
flat sealing

Electrical connections
without

Info 1
short standard connection

Material housing
aluminum/steel

Max. flow rate (l/min)
40

Nominal diameter (mm)
10

Operating pressure (bar)
250

Sealing
60° inner cone

Thread internal (inches)
G 3/8

Type
P206

Version multi-coupling
2-fold

Weight (kg)
1,12
