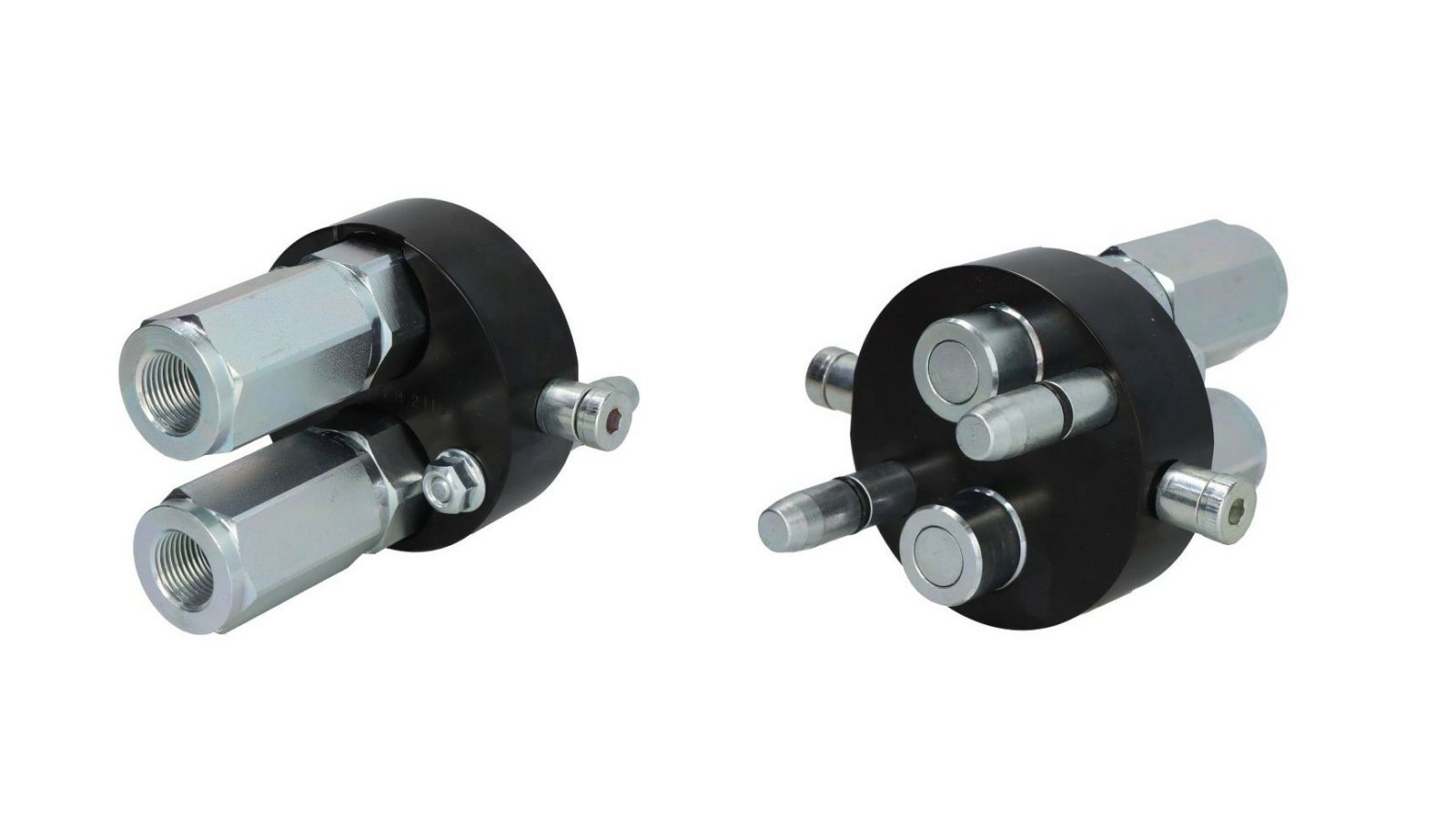

BRZA HIDRAULIČNA SPOJKA TIP P208, 2 X 3/4 - FASTER

3P208-2-34G M C
3P208-2-34GMC
3P208234GMC
62300622100

--------------

2 x Couplings 1/2":
BSPP 3/4" FEMALE - ISO 1179-1

Flow Rate:
70 (l/min) at 0.2 MPa

Temperature:
-25 °C to 100 °C

Seals:
NBR & PUR

Weight:
1647 g

Brand
Faster

Can be coupled under residual pressure
yes

Certified according to ISO
yes

Connection type
internal thread

Coupling situation
can be coupled under residual pressure

Coupling type
flat sealing

Electrical connections
without

Material housing
aluminum/steel

Max. flow rate (l/min)
70

Nominal diameter (mm)
12,5

Operating pressure (bar)
250

Sealing
60° inner cone

System
Faster

Thread internal (inches)
G 3/4

Type
P208

Version multi-coupling
2-fold

Weight (kg)
1,784
