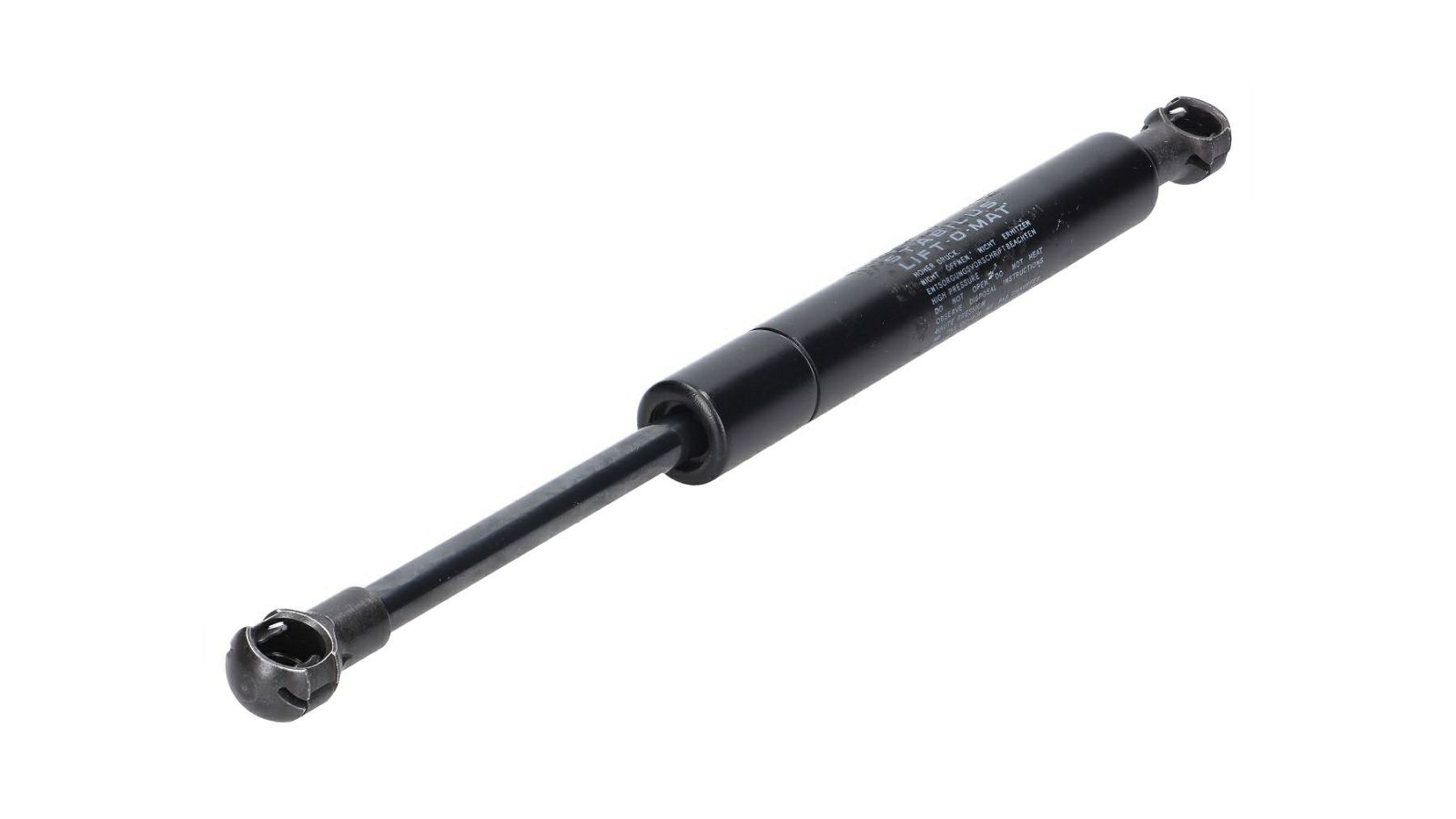

AMORTIZER TRAKTOR JOHN DEERE, LMAX-245mm, HOD-71mm, 350N - STABILUS

3294XM
AL174358
AL151278
STA3294XM
AL174358-JD
KR23749
MGS033
VPM1820
26100026000

-------------

Function
Lift-O-Mat

Installation location
rear window
door

Max. length (mm)
245

Min. length (mm)
170

Mounting cylinder side
ball socket

Mounting piston size
ball socket

Spring tension (N)
350

Stroke (mm)
71

Usage
agricultural machine
cab and passenger cabin

Weight (kg)
0,143

o internal cylinder side (mm)
10

o internal piston side (mm)
10
