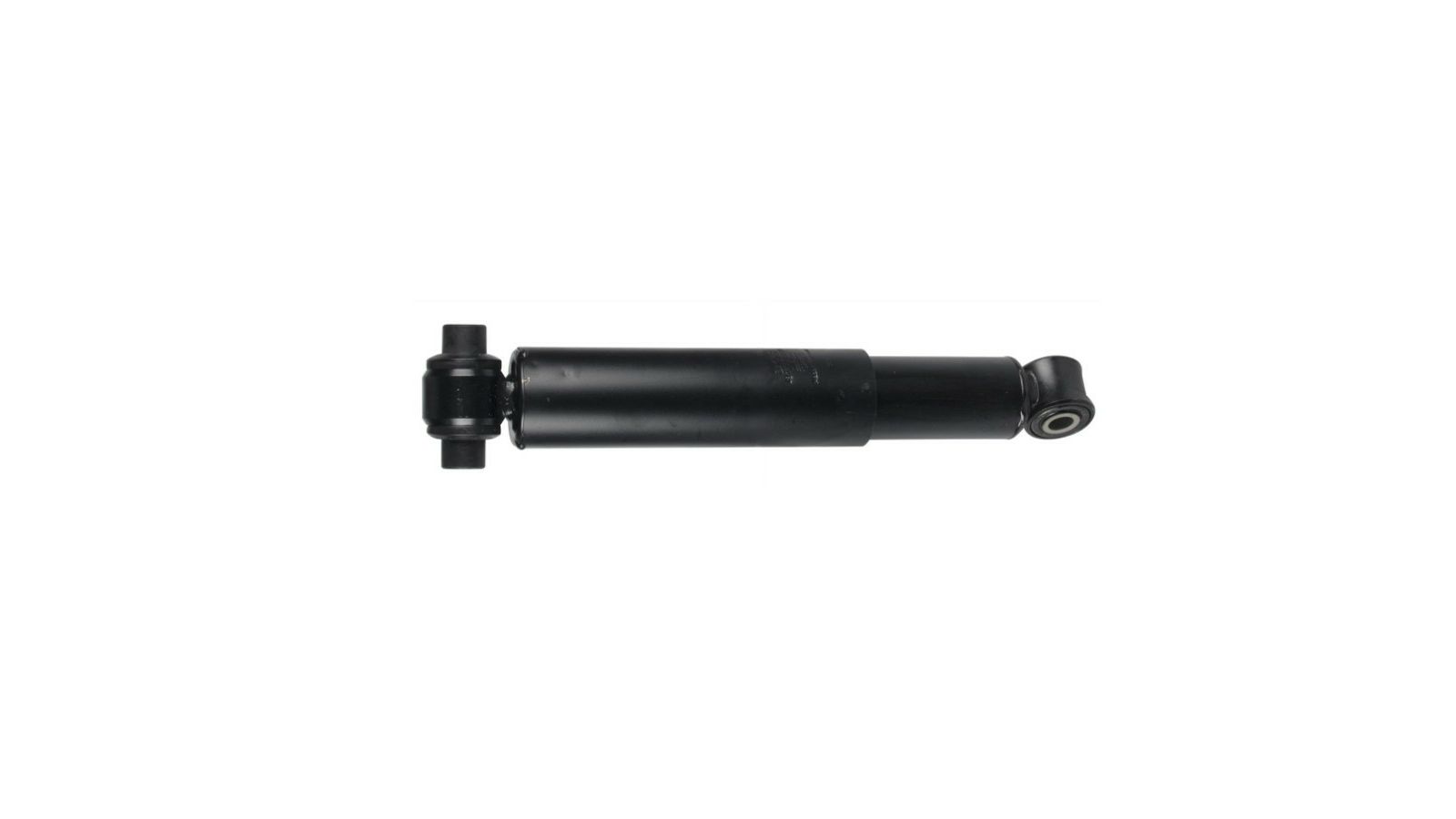

AMORTIZER DAF XF106, CF, XD, XG, ZADNJI, 47x71, Fi16/20 - SACHS

317874
T5416
1902305
1924212
90T-3253
T5416

----------

Minimum length (E) (mm)
465.0

Maximum length (F) (mm)
705

Width (H) (mm), end 1
105.00

Width (D) (mm), end 2
50.00

Outer tube O (A) (mm)
75

Inner tube O (B) (mm)
65

Eye O (G) (mm), end 1
16.0

Eye O (C) (mm), end 2
20.0

Lower mounting type
Bottom eye

Upper mounting type
Top eye

Stroke (mm)
240.0
