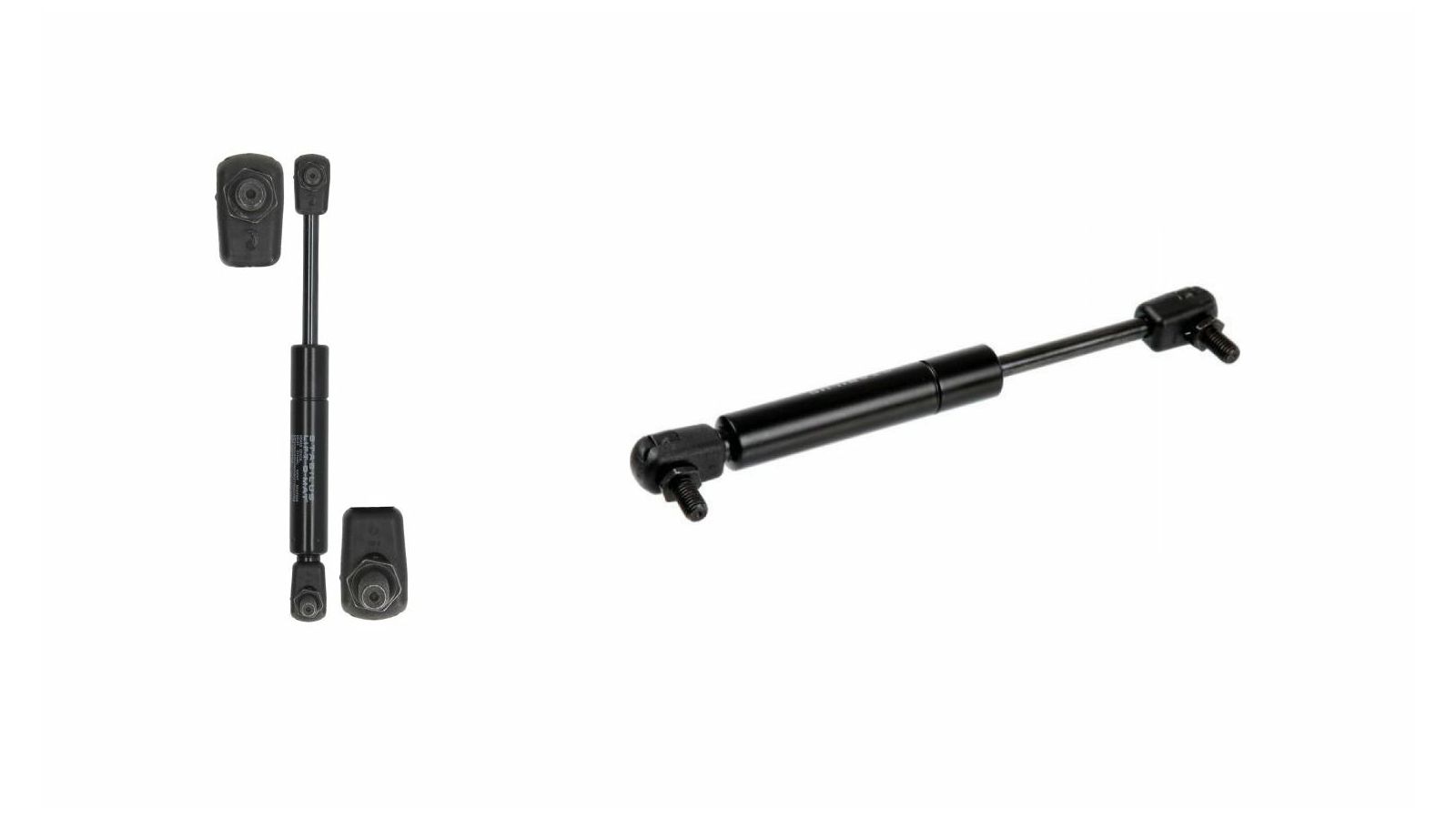

AMORTIZER 500N, LMAX-205, LMIN-147mm, HOD-58mm - STABILUS

970816
STA970816
Case 1-99-976-061
Case 1-34-621-099
Case 1-34-621-098
134621099 CASE
199976061 CASE
134621098

-----------

Weight (kg)
0,18

Brand
Stabilus

Stroke (mm)
58

Spring tension (N)
500

Min. length (mm)
147

Max. length (mm)
205

Usage
cab and passenger cabin

Thread piston side metric
M 8

Thread cylinder side metric
M 8

Function
Lift-O-Mat

Installation location
door

Mounting piston size
ball joint

Mounting cylinder side
ball joint
