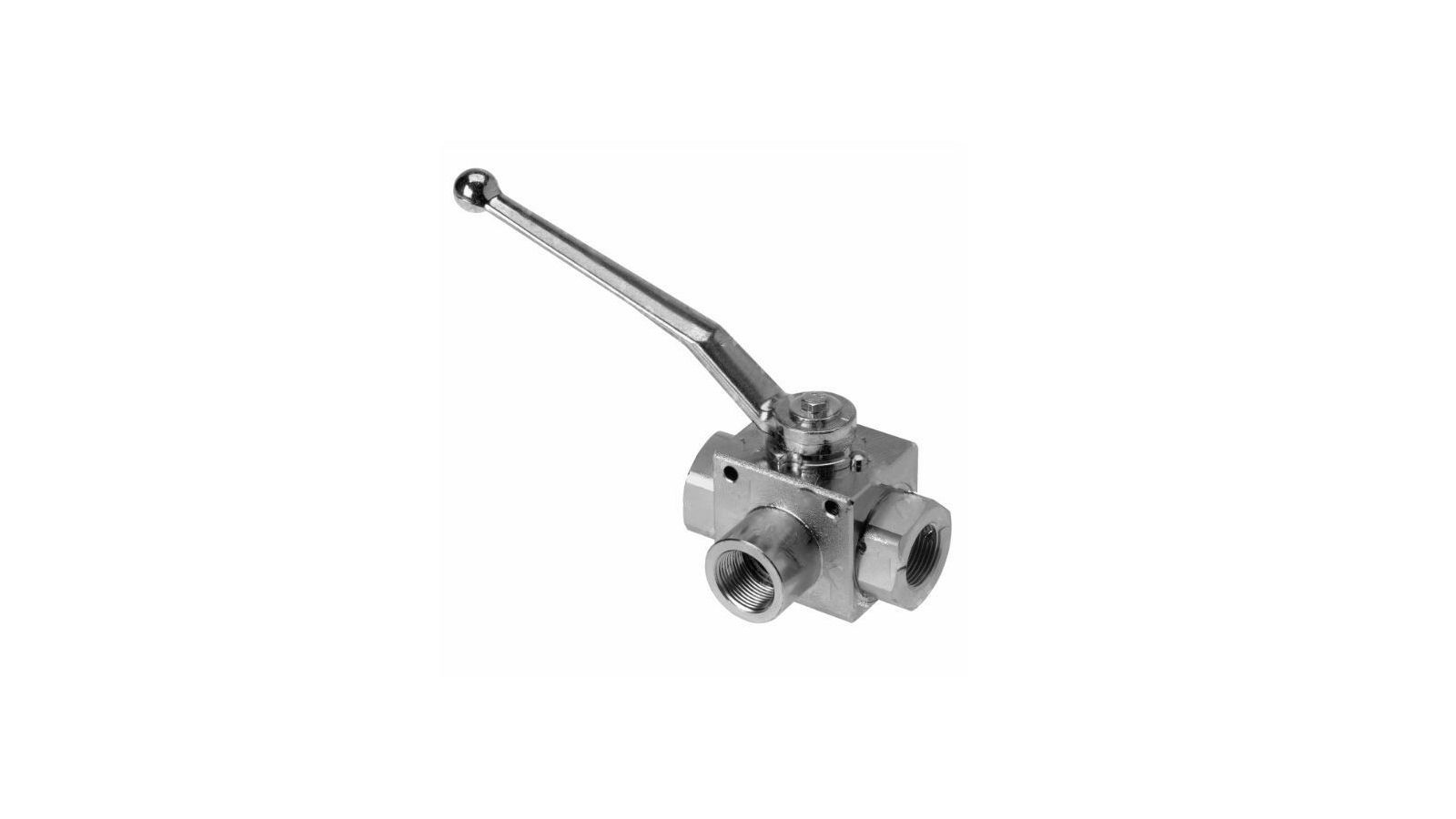

3/2 WAY VENTIL, G1/2, max 350Bar, S RUPAMA ZA PRIHVAT

BK3G121311231L90BO
62300037000

-----------

Shifting travel
negative overlap

Ball bore form
L

Mounting bore (mm)
6,5

Width across flats square (mm)
9

Width across flats line connection (mm)
30

Type
3/2-way

Weight (kg)
0,7

Surface
galvanized

Thread internal C (inches)
G 1/2

Material
steel

Brand
Pister

Max. operating pressure (bar)
350

Thread internal B (inches)
G 1/2

Length (mm)
85

Thread internal A (inches)
G 1/2

Nominal diameter (mm)
13
