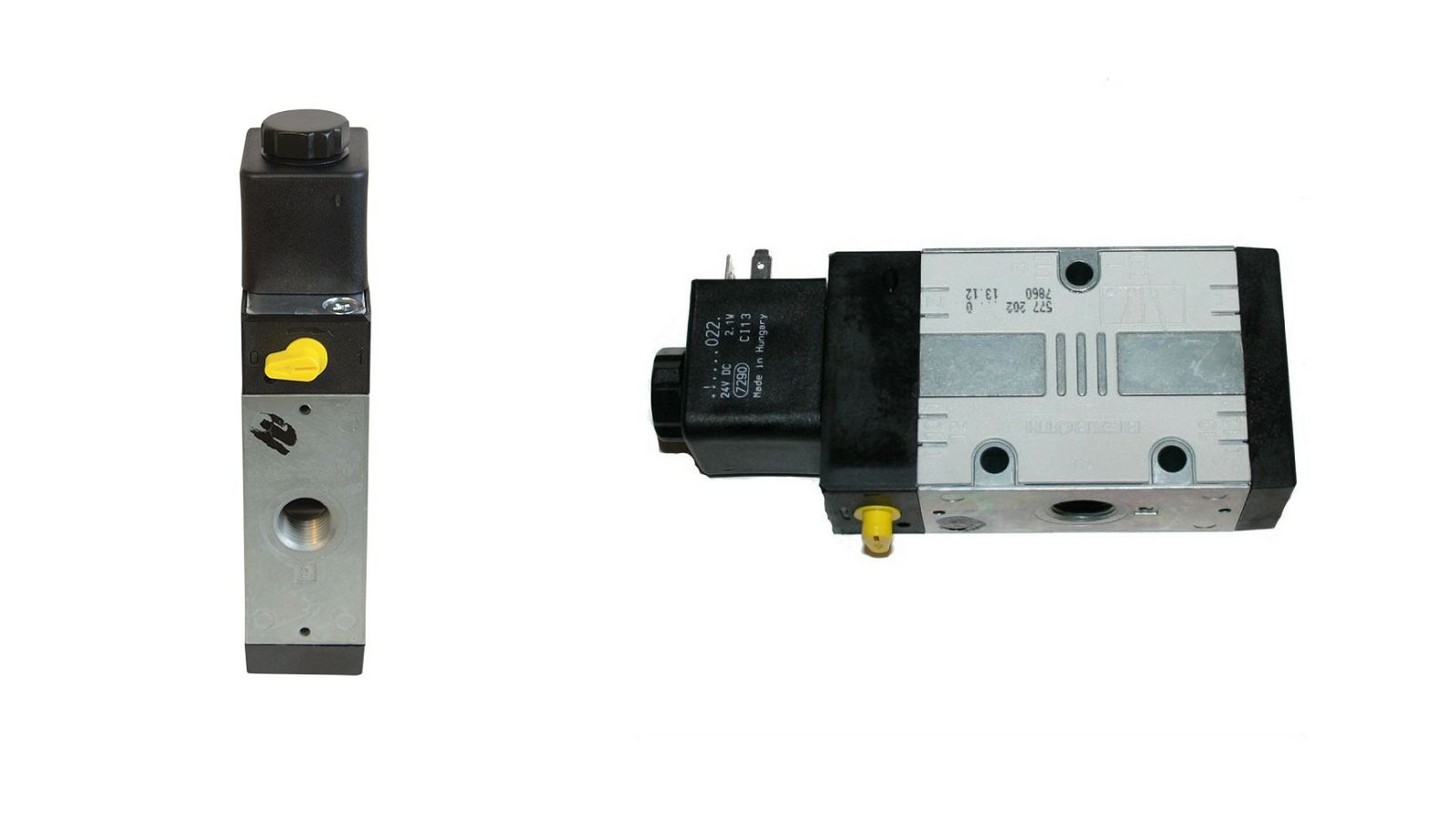

3/2 MAGNETNI VENTIL, 24V - WABCO/AVENTICS

5772020220
FAUN99708410107
FAYMONVILLE07149
FAYMONVILLE7149
LANGENDORF1121368
NEOPLAN110284030
NEOPLAN11017561
PACCAR0908651
SCANIA2089753
5709003W
577.202.022.0
CD07-3/2NC-SR-024DC-I-M014
49820212900

-------------

Actuation
electromagnetic

Connection 1 – power input
M 14x1,5

Connection 2 – power output
M 14x1,5

Connection 3 – atmosphere
M 14x1,5

Fastening material
without

Max. operating pressure (bar)
10

Mounting
3 housing holes 5.5 mm

Switch function
3/2-way

Switch position 1
2 connected to 3

Switch position 2
1 connected to 2

Voltage (V)
24

Weight (kg)
0,553
