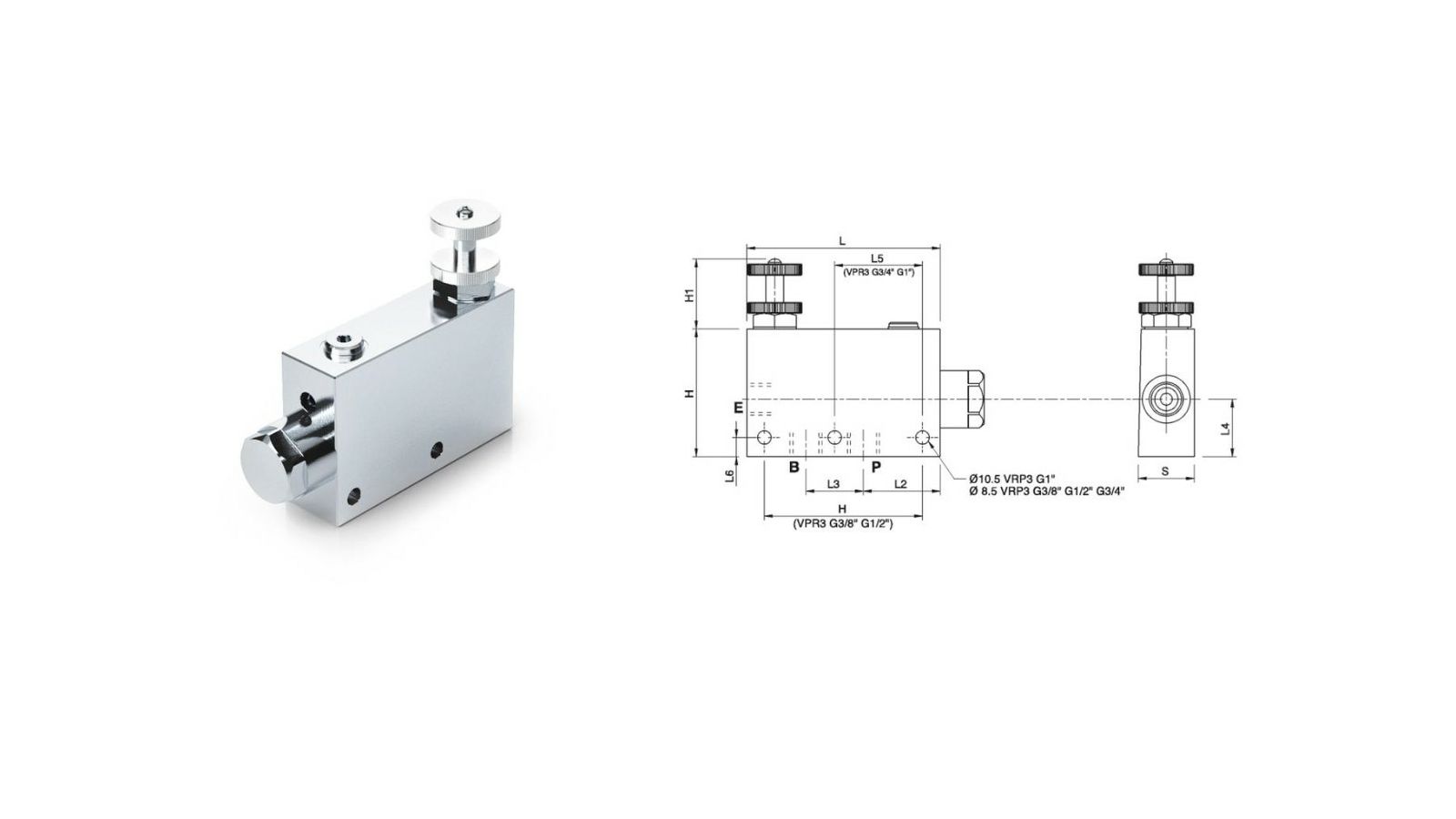

3-WAY REGULACIJSKI VENTIL PROTOKA, 3/8'' BSP, 60 L/min, 350Bar

V1060

U RELACIJI: VPR3, V1070, V1080, V1090

61100462500

-----------

The priority flow control valve allocates the input oil quantity (E- pressure input) to the oil port P (controlled quantity) depending on the setting of the adjustment dial and keeps it constant.
The excess oil quantity can be used at connection B (additional usable quantity - loadable) for further functions. A return flow from P to E is limited by the selected opening of the choke and is not pressure balanced.
Reverse flow from B is not permissible and will cause damage to the valve or the system.



Connection pressure input (inches)
G 3/8 internal thread

Connection pressure output (inches)
G 3/8 internal thread

Connection return flow (inches)
G 3/8 internal thread

Flow range (l/min)
0-50

Material
steel

Max. flow rate (l/min)
60

Max. operating pressure (bar)
350

Setting type
mechanical with rotary knob

Surface
Cr6-free galvanized

Weight (kg)
2,535
