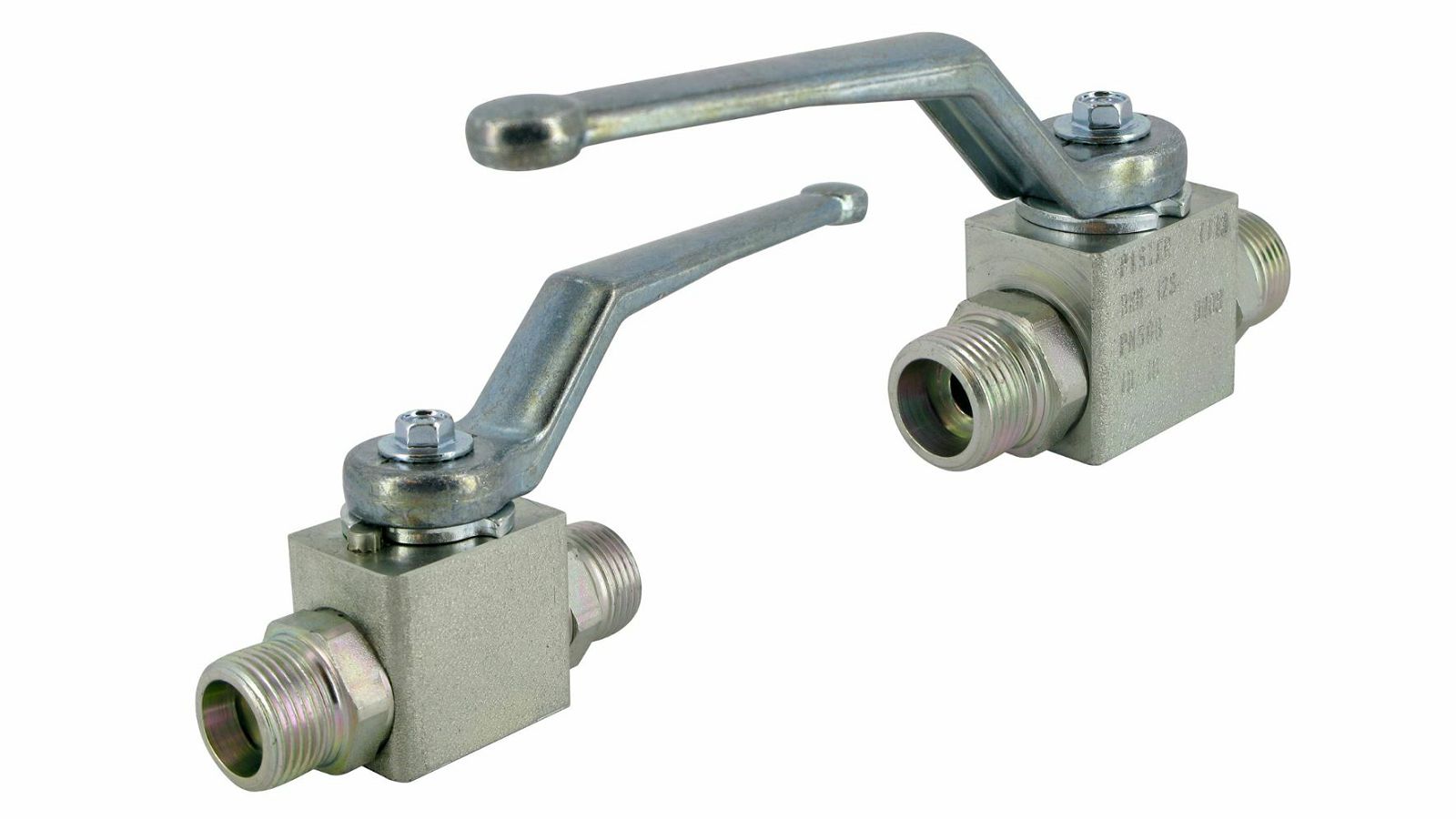

2/2-WAY VENTIL VISOKOG PRITISKA, 8S

BKH08
BKH08S0411131
BKH-08S
BKH08S0411131
M16x1,5/FI8SBKH8S0811131
62300011000

--------

Weight (kg)
0,16

Length (mm)
30,5

Brand
Pister

Thread external A metric
M 16x1,5

Thread external B metric
M 16x1,5

Nominal diameter (mm)
4

Production series
heavy

For FI tube A (mm)
8

For FI tube B (mm)
8

Max. operating pressure (bar)
500

Surface
galvanized

Type
2/2-way

Ball bore form
channel

Mounting bore (mm)
without

Width across flats square (mm)
9

Width across flats line connection (mm)
22

Material
steel

Tube AD series
8 S
