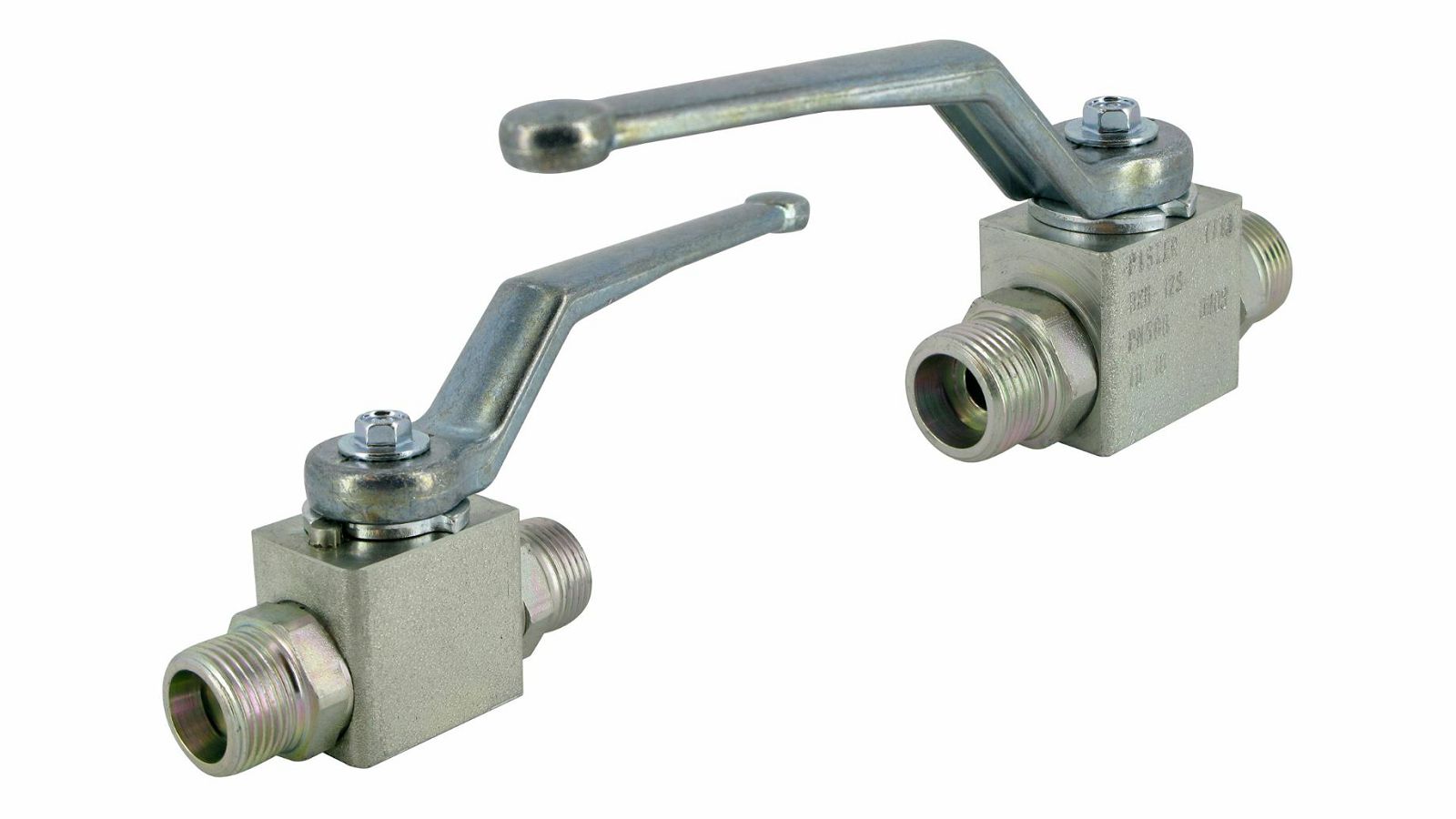

2/2 WAY VENTIL, VISOKI PRITISAK, 20S, M30x2,0/FI20

BKH20S1611231
BKH-20S
62300002200

------------

Thread external A metric
M 30x2

Thread external B metric
M 30x2

Ball bore form
channel

Mounting bore (mm)
without

Width across flats square (mm)
12

Width across flats line connection (mm)
32

Type
2/2-way

Production series
heavy

Weight (kg)
0,722

Surface
galvanized

For FI tube A (mm)
20

For FI tube B (mm)
20

Tube AD series
20 S

Material
steel

Brand
Pister

Max. operating pressure (bar)
500

Length (mm)
43

Nominal diameter (mm)
16
