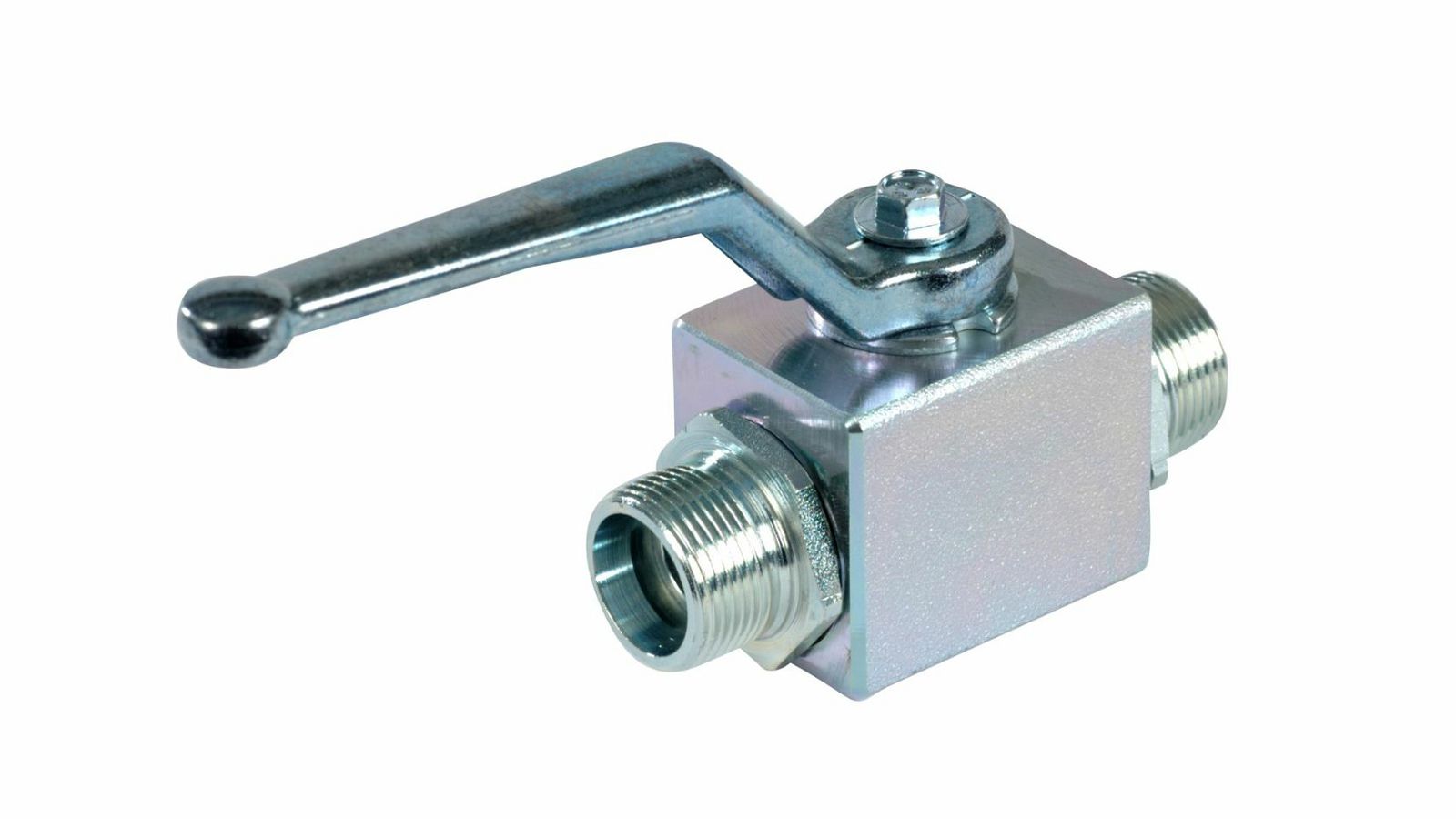

2/2 WAY VENTIL, 6L, VISOKI PRITISAK

BKH6L0411131
BKH-06L
62300010200

--------

Length (mm)
30,5

Thread external A metric
M 12x1,5

Thread external B metric
M 12x1,5

Nominal diameter (mm)
4

Production series
light

For FI tube A (mm)
6

For FI tube B (mm)
6

Surface
galvanized

Type
2/2-way

Ball bore form
channel

Mounting bore (mm)
without

Width across flats square (mm)
9

Width across flats line connection (mm)
22

Material
steel

Tube AD series
6 L

Weight (kg)
0,32

Brand
Pister

Max. operating pressure (bar)
500
